Removal and Installation

REMOVAL
1. REMOVE THESE PARTS:
a. Front door scuff plate LH
b. Cowl side trim LH
c. Lower finish panel assembly
d. Instrument panel finish lower LH panel
e. Center cluster finish panel

2. DISCONNECT HEATER CONTROL CABLES

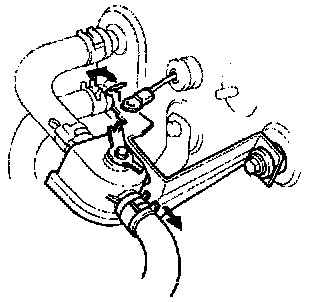

a. Disconnect the water valve control cable from water valve.
b. Remove grommet.

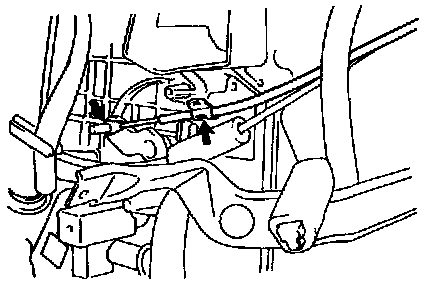

c. Disconnect the air mix control cable from A/C unit.

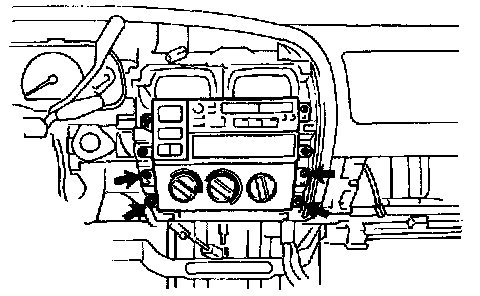

3. REMOVE HEATER CONTROL ASSEMBLY
Remove the 4 screws and pull out the heater control assembly, then disconnect the connectors.

INSTALLATION
Installation is in the reverse order of removal.
