Disassembly and Reassembly

BLOWER UNIT DISASSEMBLY

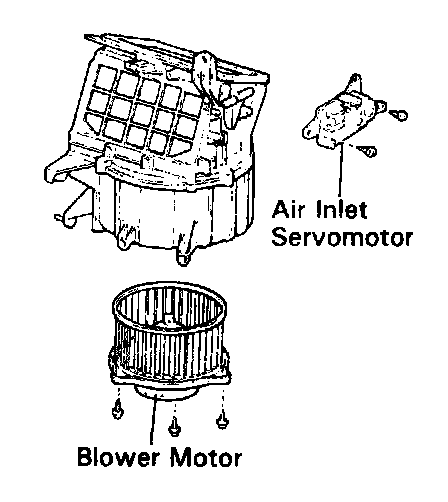

1. REMOVE AIR INLET SERVOMOTOR
Remove the 2 screws and servomotor.

2. REMOVE BLOWER MOTOR
Remove the 3 screws and blower motor.

BLOWER UNIT ASSEMBLY
Assembly is in the reverse order of disassembly.
