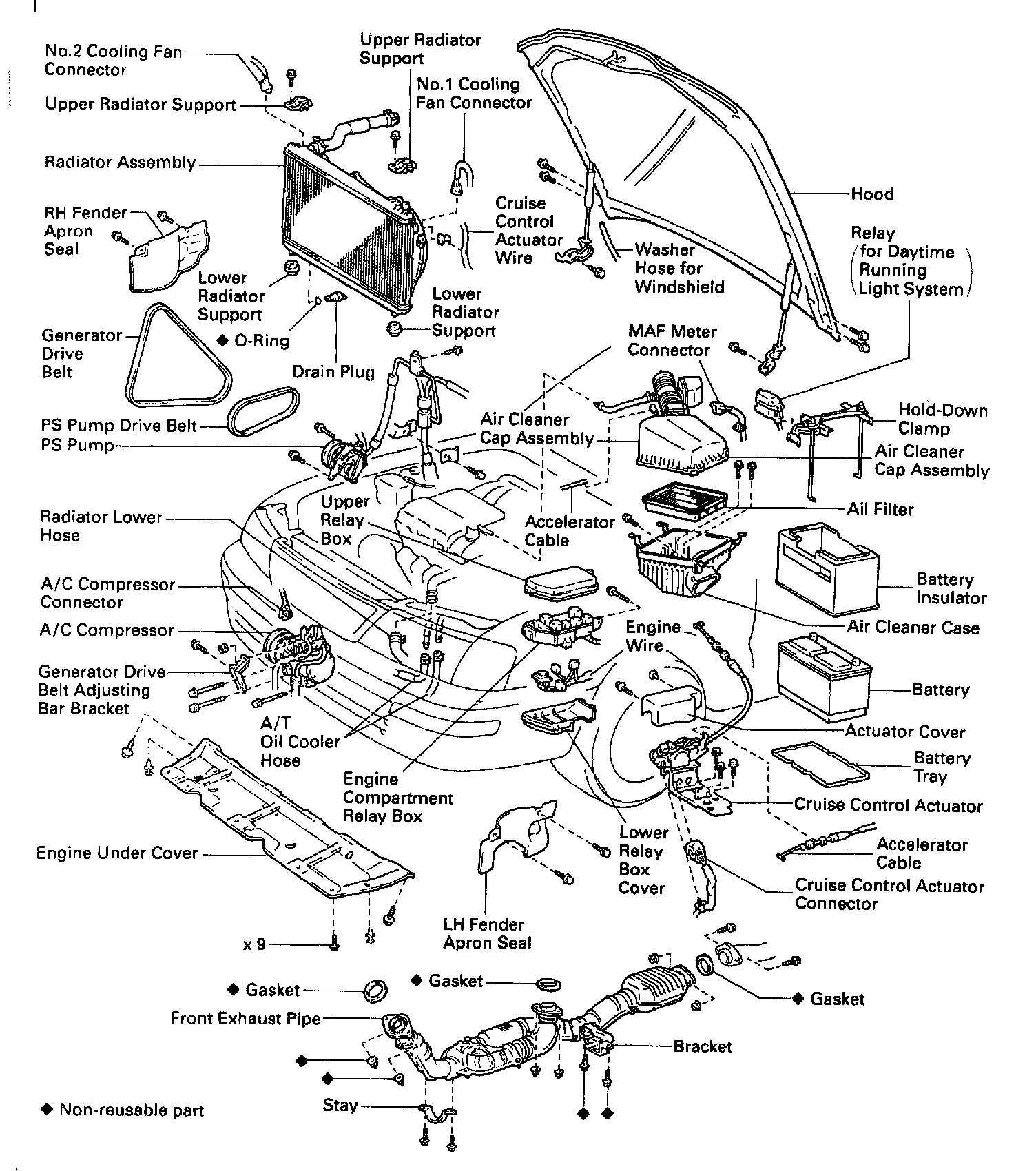

Removal



















1. Disconnect relay block (for daytime running light system) from battery hold-down clamp (Canada).
2. Remove battery and tray.
3. Remove hood.
4. Remove engine under cover.
5. Remove engine fender apron seals.
6. Drain engine coolant.
7. Drain engine oil.
8. Disconnect accelerator cable.
9. Remove air cleaner cap assembly and air cleaner case.
10. Remove cruise control actuator.
11. Remove radiator. Refer to Cooling System.





12. Remove front exhaust pipe.

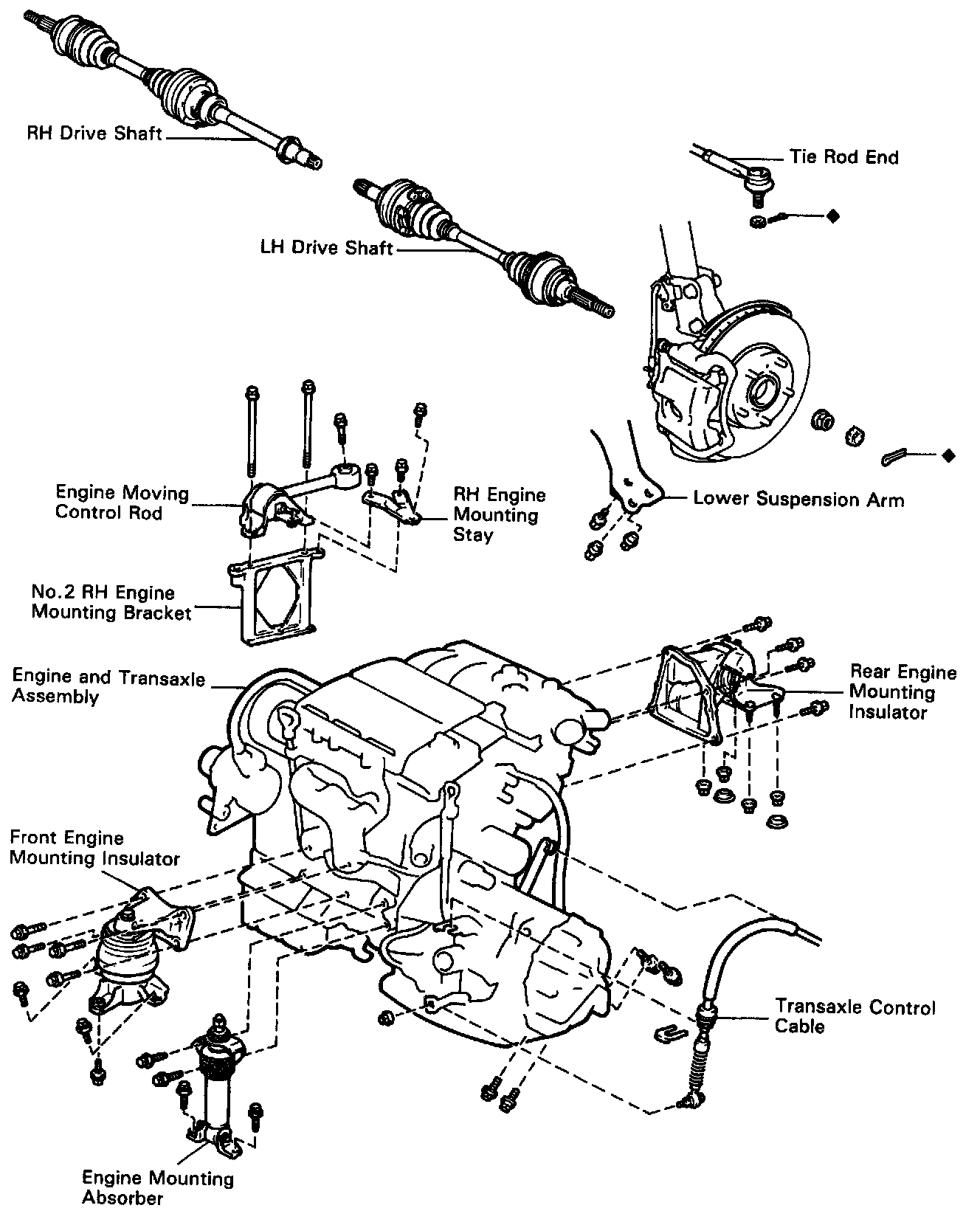

(a) Remove the 2 bolts holding the support stay to the support bracket.

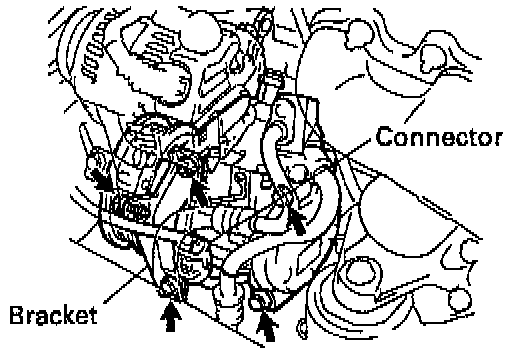

(b) Remove the 2 bolts holding the support bracket to the front frame.
(c) Remove the 2 bolts and 2 nuts holding the front exhaust pipe to the center exhaust pipe.
(d) Remove the 4 nuts holding the front exhaust pipe to the exhaust manifolds.
(e) Remove the front exhaust pipe and 3 gaskets.

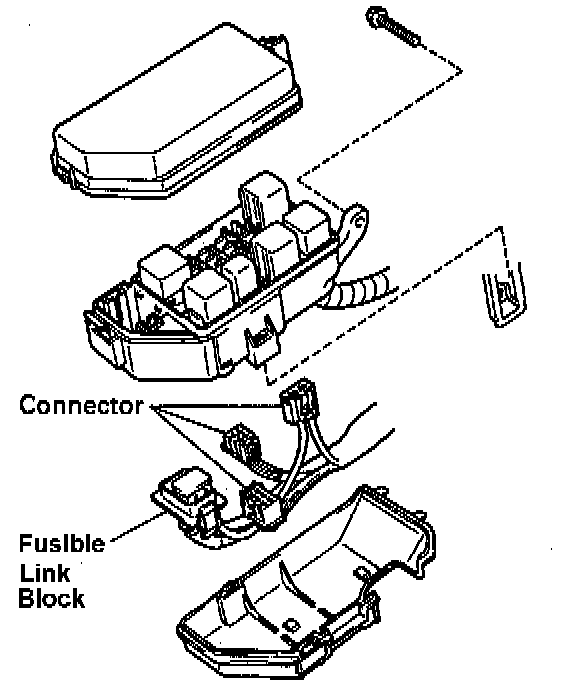

13. Disconnect engine wire from engine compartment relay box.
(a) Remove the bolt, and disconnect the relay box from the bracket on the body.
(b) Remove the upper and lower covers.
(c) Disconnect the 3 connectors and fusible link block from the relay box.

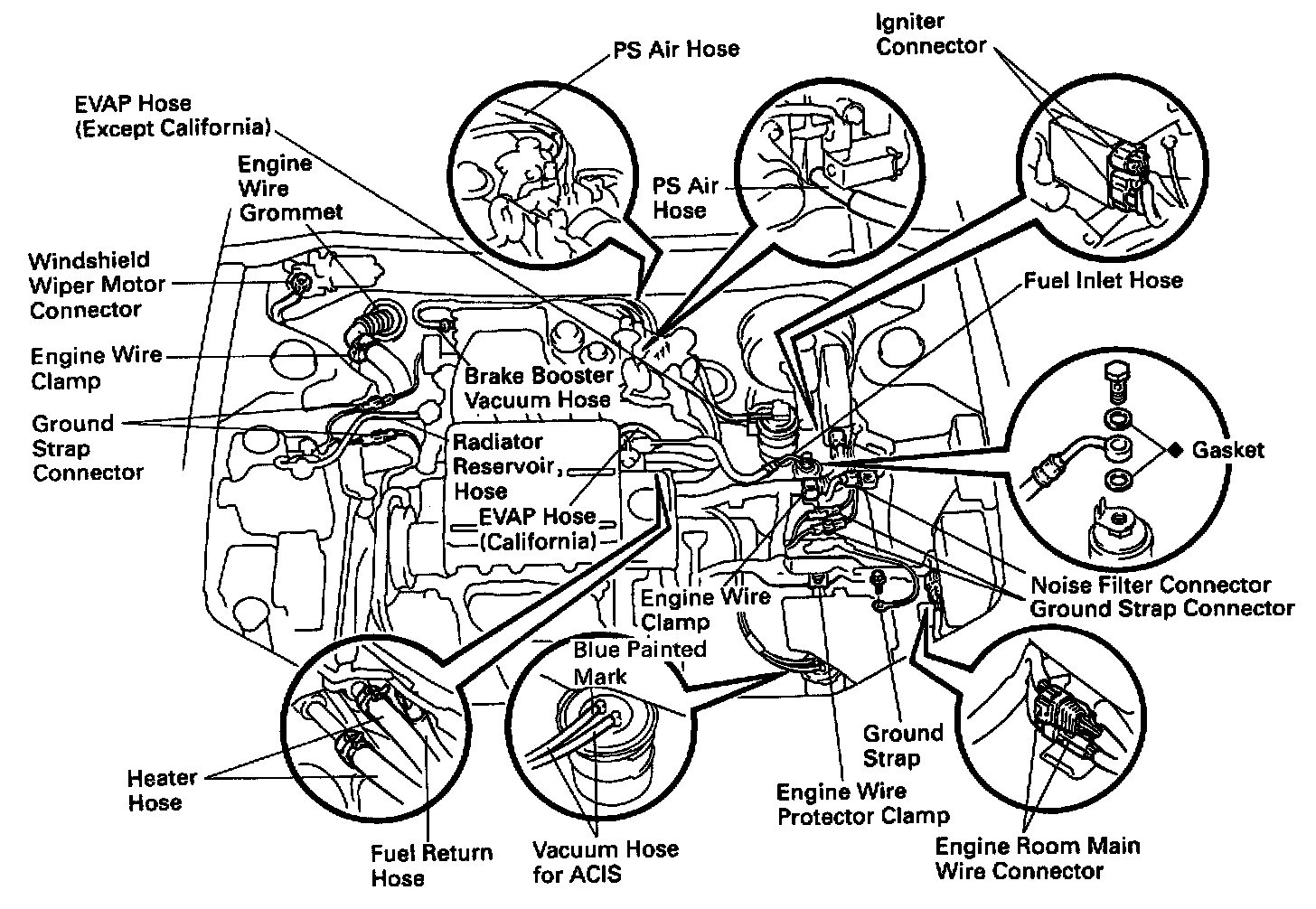

14. Disconnect connectors, cable, clamps and hoses.
(1) Windshield wiper motor connector.
(2) Igniter connector on LH fender apron.
(3) Noise filter connector on LH fender apron.
(4) 2 ground strap connectors from RH fender apron.
(5) 2 ground strap connectors from LH fender apron.
(6) 2 engine room main wire connectors on LH fender apron.
(7) Ground cable from battery body bracket.
(8) Engine wire protector clamp from battery body bracket.
(9) Engine wire clamp from bracket on RH fender apron.
(10) Engine wire clamp from bracket on fuel filter.
(11) Brake booster vacuum hose from air intake chamber.
(12) Engine coolant reservoir hose from water outlet.
(13) Heater hose from intake manifold.
(14) Heater hose from water inlet housing.
(15) Fuel inlet hose from fuel filter.
(16) Evaporative Emission (EVAP) hose from pipe on emission control valve set.
(17) EVAP hose from charcoal canister.
(18) 2 vacuum hoses from vacuum tank for Acoustic Control Induction System (ACIS).

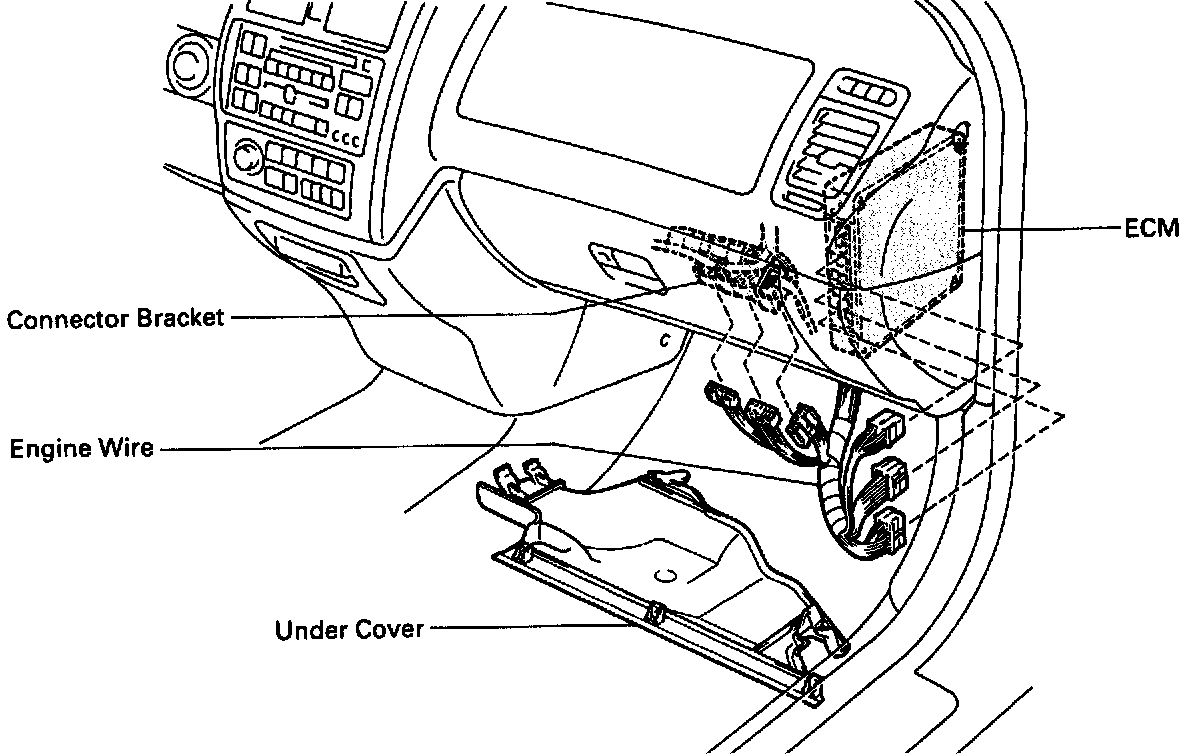

15. Disconnect engine wire from cabin.
(a) Remove the under cover.
(b) Disconnect these connectors:
(1) 3 Engine Control Module (ECM) connectors.
(2) 3 cowl wire connectors from connectors on bracket.
(c) Disconnect the grommet from the cowl panel, and pull out the engine wire.
16. Remove drive shafts. Refer to Steering and Suspension.





17. Disconnect A/C compressor from engine.
(a) Disconnect the A/C compressor connector.
(b) Remove the drive belt.
(c) Remove the 4 bolts, nut and drive belt adjusting bar bracket.
(d) Disconnect the A/C compressor from the engine.
18. Disconnect transaxle control cable from transaxle.





19. Disconnect Power Steering (PS) pump from engine.

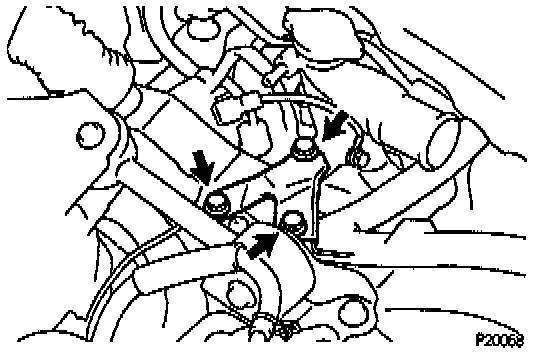

(a) Remove the 2 nuts, and disconnect the PS pressure tube from the No. 1 engine hanger.
(b) Loosen the 2 bolts, and remove the drive belt.
(c) Remove the 2 bolts, and disconnect the PS pump from the engine.





20. Disconnect transaxle from LH engine mounting insulator.
Remove the 4 bolts holding the transaxle to the mounting insulator.

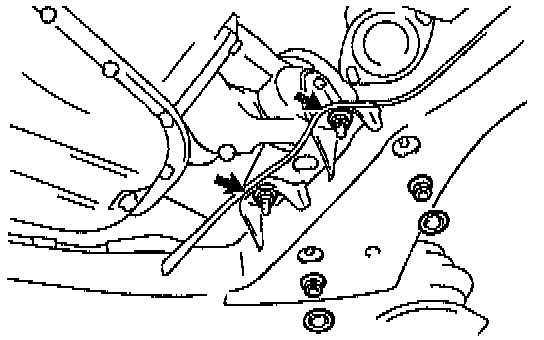

21. Disconnect rear engine mounting bracket from front frame.
(a) Remove the 2 hole plugs.
(b) Remove the 4 nuts holding the front frame to the mounting bracket.





22. Remove engine mounting absorber.
Remove the 4 bolts and mounting absorber.

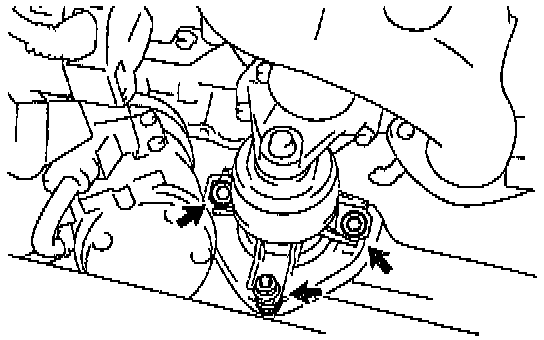

23. Disconnect front engine mounting insulator from front frame.
Remove the 3 bolts holding the mounting insulator to the front frame.

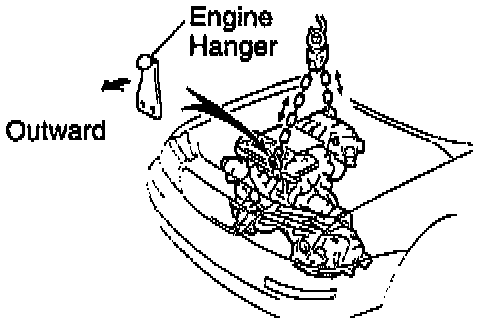

24. Attach engine sling device to engine hangers.
(a) Install the No. 2 engine hanger in the correct direction.
Part No.:
^ No. 2 engine hanger 12282-20020.
^ Bolt 91642-80825 or Equivalents.
Torque: 19.5 Nm (14 ft. lbs.)
(b) Attach the engine sling device to the engine hangers.

CAUTION: Do not attempt to hang the engine by hooking the chain to any other part.





25. Remove RH engine mounting stay.
Remove the 3 bolts, ground strap and RH engine mounting stay.

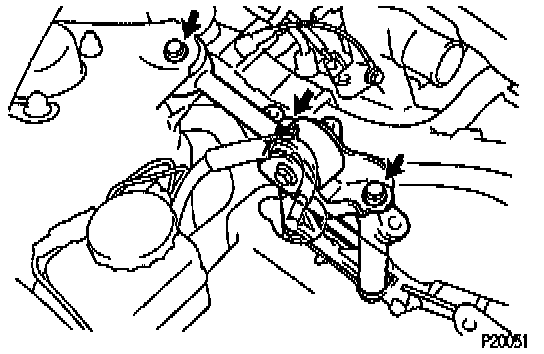

26. Remove engine moving control rod and No. 2 RH engine mounting bracket.
Remove the 3 bolts, control rod and mounting bracket.

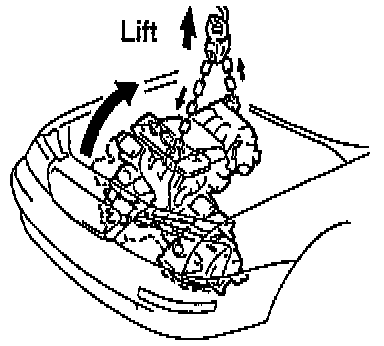

27. Remove engine and transaxle assembly from vehicle.





(a) Lift the engine out of the vehicle slowly and carefully.

CAUTION:
^ Be careful not to hit the Park/Neutral Position (PNP) switch.
^ Make sure the engine is clear of all wiring, hoses and cables.

(b) Place the engine and transaxle assembly onto the stand.
28. Remove front engine mounting insulator from engine.
Remove the 4 bolts and mounting insulator.
29. Remove rear engine mounting insulator and bracket assembly from engine.
Remove the 4 bolts, the mounting insulator and bracket assembly.
