Wireless Door Lock Control

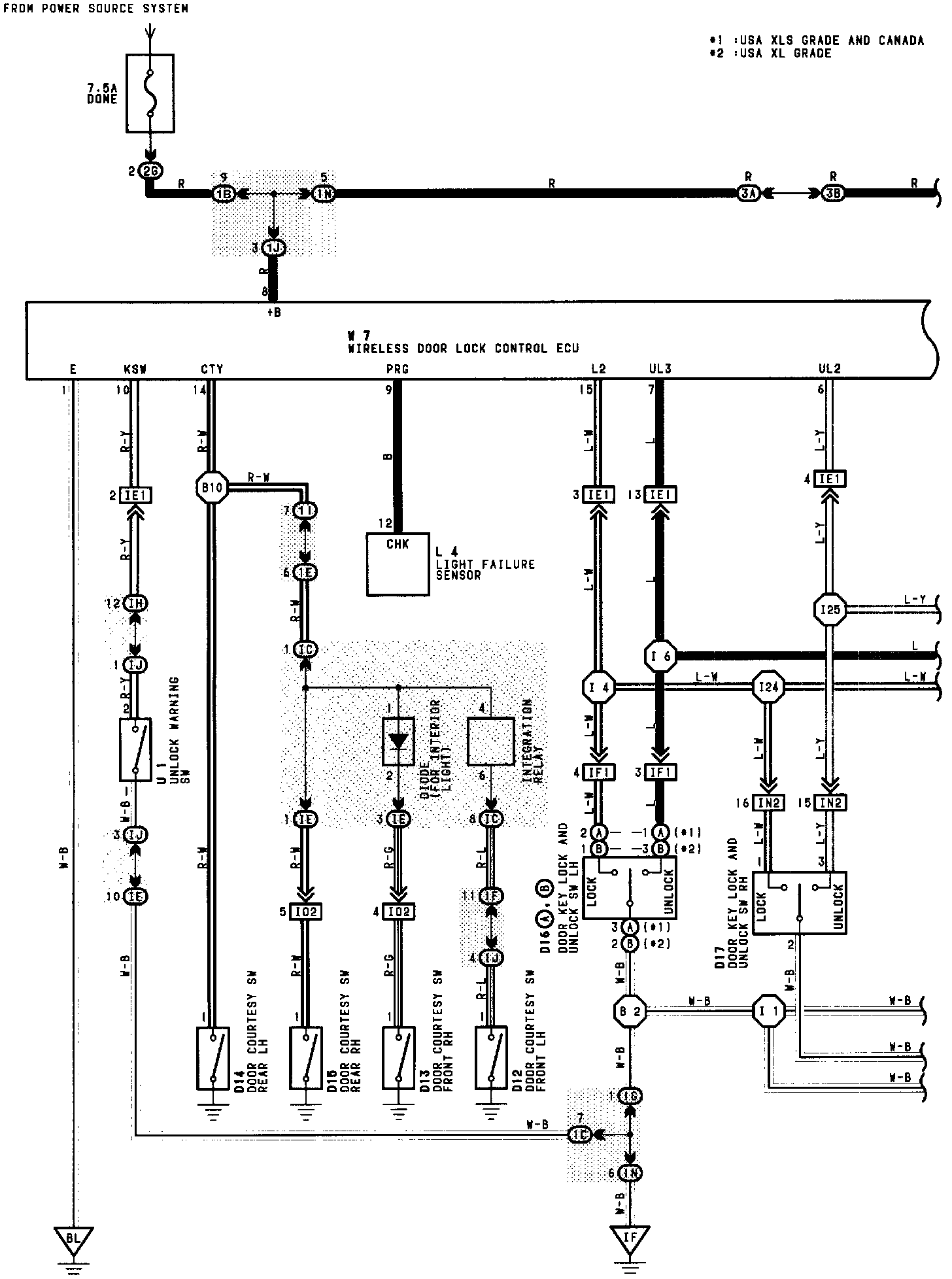

Wireless Door Lock Control (Part 1 Of 3):

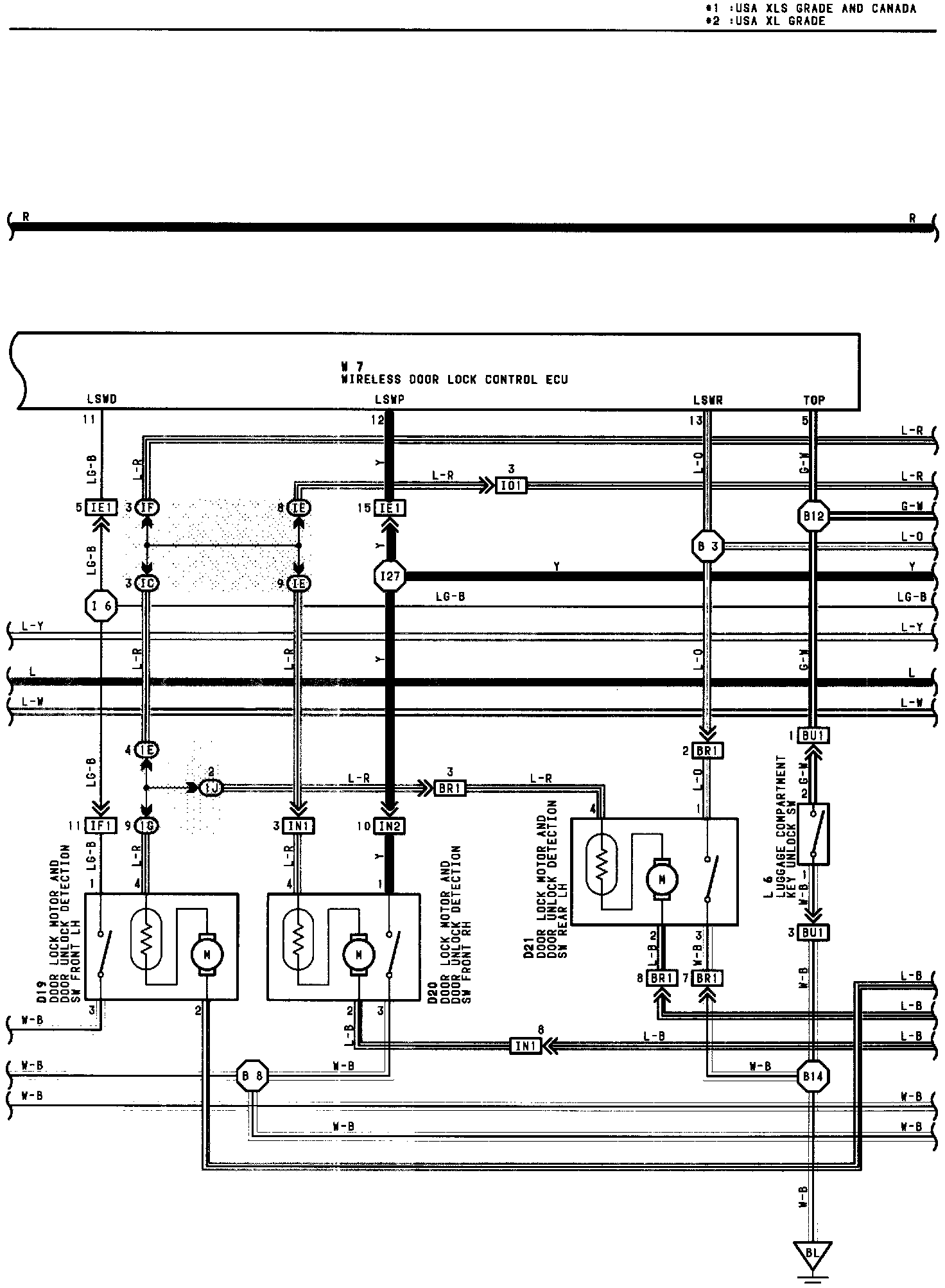

Wireless Door Lock Control (Part 2 Of 3):

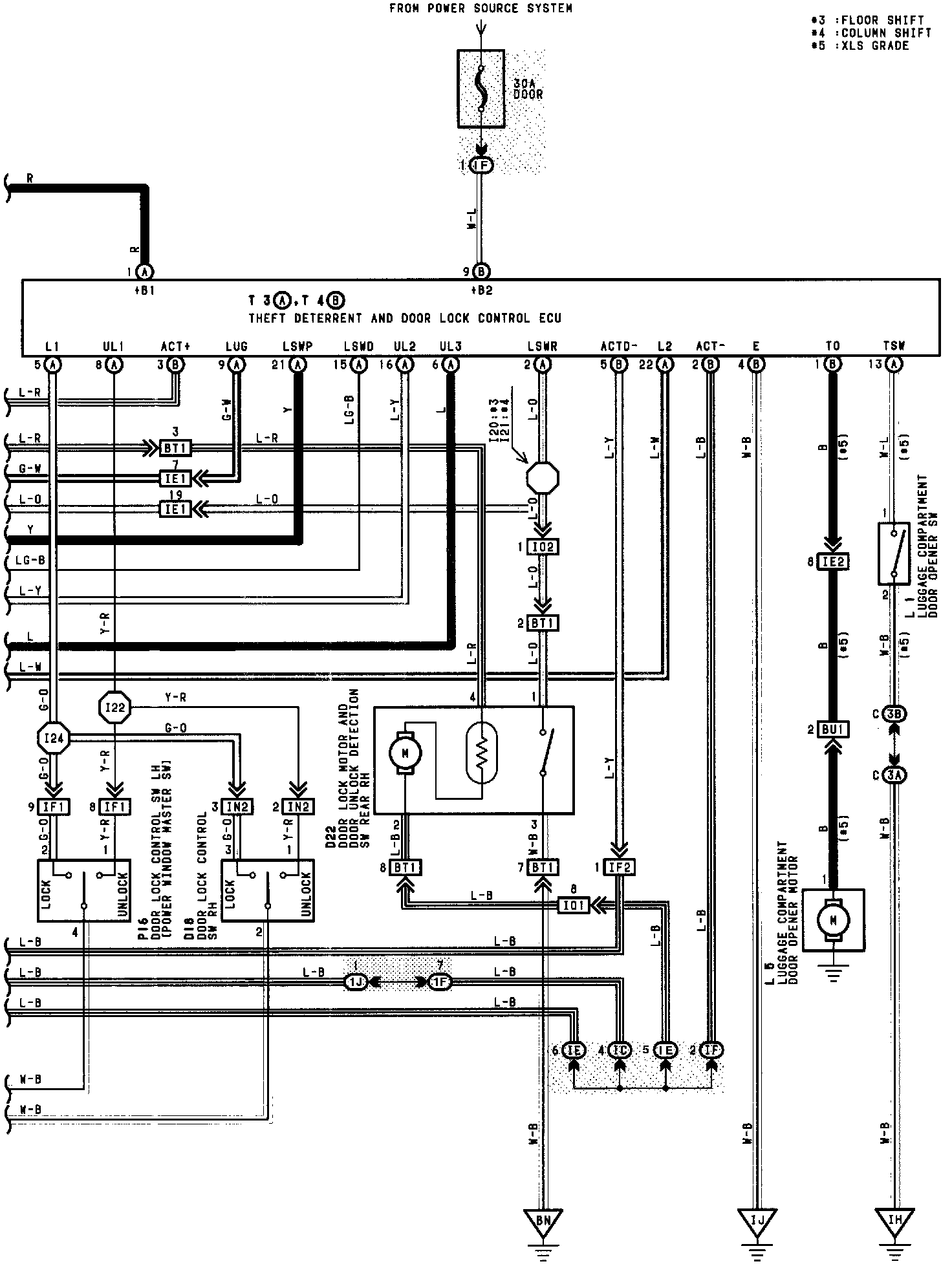

Wireless Door Lock Control (Part 3 Of 3):
