Door Lock Control

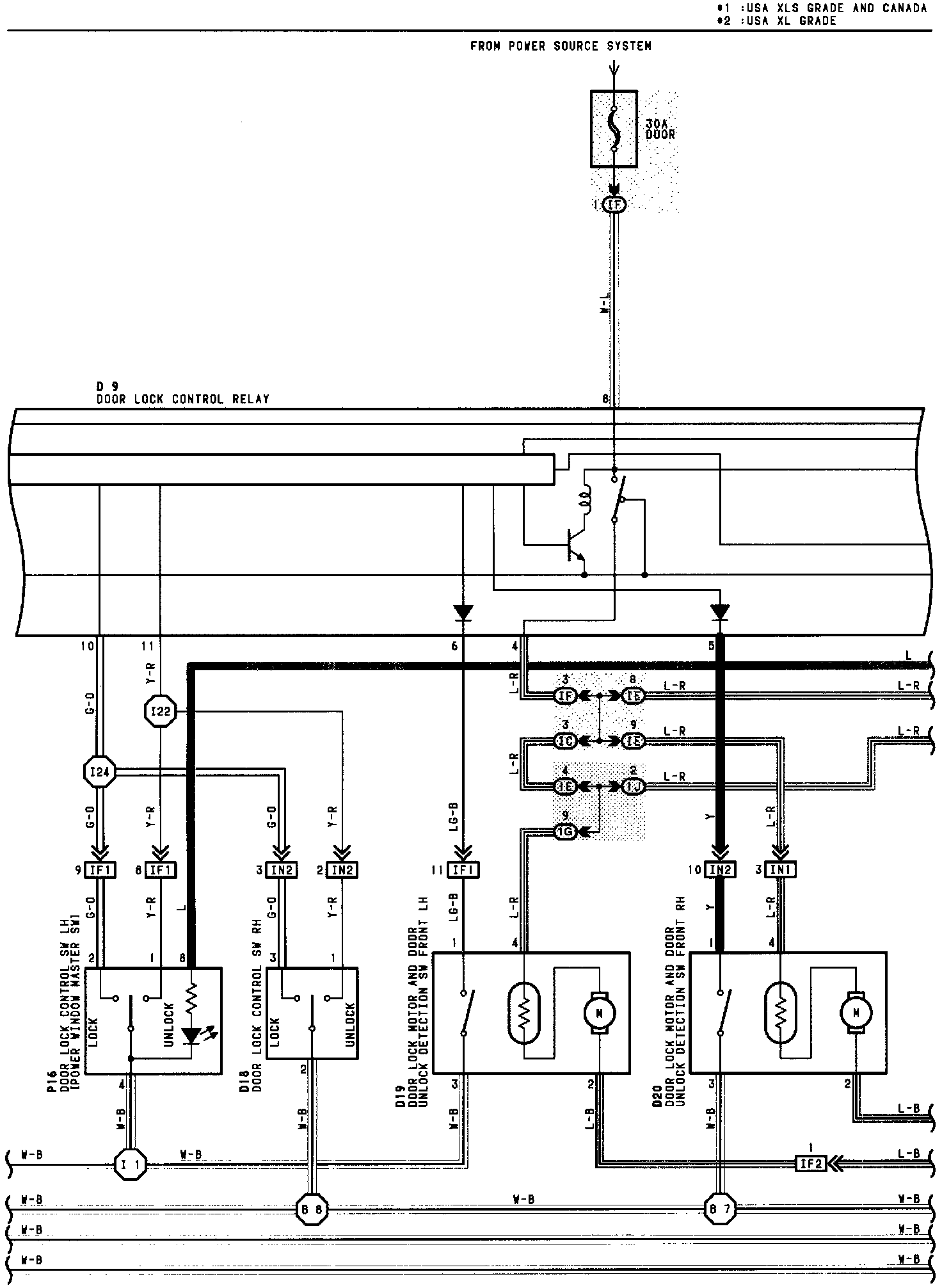

Door Lock Control (Part 1 Of 3):

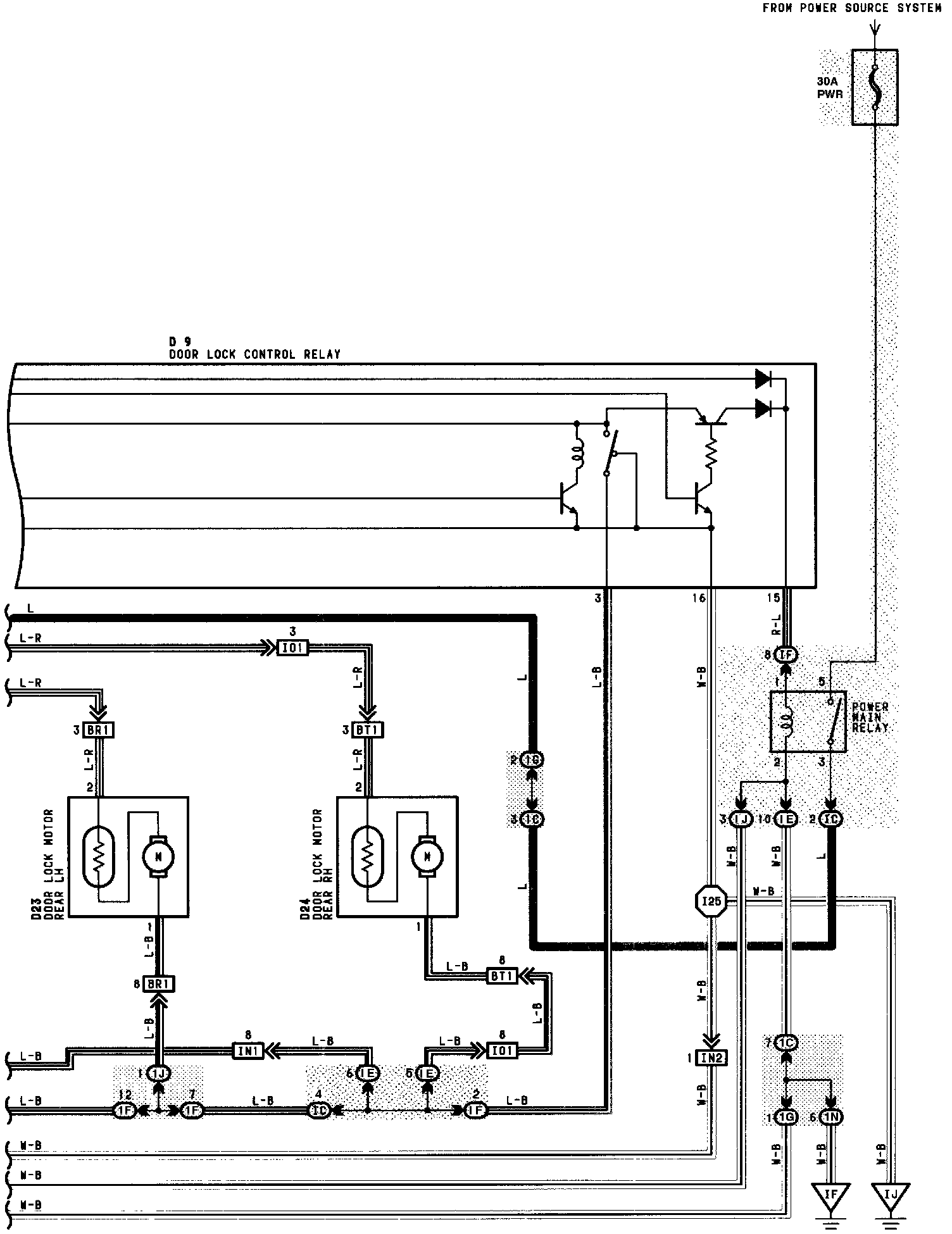

Door Lock Control (Part 2 Of 3):




Door Lock Control (Part 3 Of 3):
