Overdrive Indicator Lamp

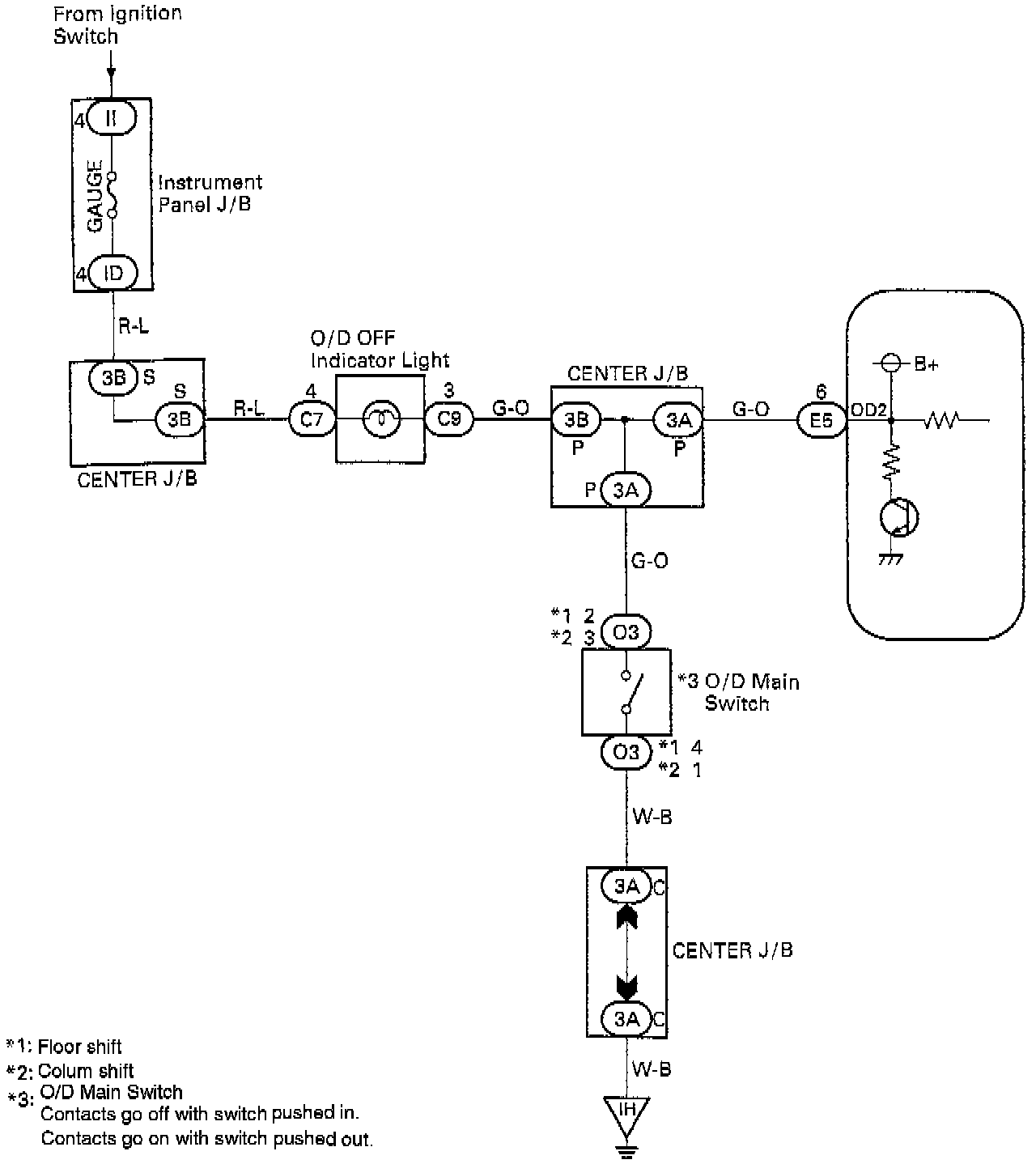

O/D Main Switch And O/D OFF Indicator Circuit*1 Floor shift*2 Column shift*3 O/D Main Switch: In=OFF / Out=ON:
