Air Conditioning (Manual A/C)

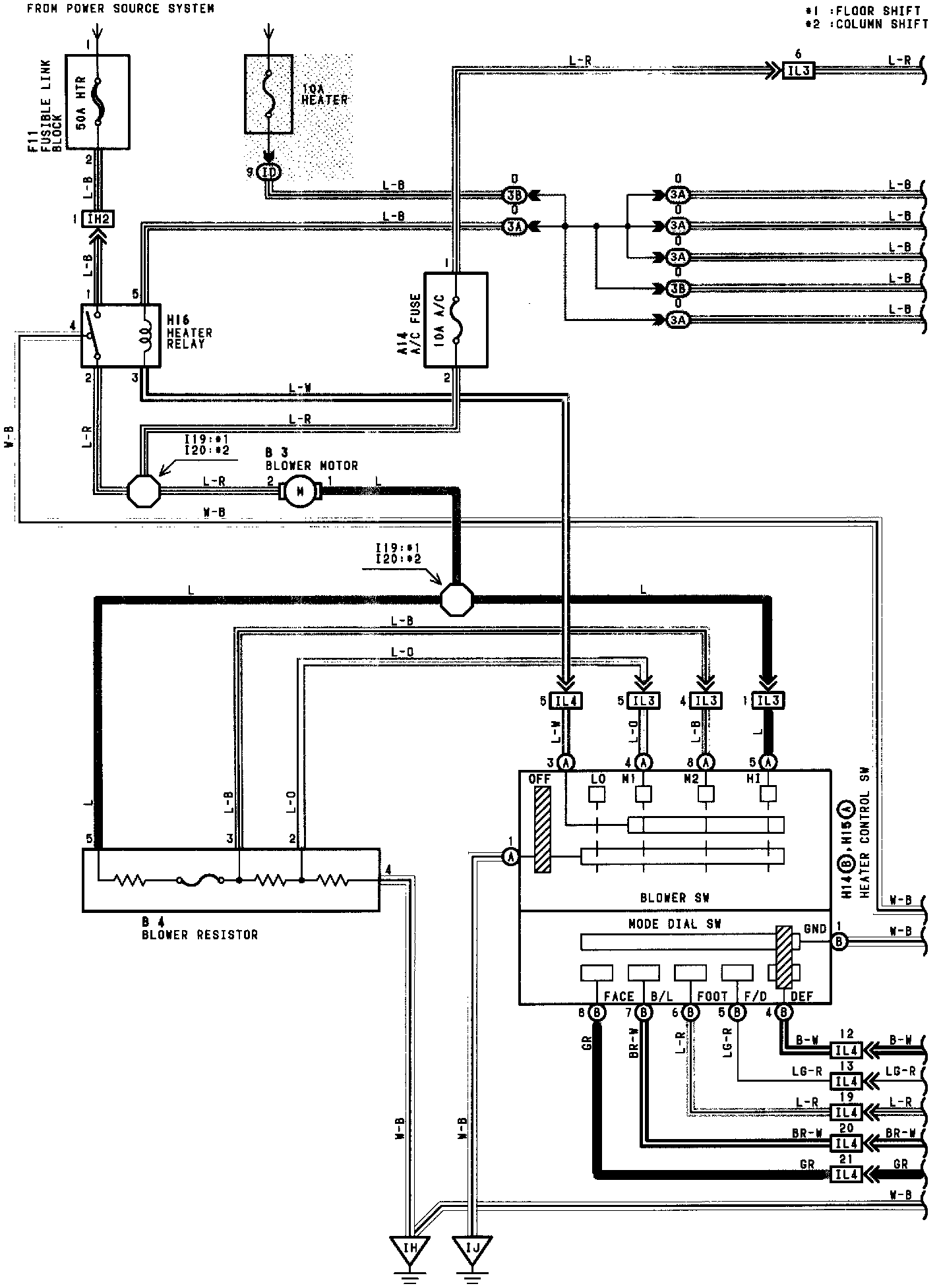

Air Conditioning (Manual A/C) (Part 1 Of 3):

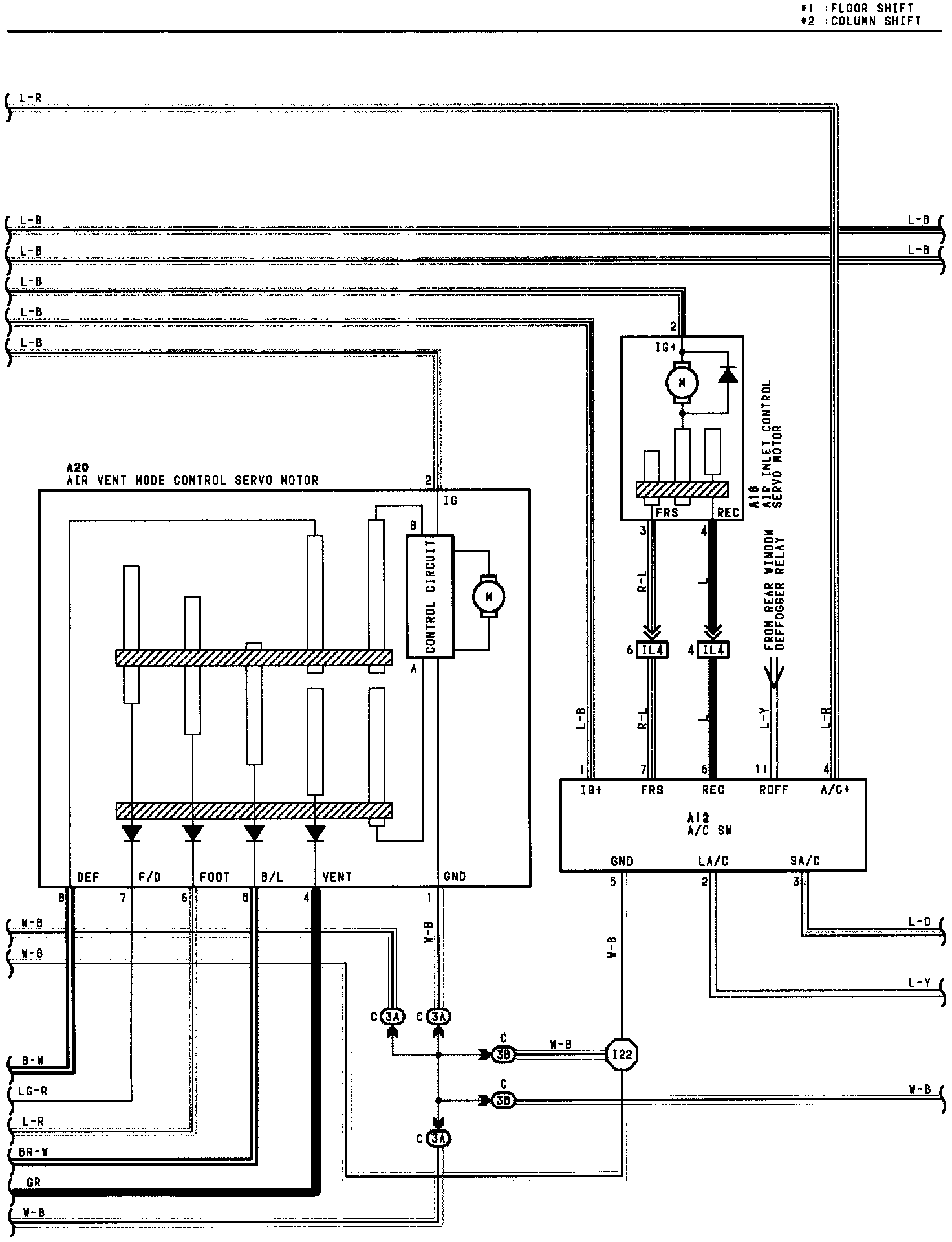

Air Conditioning (Manual A/C) (Part 2 Of 3):

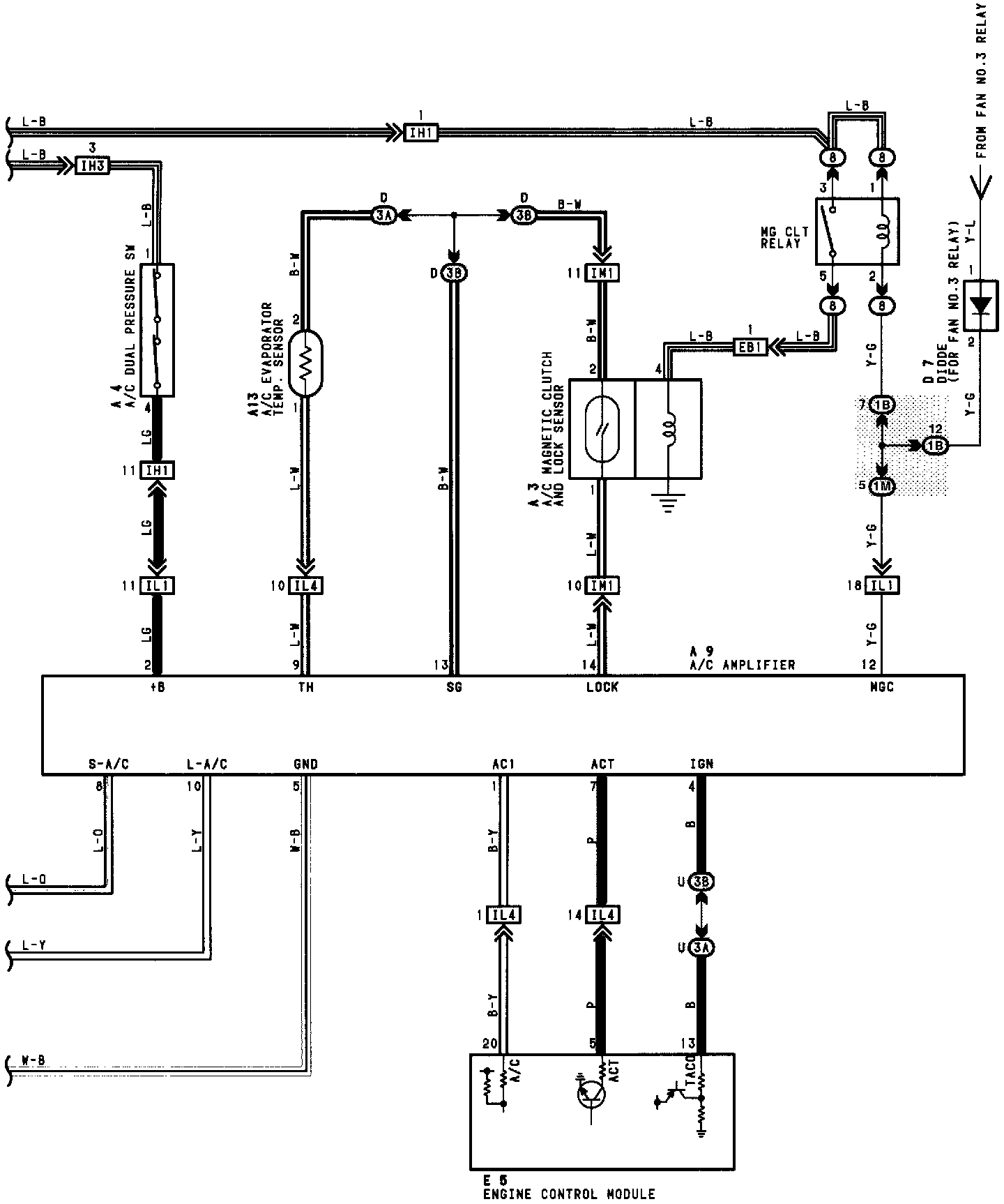

Air Conditioning (Manual A/C) (Part 3 Of 3):
