Home >> Toyota >> 1996 >> Avalon V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Condenser Fan >> Radiator Fan and Condenser Fan

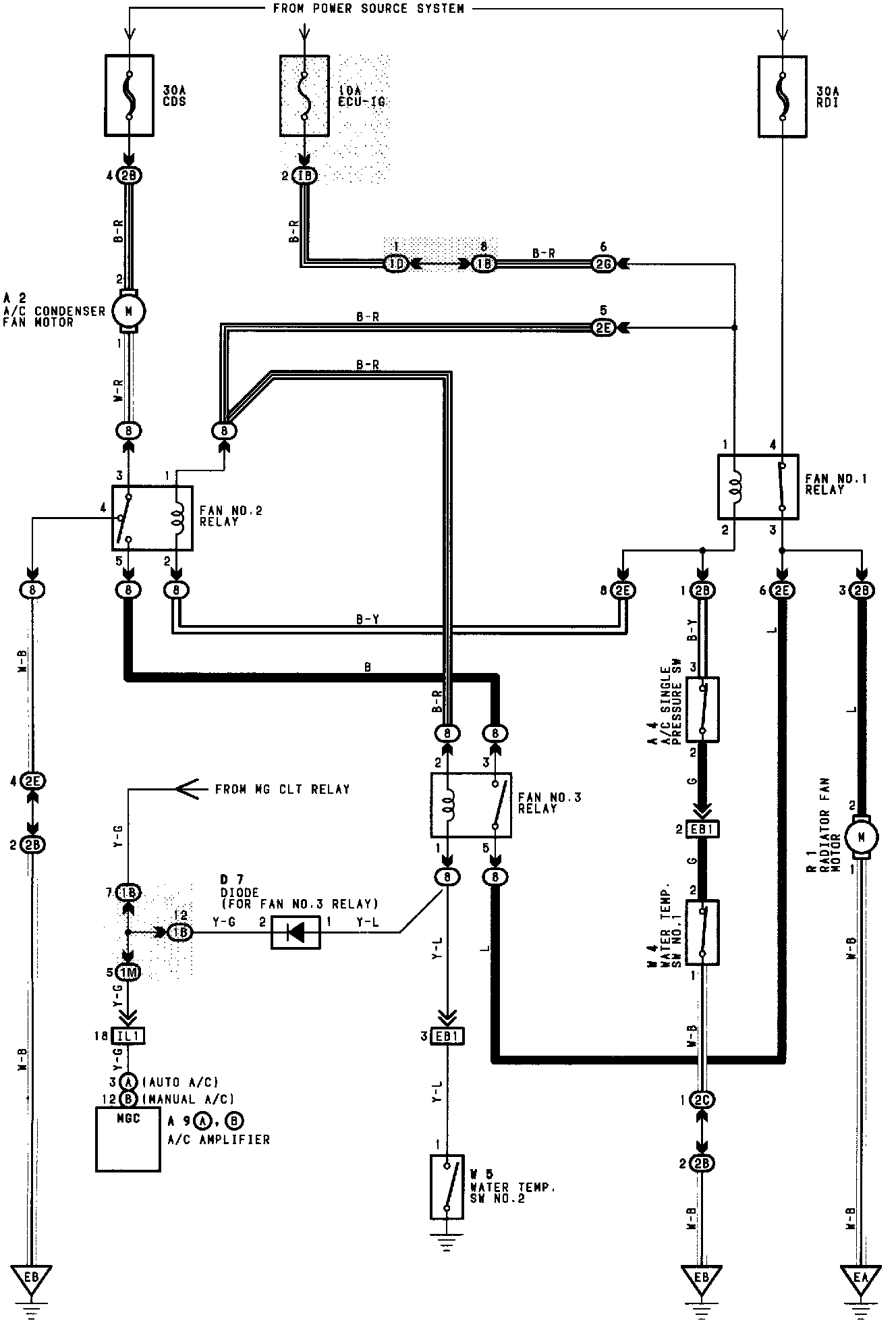

Radiator Fan and Condenser Fan

Radiator Fan And Condenser Fan:
