Home >> Toyota >> 1996 >> Avalon V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Diagrams >> Components >> Relays, Relay Boxes and Junction Boxes >> Instrument Panel and Center Console >> Floor Shift

Floor Shift

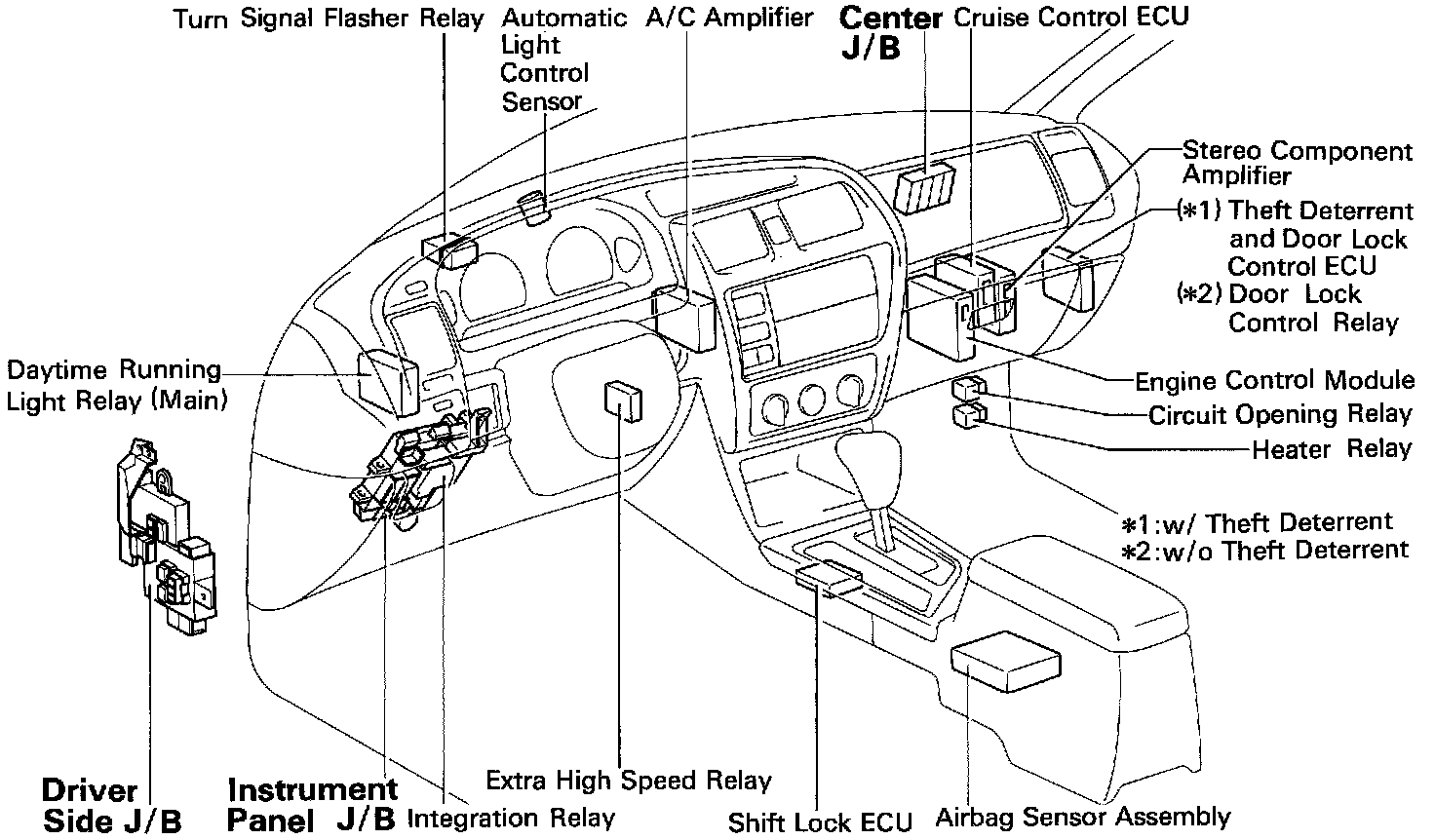

Locations-Instrument Panel (Floor Shift) (Fig 19):
