Flow of Diagnosis

HOW TO PROCEED WITH TROUBLESHOOTING



Perform troubleshooting in accordance with the procedures.

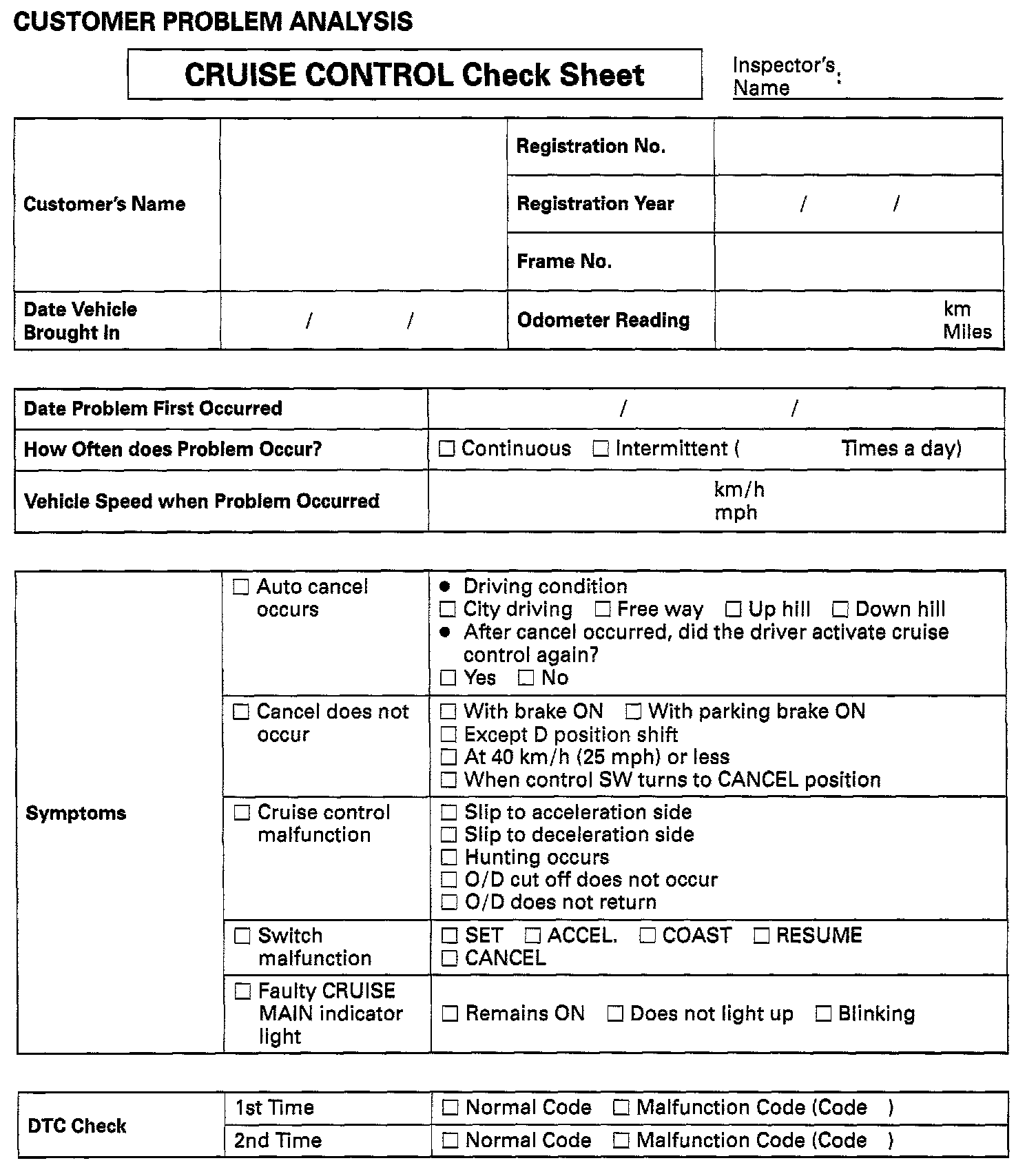

Customer Problem Analysis: Cruise Control Check Sheet:







Troubleshooting Flow Chart:
