Diagnosis Circuit

Tc Circuit

CIRCUIT DESCRIPTION

This circuit sends a signal to the ECU that diagnostic code output is required.

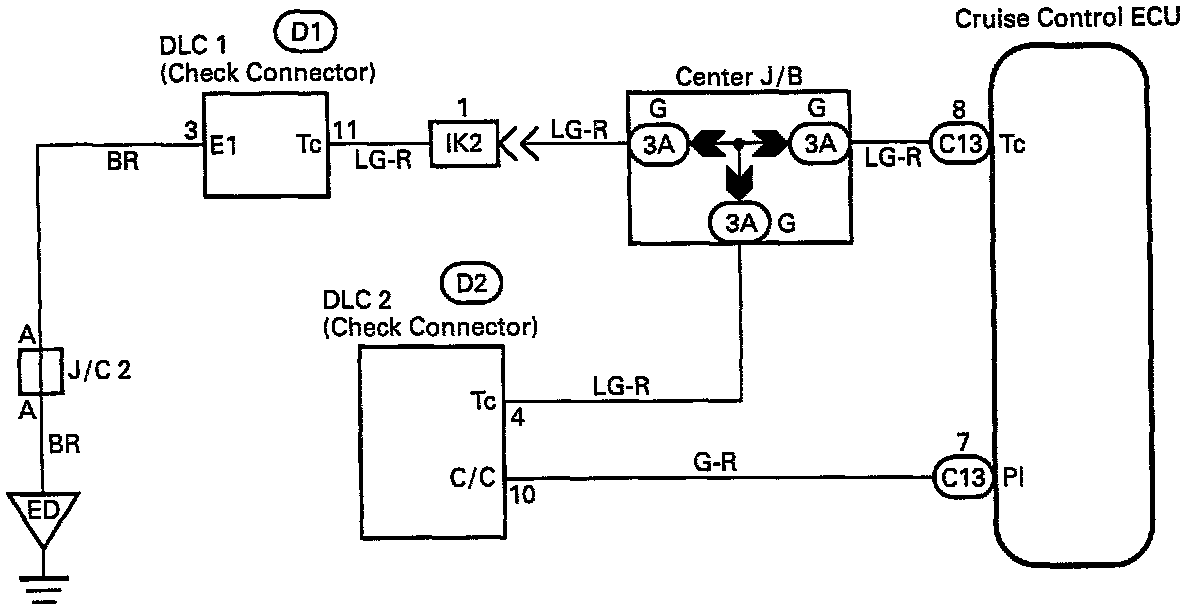

Wiring Diagram:







INSPECTION PROCEDURE

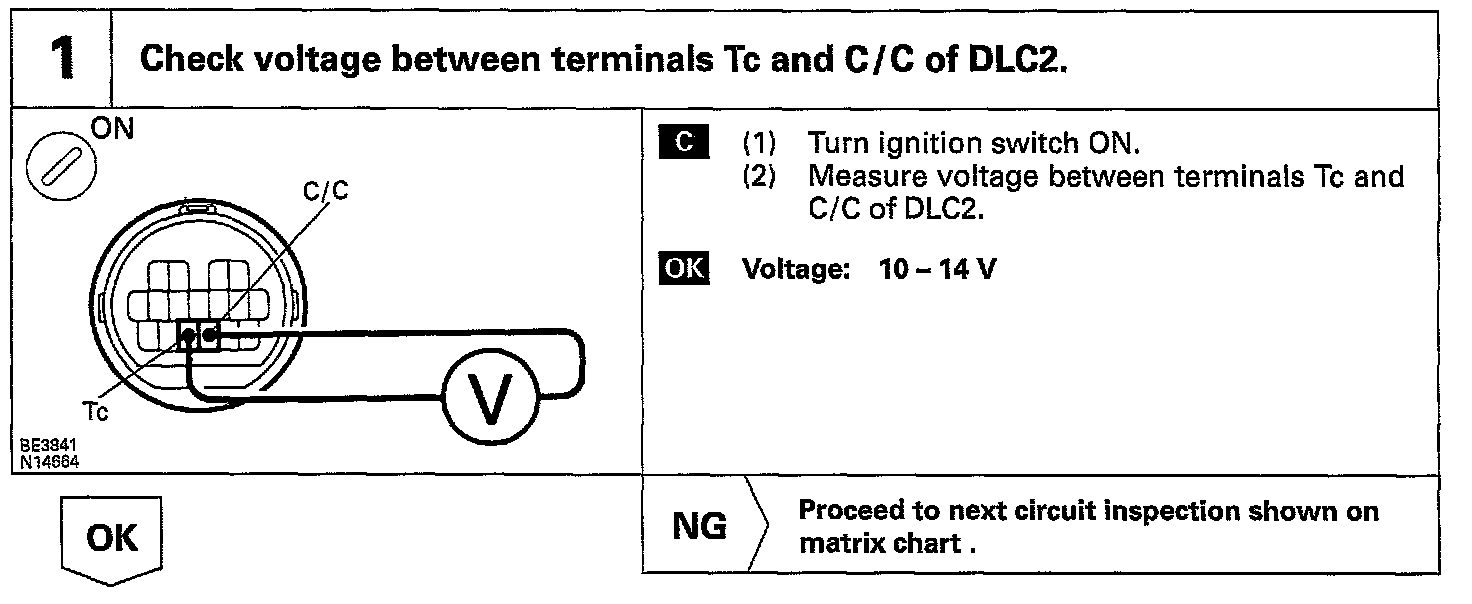

Step 1:

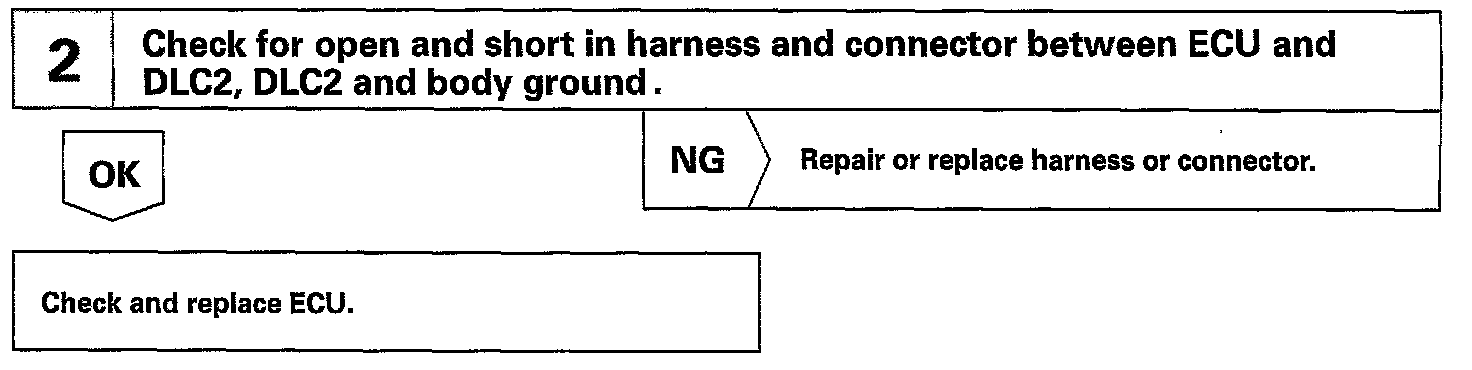

Step 2:
