Without Scan Tool

DTC CHECK
Without Scan Tool

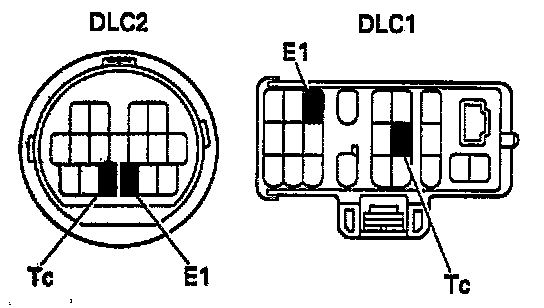

1. Using SST, connect terminals Tc and E1 of DLC2 or DLC1. SST 09843-18020
2. Turn the ignition switch ON.
3. Read the DTC from the ABS warning light on the combination meter.

HINT: If no code appears, inspect the diagnostic circuit or ABS warning light circuit.






As an example, the blinking patterns for normal code and codes 11 and 21 are shown on the left.
4. Codes are explained in the code table.
5. After completing the check, disconnect terminals Tc and E1, and turn ignition switch OFF.
If 2 or more malfunctions are stored in the memory, the codes will be displayed in numerically increasing order.
