Clearing Trouble Codes

DTC CLEARANCE


1. Using SST, connect terminals T1 and E1 of DLC2 or DLC1. SST 09843-18020
2 IG switch ON.

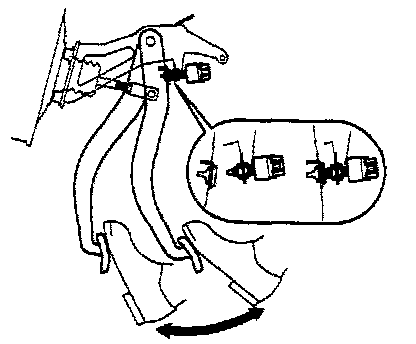

3. Clear the DTC stored in ECU by depressing the brake pedal 8 or more times within 3 seconds.
4. Check that the warning light shows the normal code.
5. Remove the SST from the terminals of DLC2 or DLC1. SST 09843-18020

HINT: Cancellation cannot be done by removing the battery cable or ECU-IG fuse.
