Stop Light Switch Circuit

Stop Light Switch Circuit

CIRCUIT DESCRIPTION
This stop light switch senses whether the brake pedal is depressed or released, and sends the signal to the ECU.

Wiring Diagram:






INSPECTION PROCEDURE

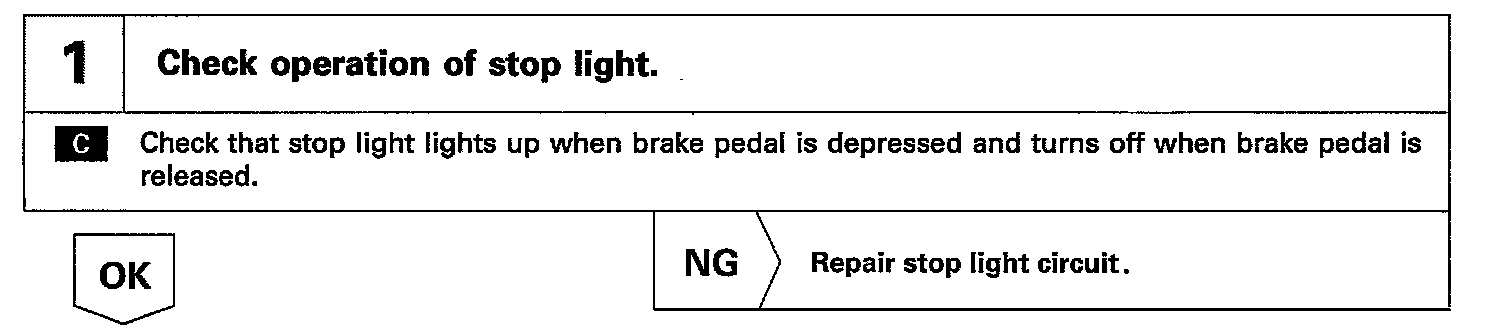

Step 1:

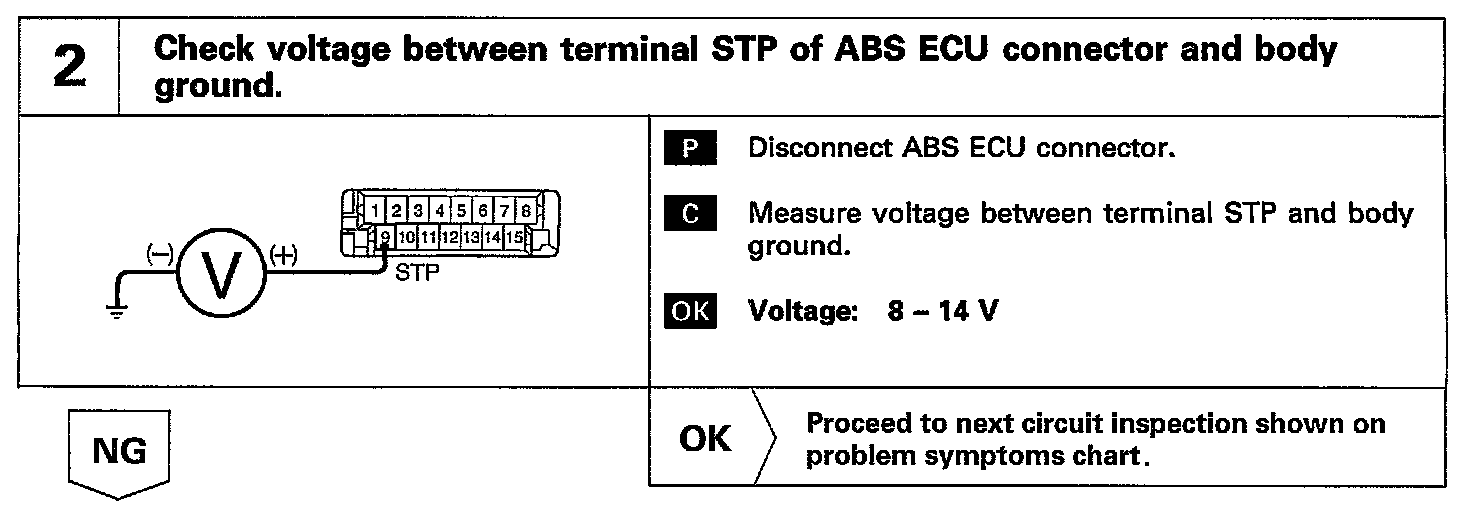

Step 2:

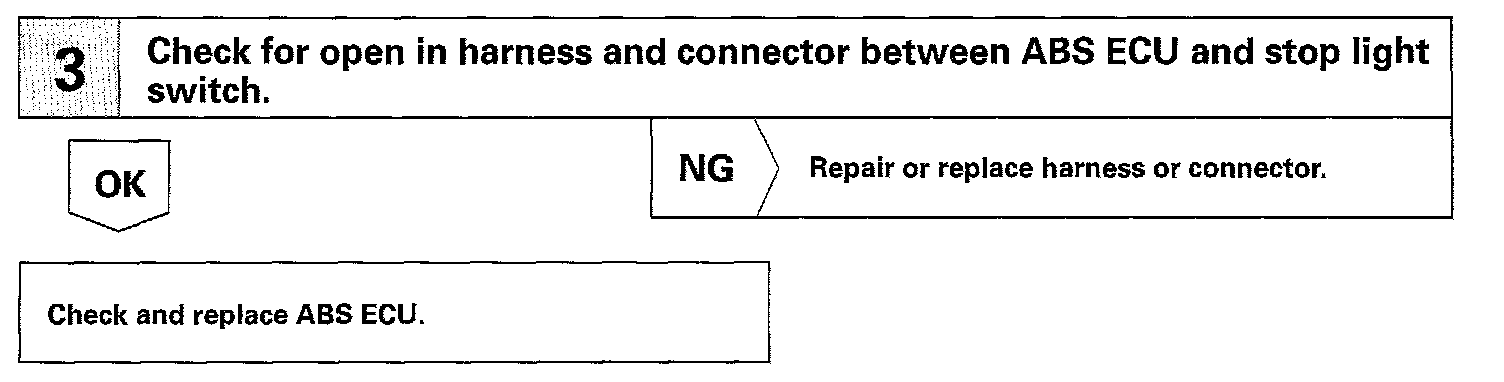

Step 3:
