ABS Warning Light Circuit
ABS Warning Light CircuitCIRCUIT DESCRIPTION
If the ECU detects trouble, it lights the ABS warning light while at the same time prohibiting ABS control At this time, the ECU records a DTC in memory. Connect terminals Tc and E1 of the DLC1 or DLC2 to make the ABS warning light to blink and out put the DTC.

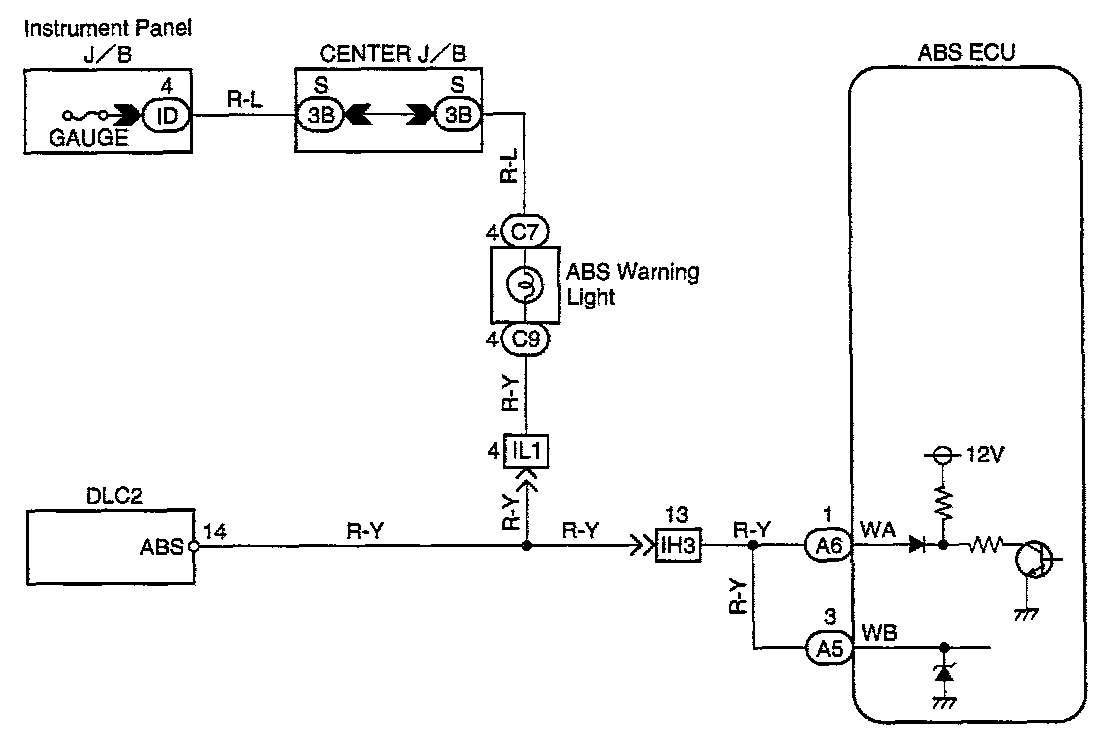

Wiring Diagram:
INSPECTION PROCEDURE

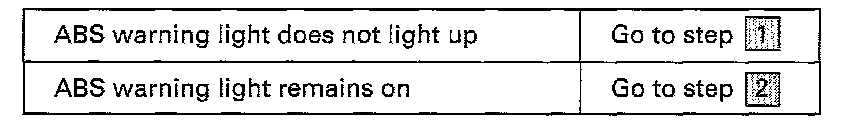

Troubleshoot in accordance with the chart below for each trouble symptom.

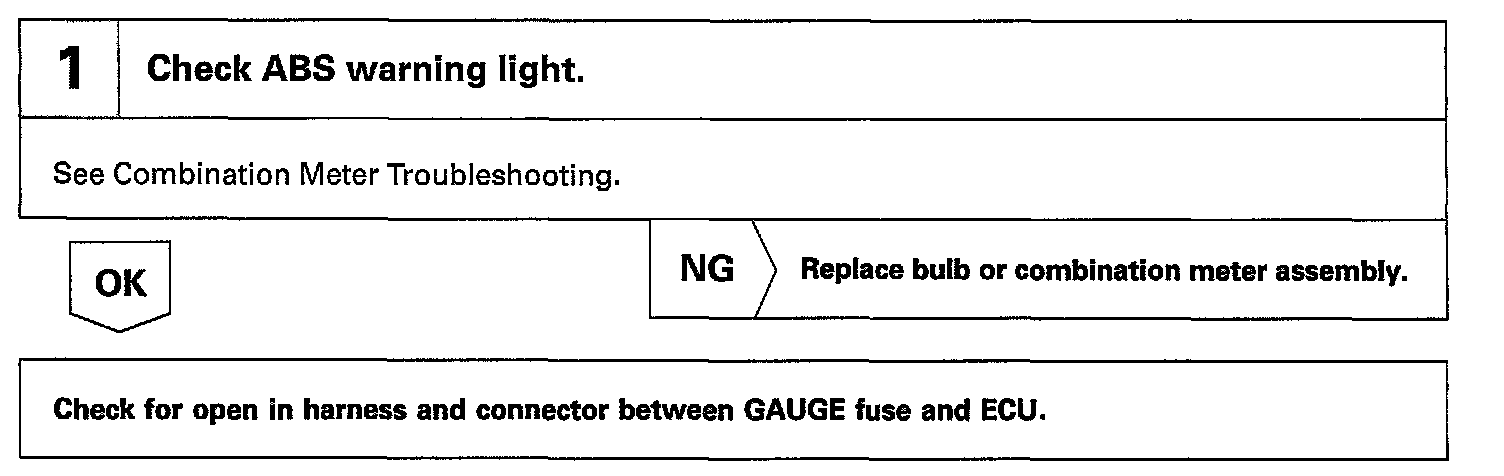

Step 1:

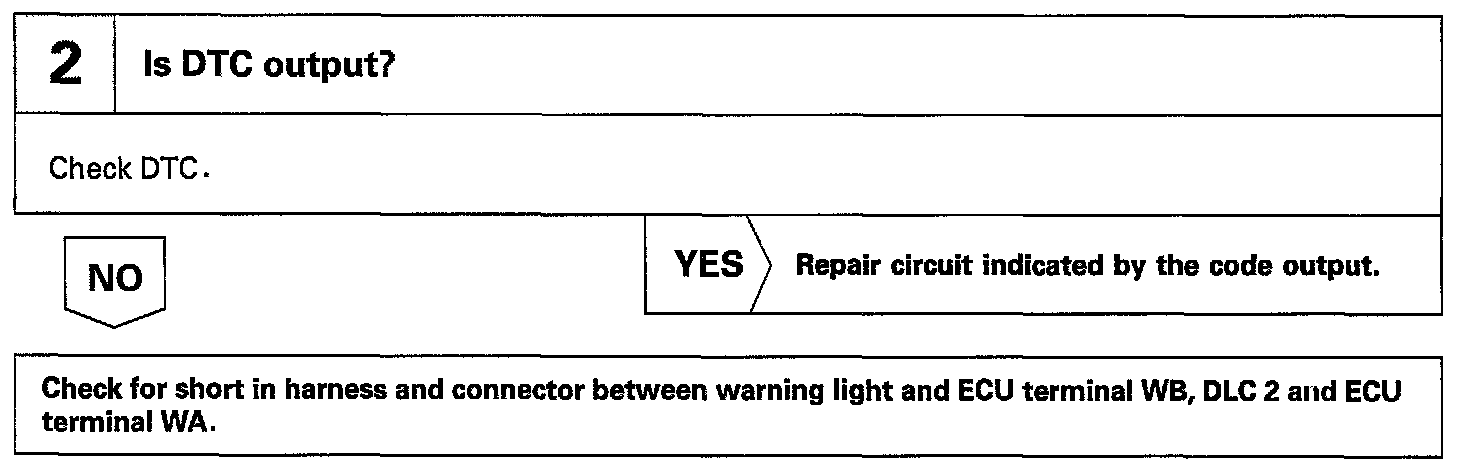

Step 2:
