MIrrors - Vanity Mirror Improvement

BODY
BO017-98

June 19, 1998

Title:
VANITY MIRROR IMPROVEMENT

Models:
'96-'98 Avalon, '97-'98 Camry, '98 Sienna

Introduction

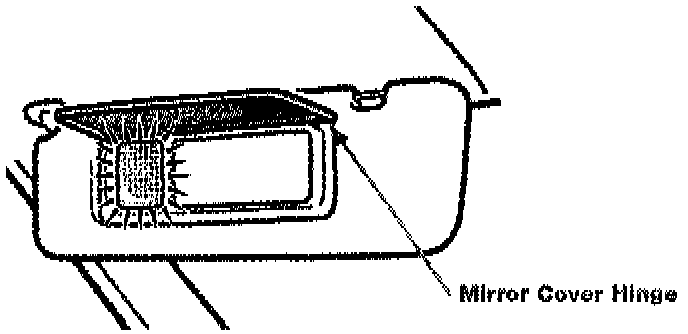

Production changes have been implemented on the 1998 Avalon, Camry and Sienna vanity mirror assembly to improve the strength and durability of the mirror cover hinge.

Affected Vehicles

^ 1996 to 1998 Avalons with VINs before: 4T1BF18B * WU244875

^ 1997 to 1998 Camrys with VINs within the following VINs:

^ 4T1BG2 * K * VUOOOO74 to 4T1BG2 * K * WU282528 (4 cyl.)
^ 4T1BG2 * K * VU748187 to 4T1BG2 * K * WU842277 (4 cyl.)
^ 4T1BF2 * K * VUOOOO72 to 4T1BF2 * K * WU058316 (6 cyl.)
^ 4T1BF2 * K * VU900327 to 4T1BF2 * K * WU926890 (6 cyl.)

^ 1998 Siennas with VINs before: 4T3 * F1 * C * WU034556.

Parts Information

MODEL CURRENT PART NUMBER PART NAME

Avalon 81350-ACO10-XX Vanity Lamp Assembly
81350-ACO6O-XX
Camry 81350-A0030-XX Vanity Lamp Assembly
Sienna 81350-ACO3O-XX Vanity Lamp Assembly

Repair Procedures

Remove original vanity lamp assembly and install a new vanity lamp assembly.





Warranty Information

Applicable Warranty *:

This repair is covered Under the Toyota Basic Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's complaint.
