Front Door: Adjustments

ADJUSTMENT

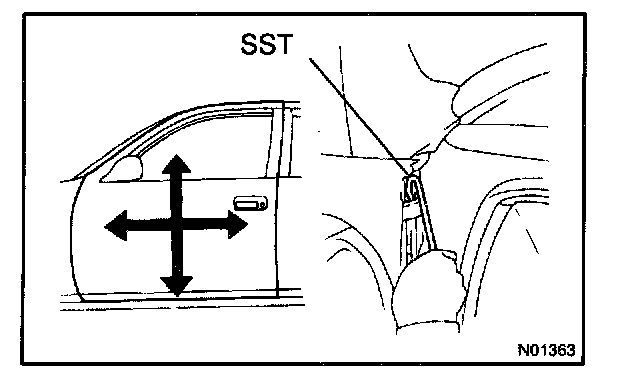

1. ADJUST DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS
Using SST, loosen the body side hinge bolts to adjust.
SST 09812-00010

Torque: 63 N.m (640 kgf.cm, 46 ft.lbf)

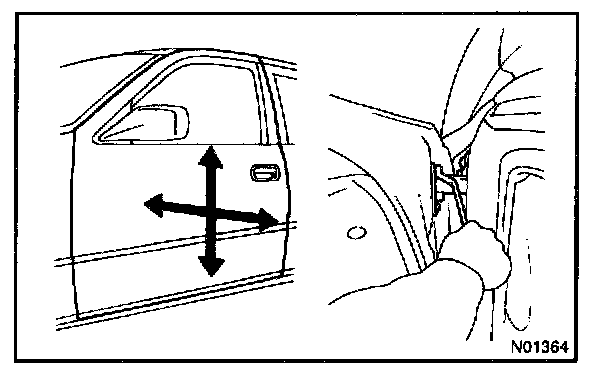

2. ADJUST DOOR IN LEFT/RIGHT AND VERTICAL DIRECTIONS
Loosen the door side hinge bolts to adjust.

HINT: Substitute the bolt with washer for the centering bolt.

Torque: 25 N.m (260 kgf.cm, 19 ft.lbf)




3. ADJUST DOOR LOCK STRIKER
a. Check that the door fit and door lock linkages are adjusted correctly.
b. Loosen the striker mounting screws.

Torque: 8.8 N.m (90 kgf.cm, 78 in.lbf)

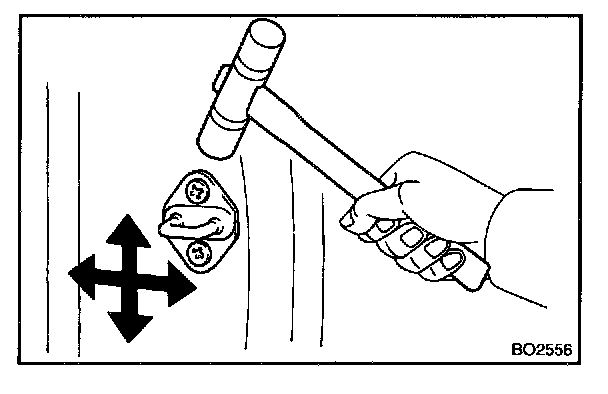

c. Using a plastic hammer, tap the striker to adjust it.
