P0770

DTC P0770 - SHIFT SOLENOID VALVE SL MALFUNCTION

SYSTEM DESCRIPTION
The ECM uses the signals from the NC2 revolution sensor and crankshaft position sensor to monitor the engagement condition of the lock-up clutch.

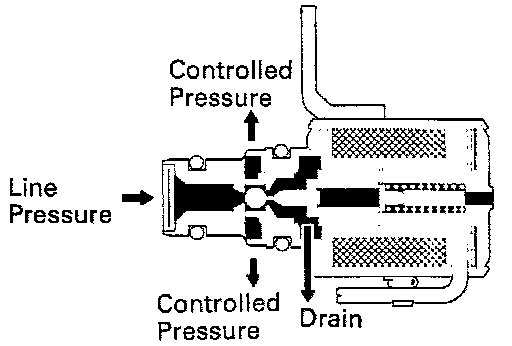

Then the ECM compares the engagement condition of the lock-up clutch with the lock-up schedule in the ECM memory to detect mechanical trouble of the shift solenoid valve SL, valve body and torque converter clutch.

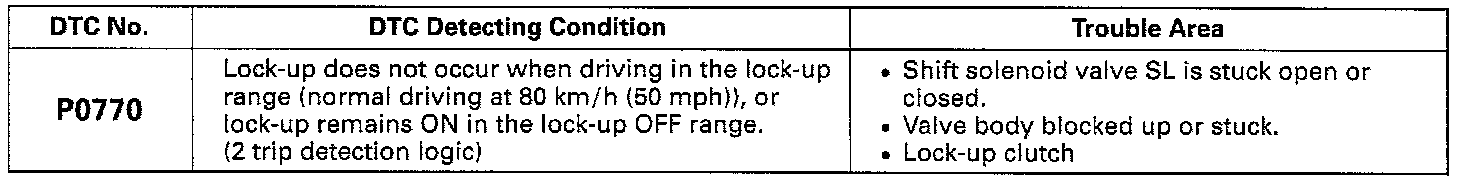

DETECTING CONDITION

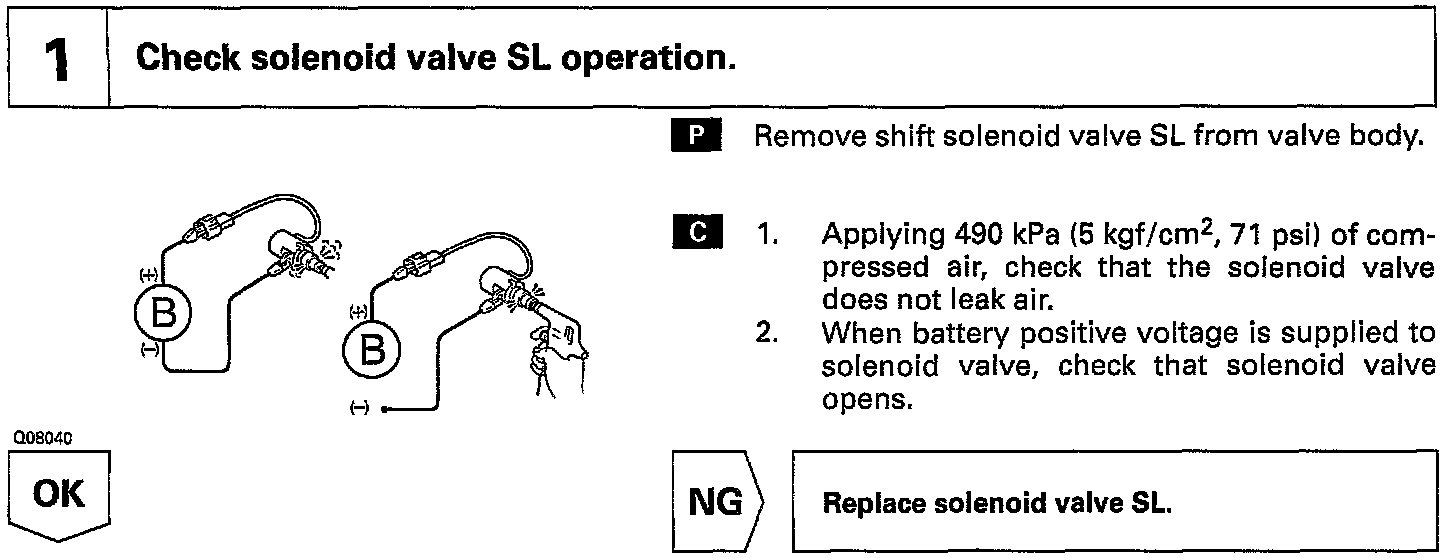

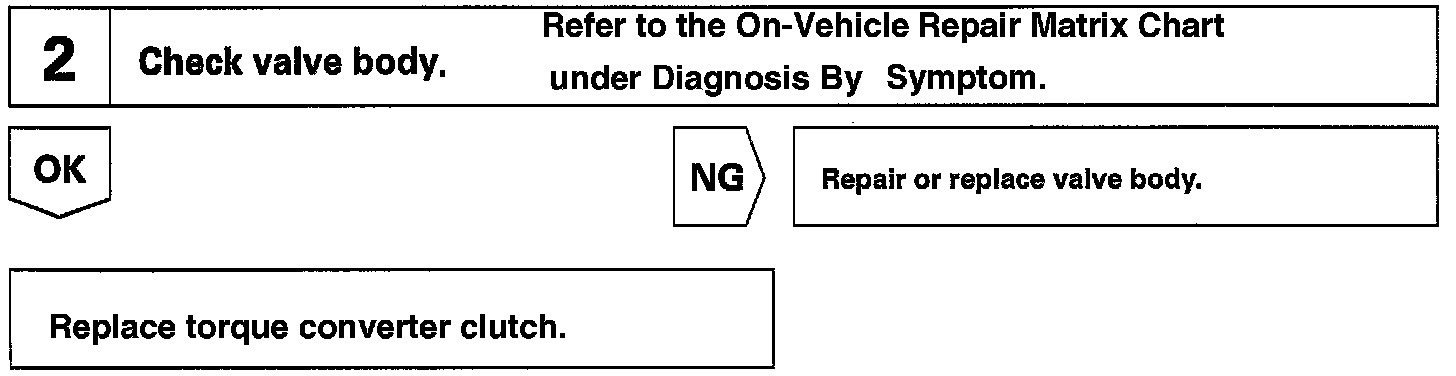

INSPECTION PROCEDURE
