DTC 54

DTC 54 - OPEN IN P SQUIB CIRCUIT





CIRCUIT DESCRIPTION
The P squib circuit consists of the airbag sensor assembly and front passenger airbag assembly (squib). It causes the airbag to deploy when the airbag deployment conditions are satisfied.
For details of the function of each component, see FUNCTION OF COMPONENTS.

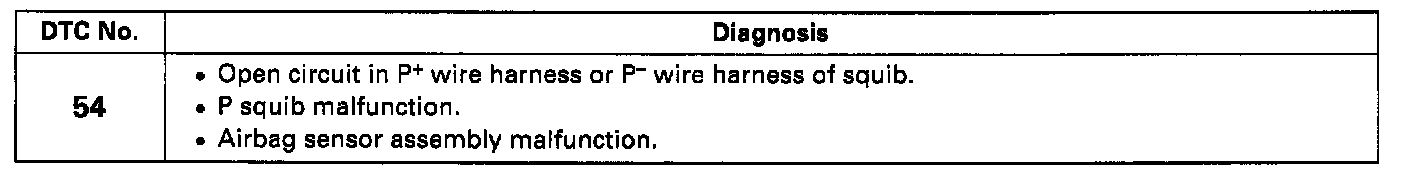

DTC 54 is recorded when an open is detected in the P squib circuit.

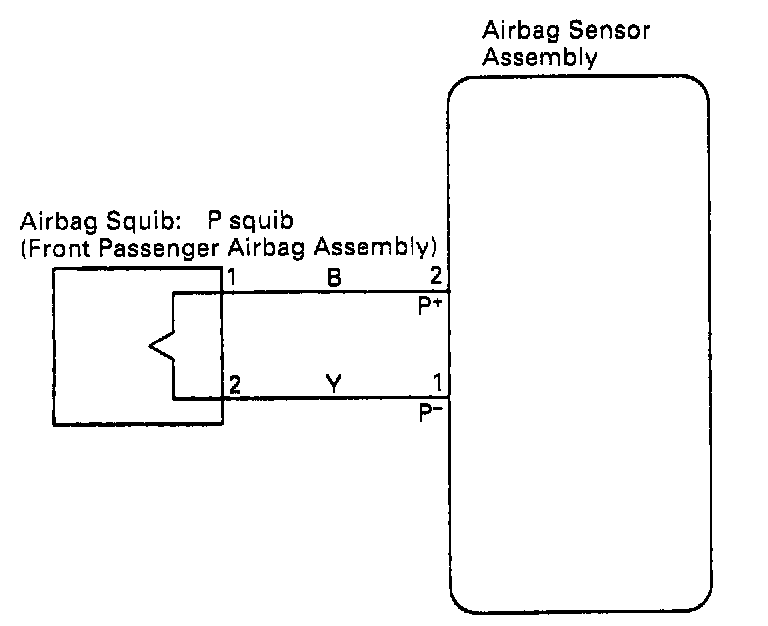

Wiring Diagram:

Step 1:

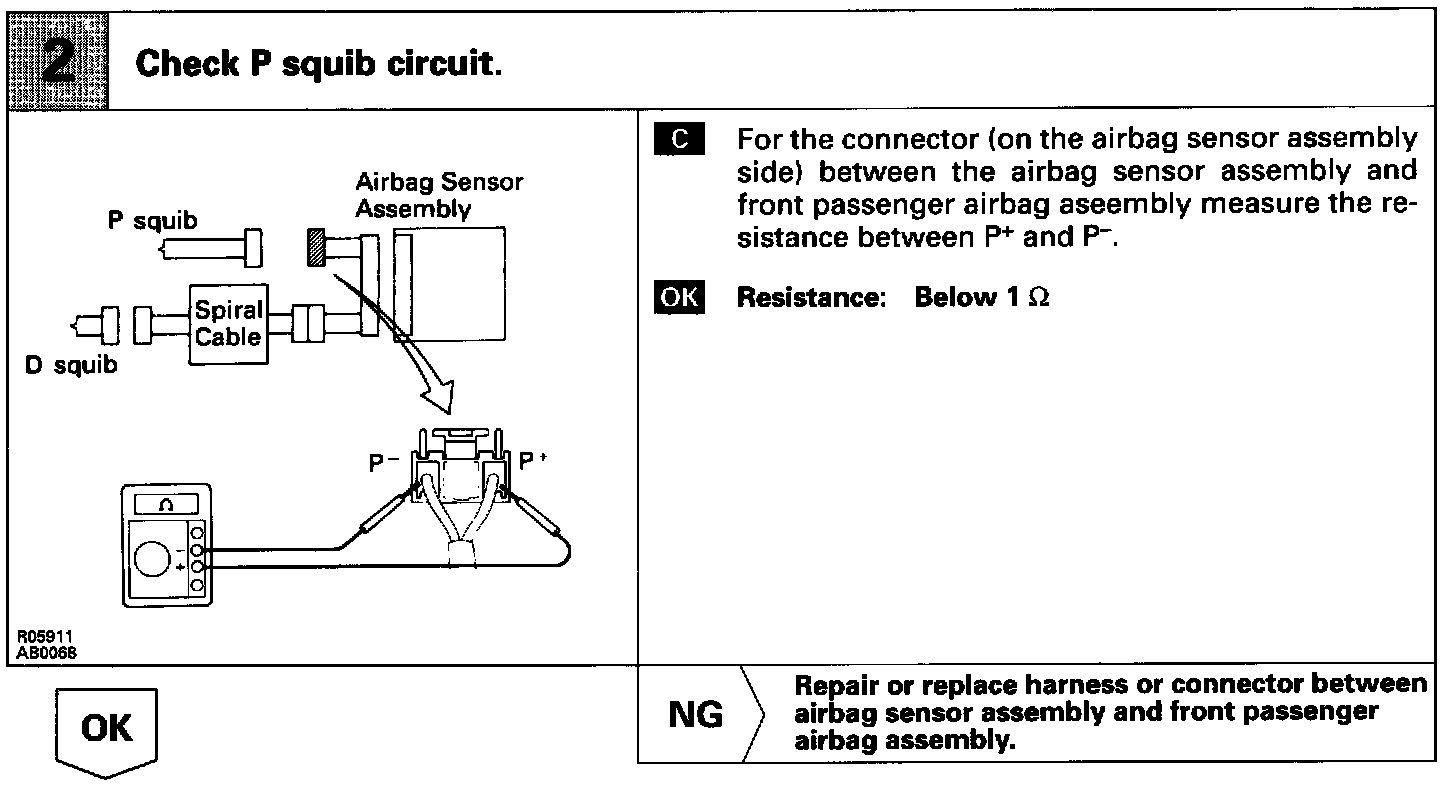

Step 2:

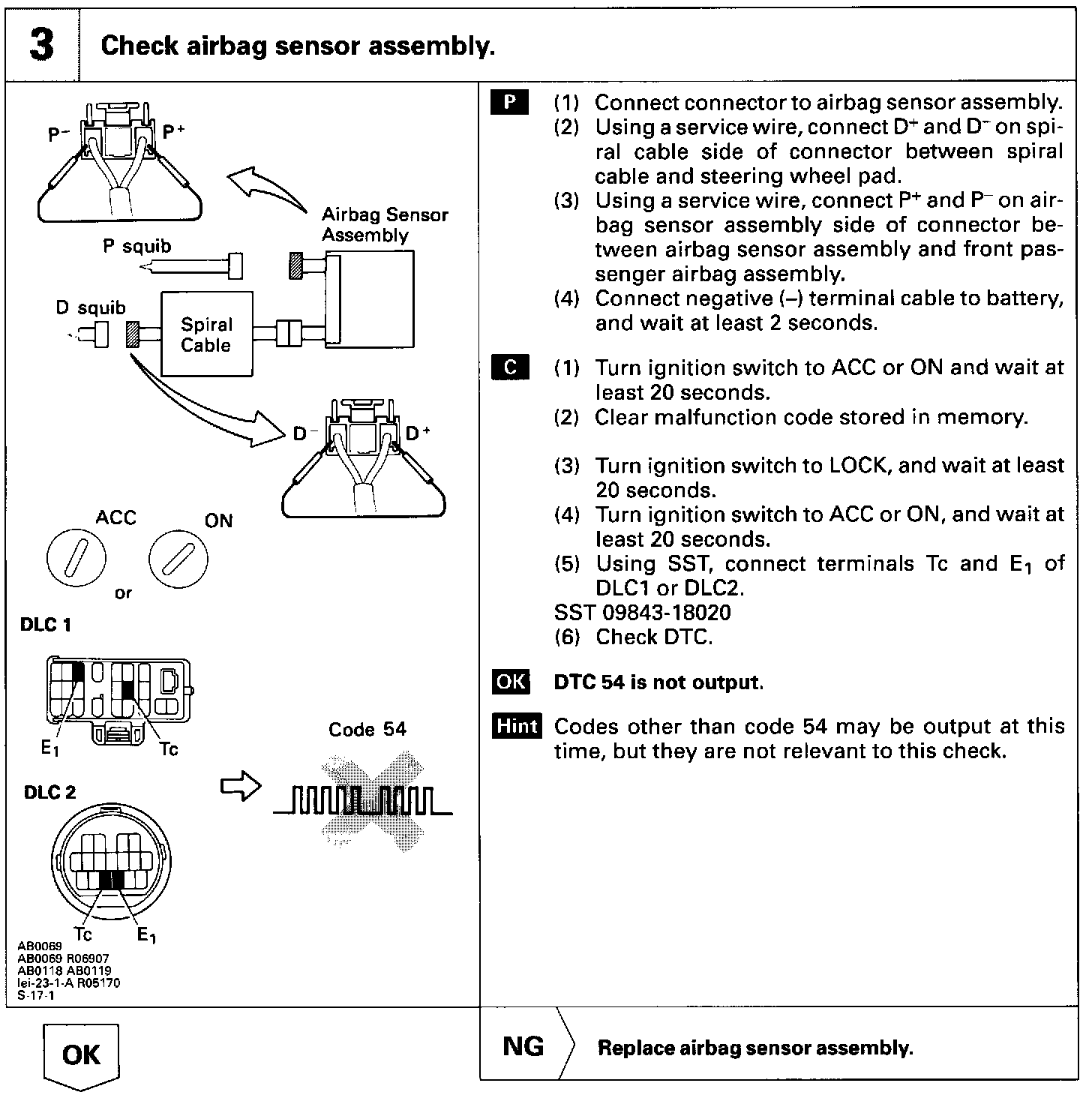

Step 3:

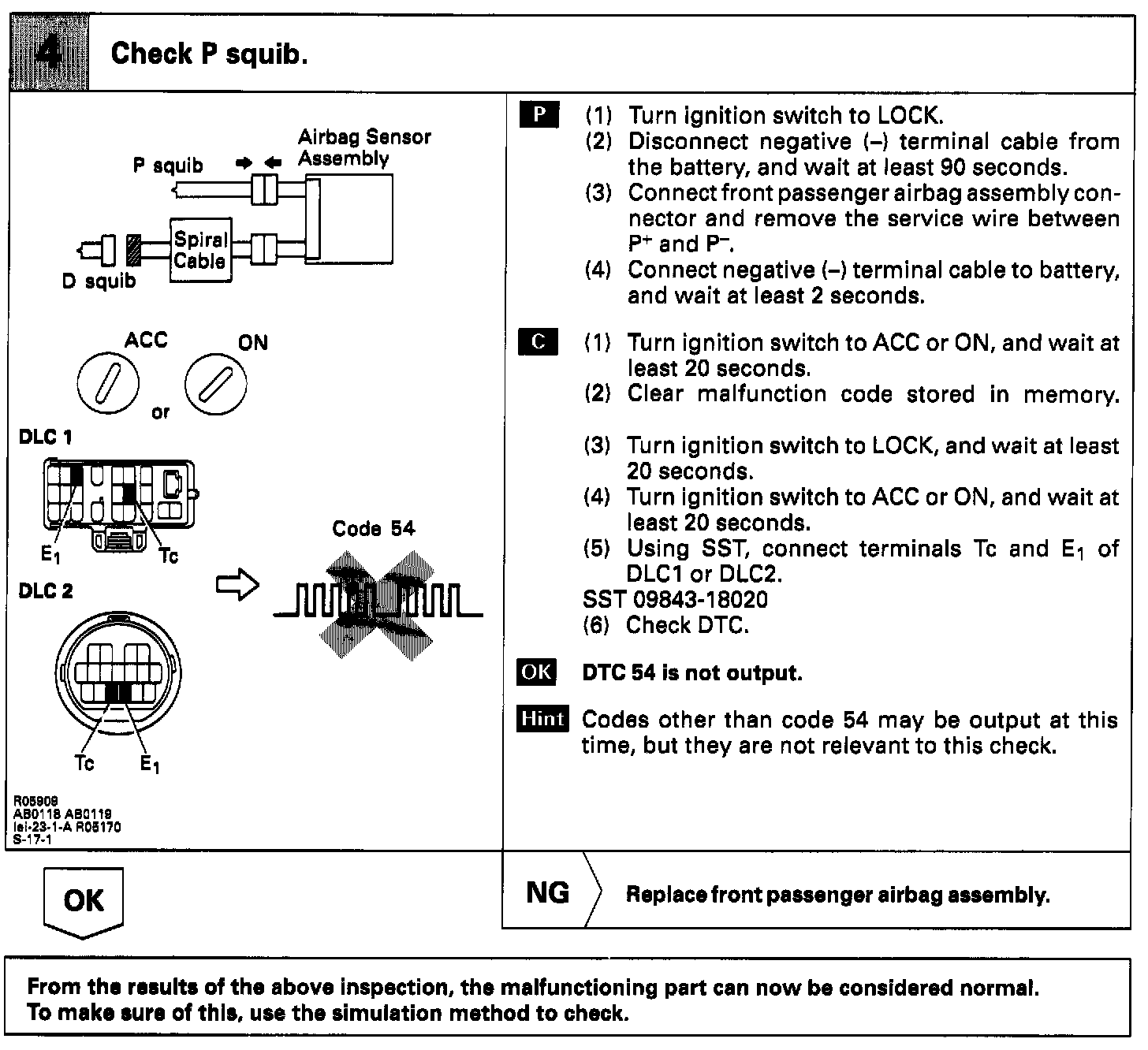

Step 4:

INSPECTION PROCEDURES
