DTC 13

DTC 13 Short in D Squib Circuit

CIRCUIT DESCRIPTION
The D squib circuit consists of the airbag sensor assembly, spiral cable and steering wheel pad (squib).
It causes the airbag to deploy when the airbag deployment conditions are satisfied.
For details of the function of each component, see FUNCTION OF COMPONENTS.
DTC 13 is recorded when a short is detected in the D+ line and D- line of the squib circuit.

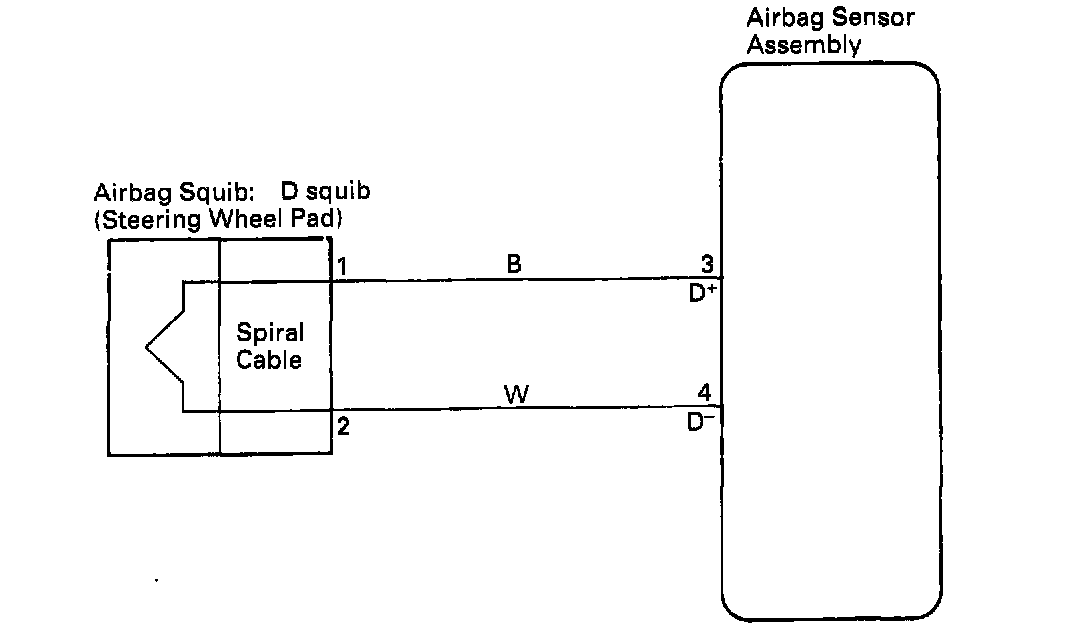

Wiring Diagram:

Step 1:

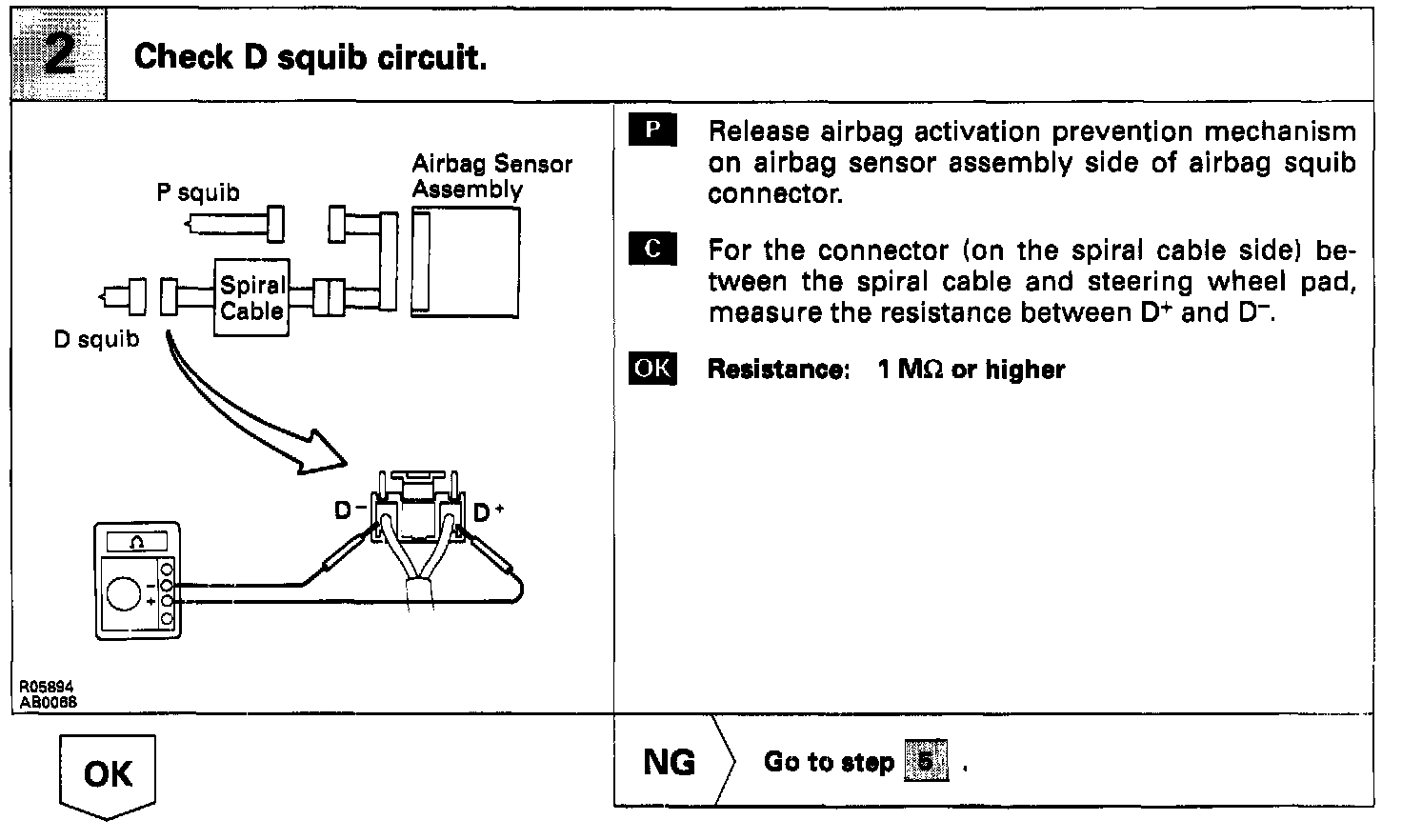

Step 2:

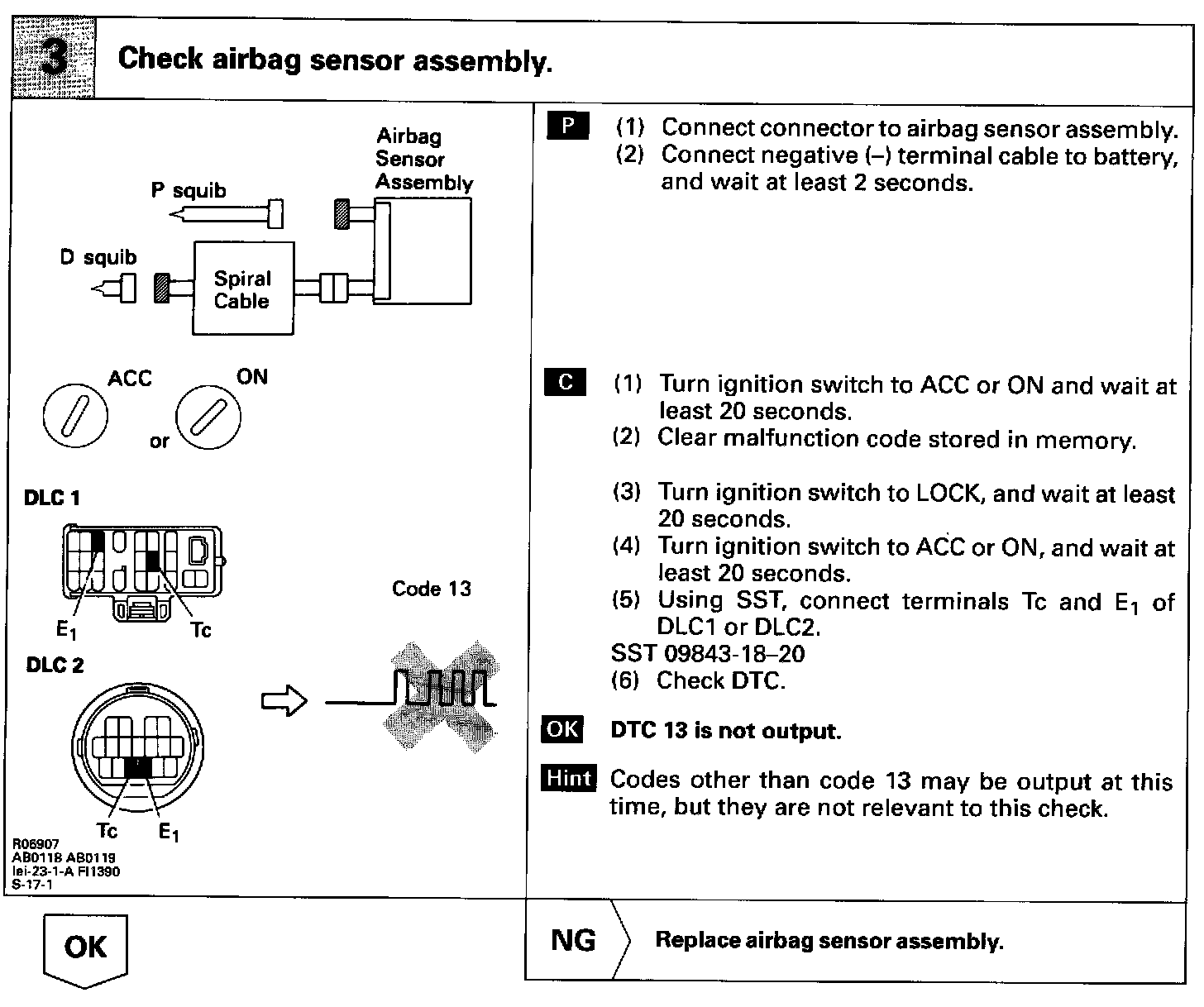

Step 3:

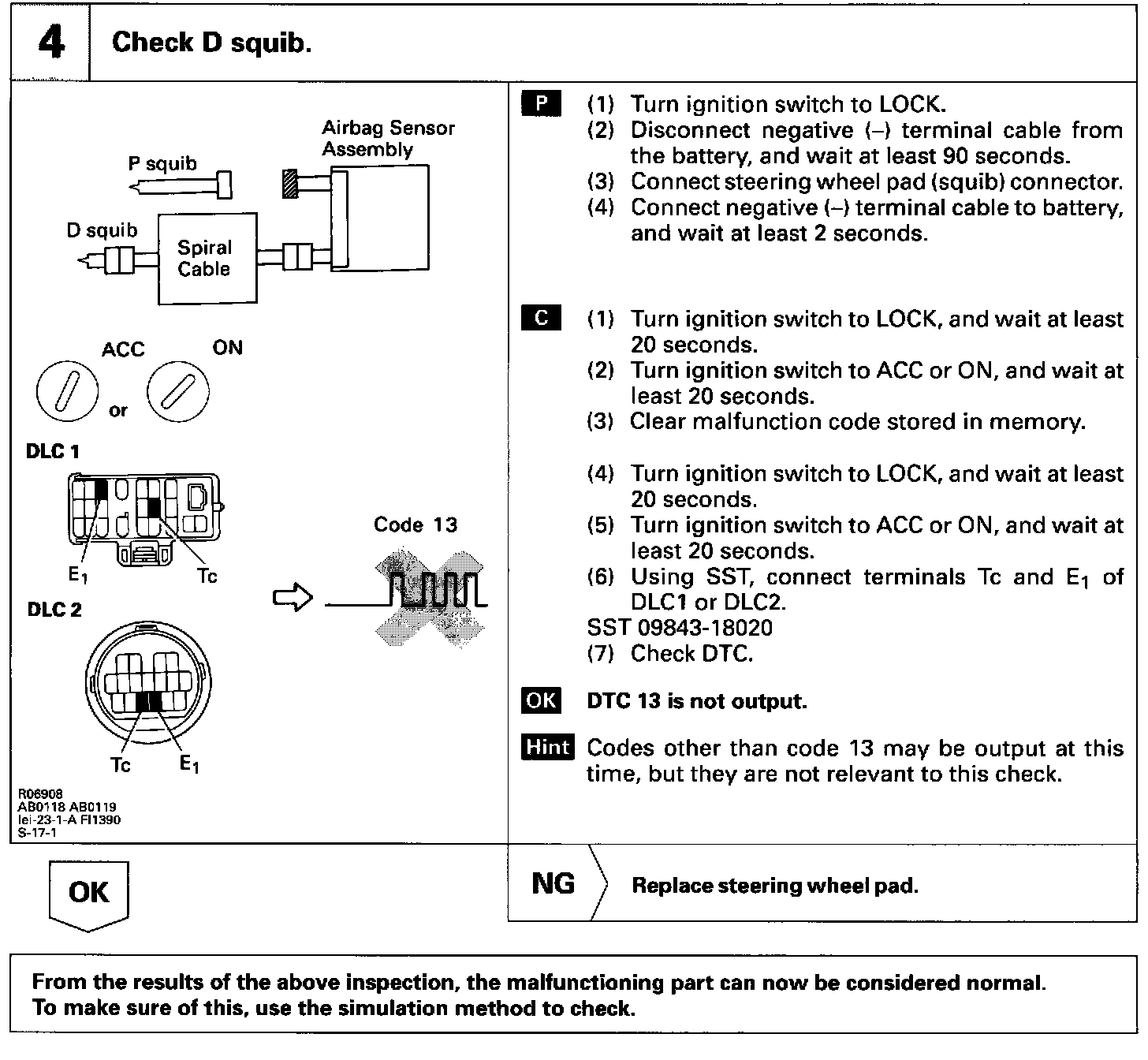

Step 4:

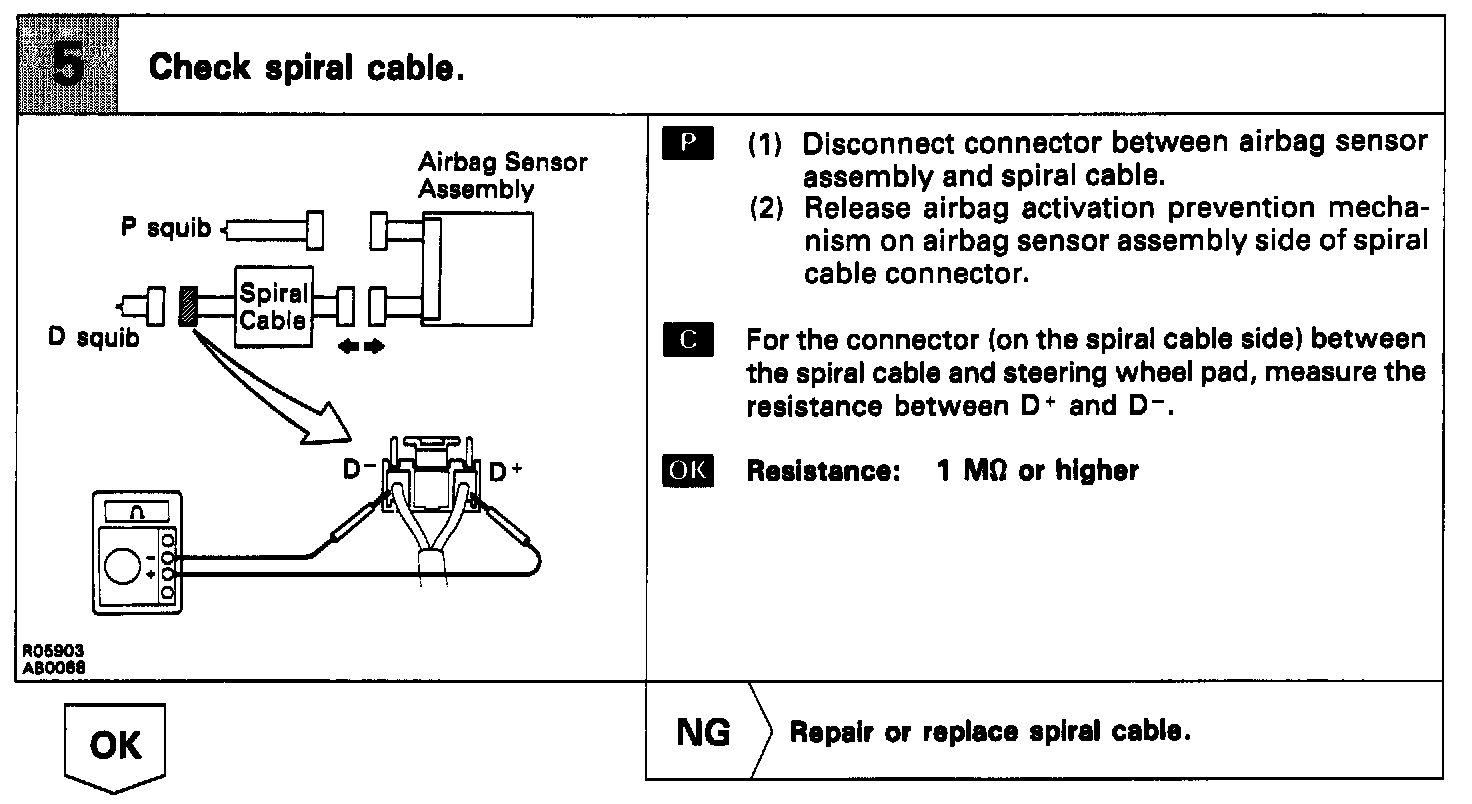

Step 5:

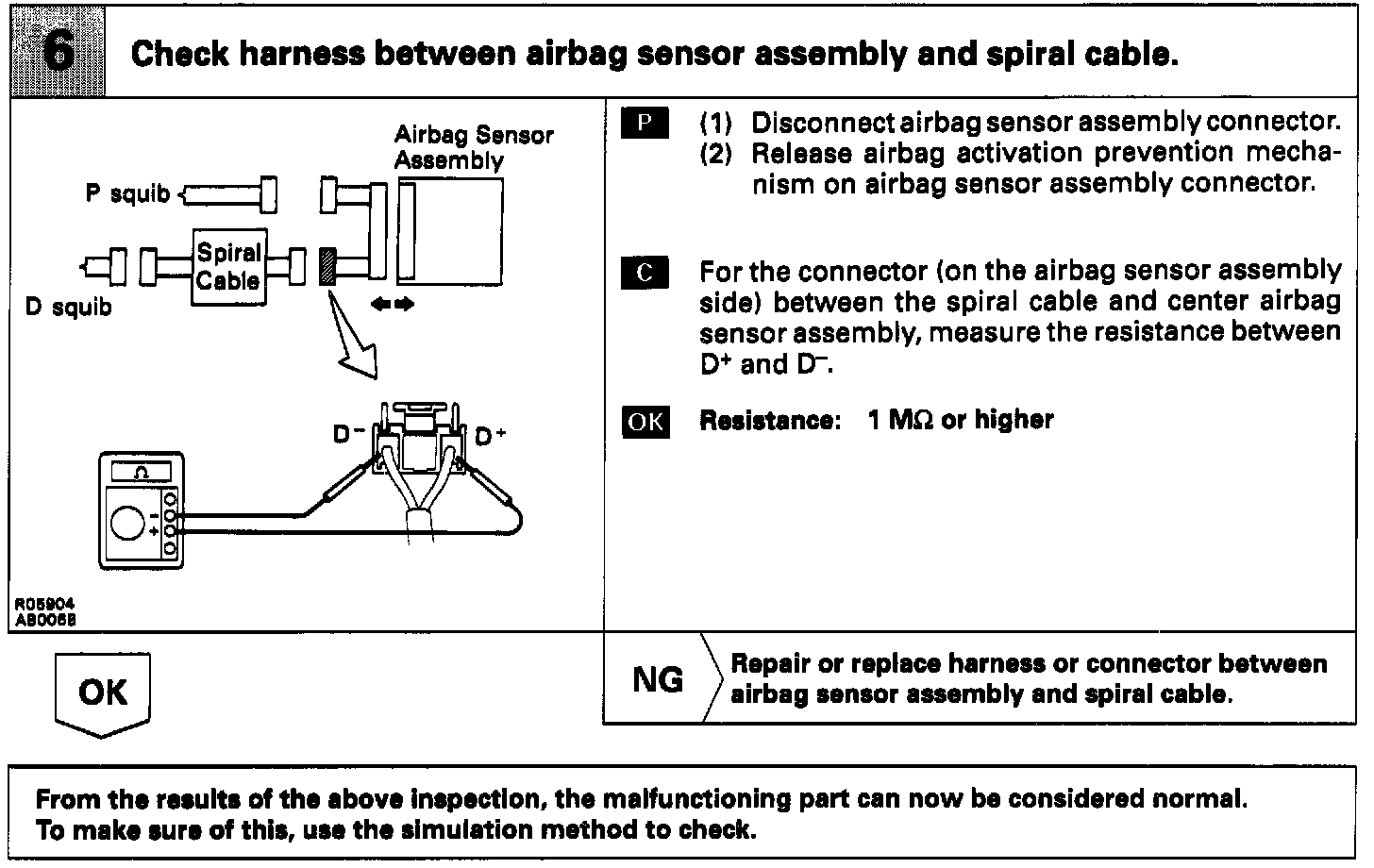

Step 6:

INSPECTION PROCEDURES
