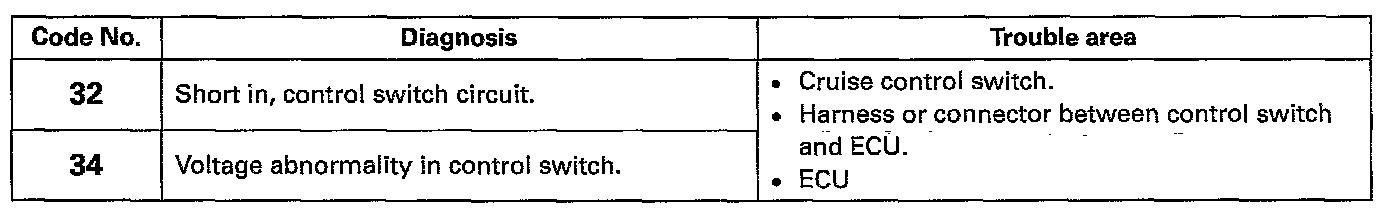

DTC 32

DTC 32,34 Control Switch Circuit (Cruise Control Switch)

CIRCUIT DESCRIPTION

This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signals (each
voltage) to the ECU.

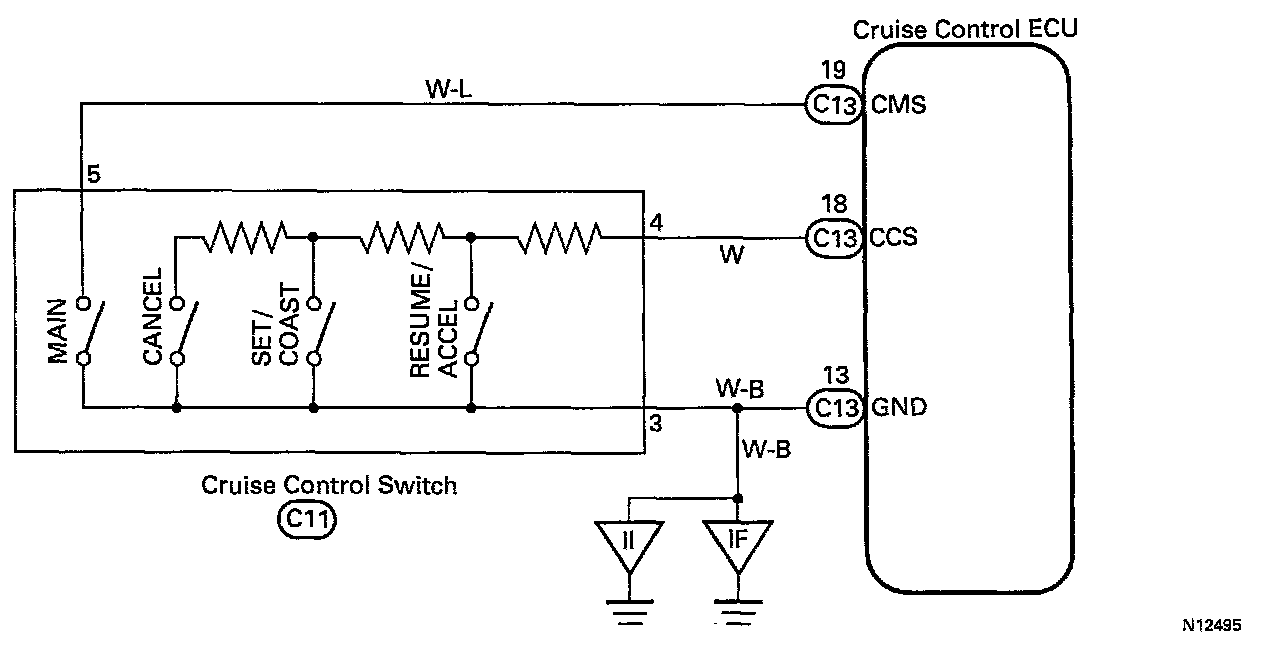

Wiring Diagram:

INSPECTION PROCEDURE

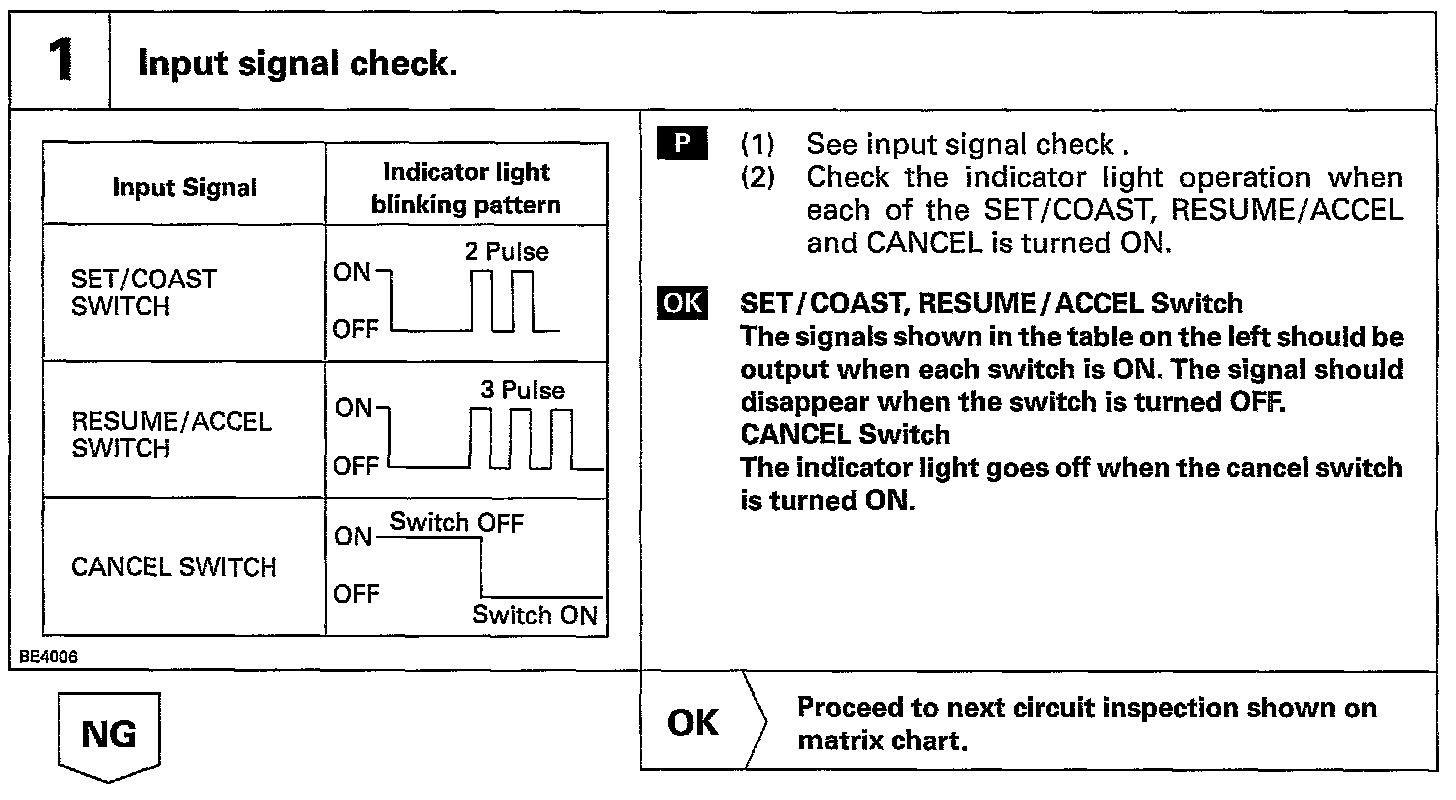

Step 1:

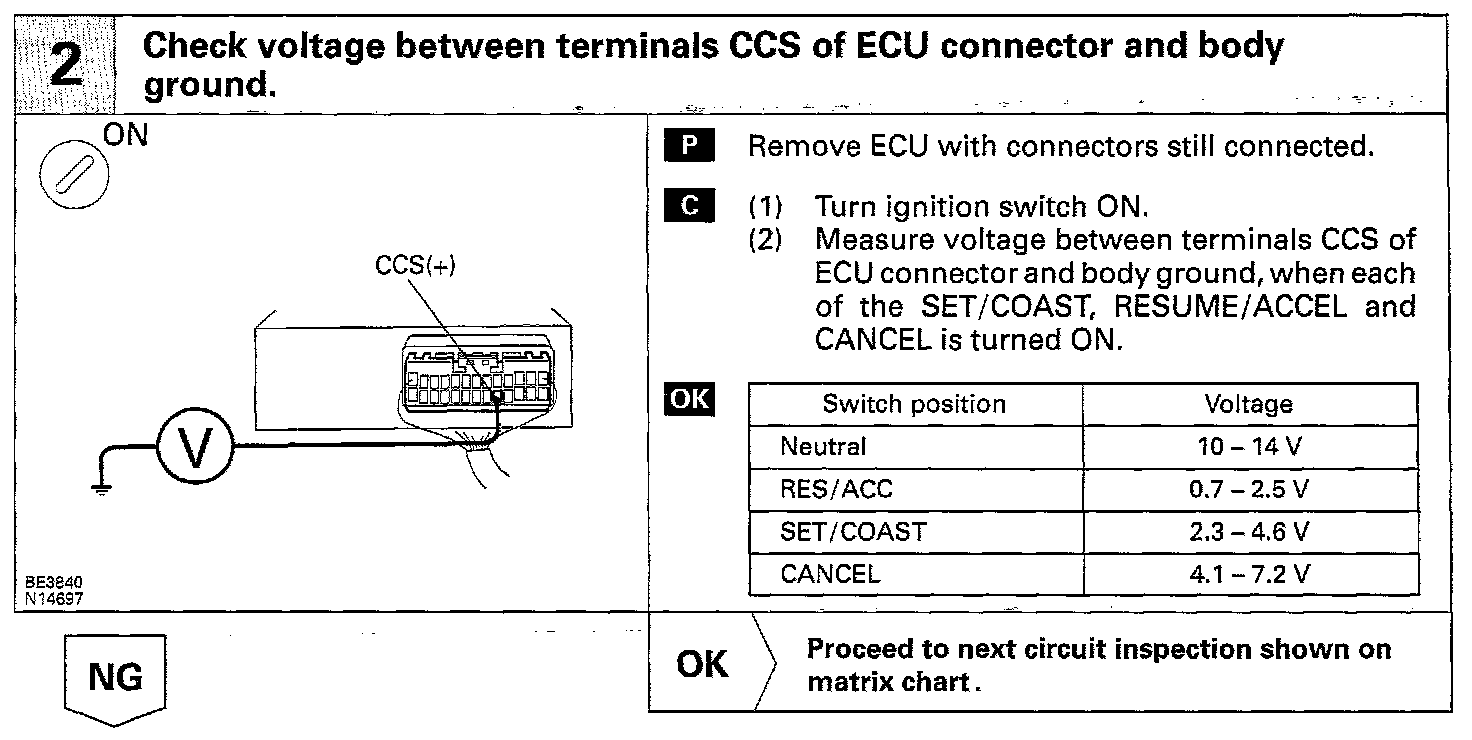

Step 2:

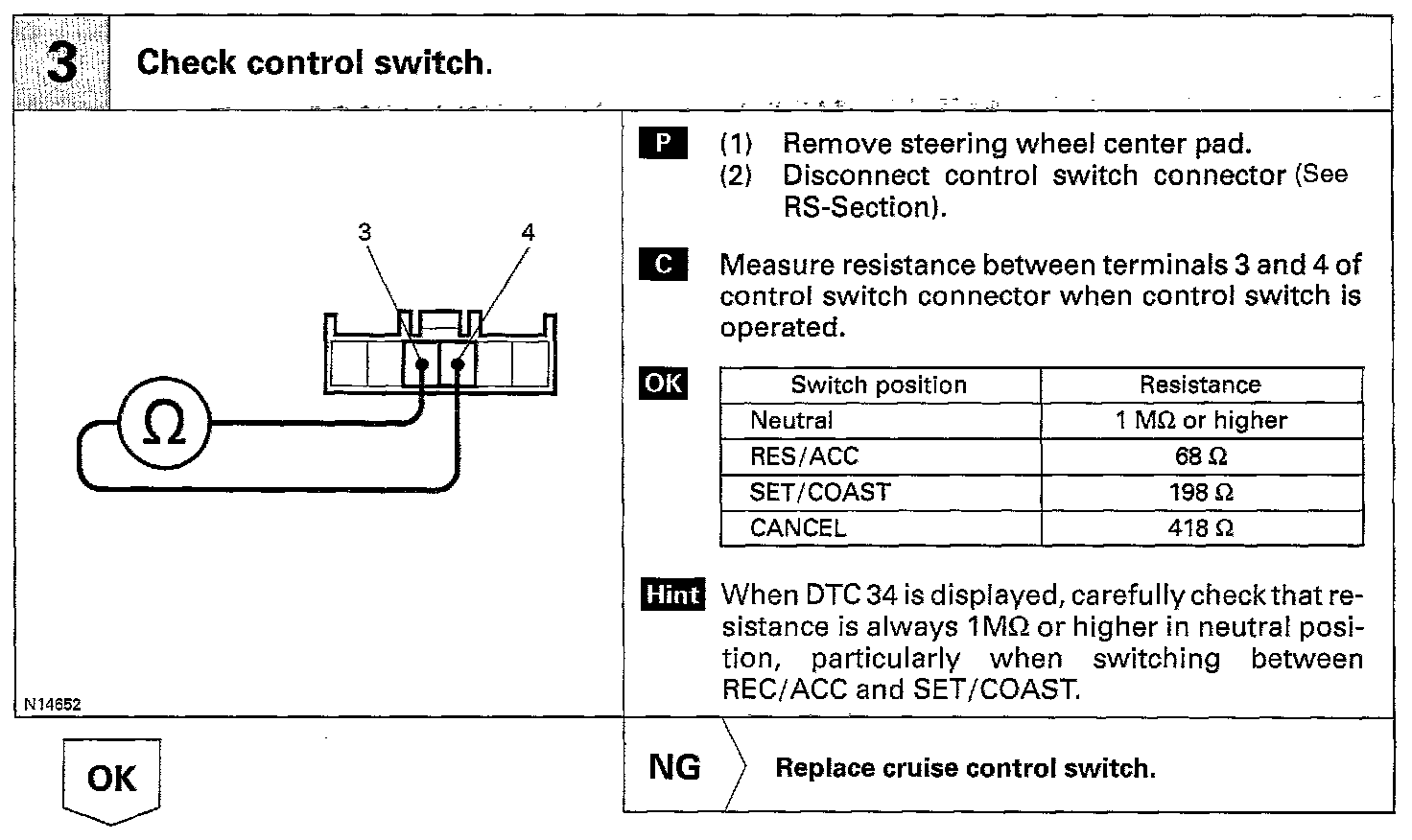

Step 3:

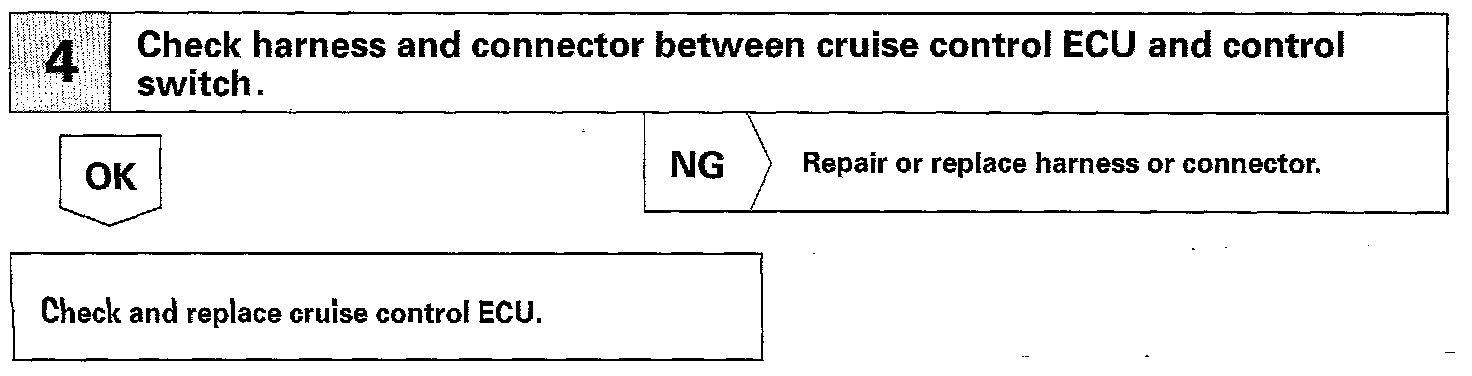

Step 4:
