Actuator Position Sensor Circuit

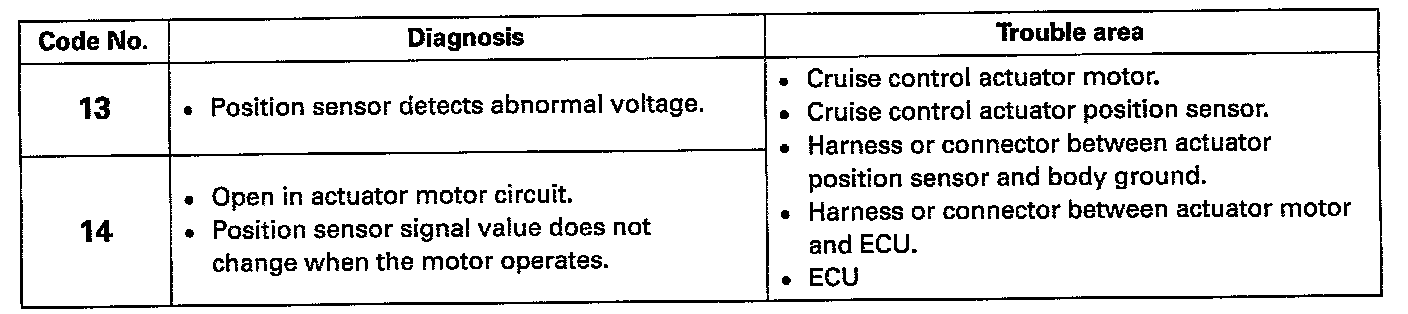

DTC 13,14 Actuator Position Sensor Circuit

CIRCUIT DESCRIPTION

This circuit detects the rotation position of the actuator control plate and sends signal to the ECU.

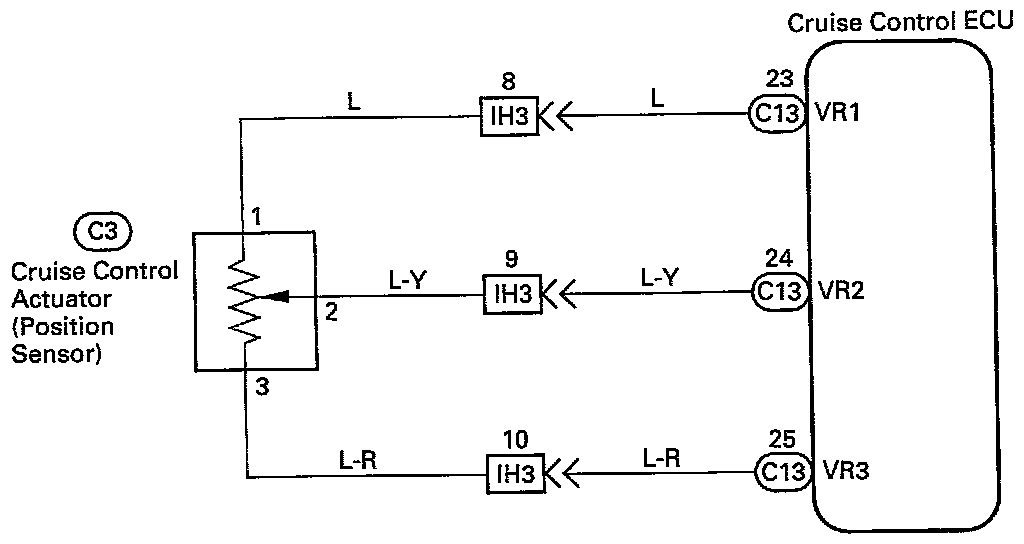

Wiring Diagram:






INSPECTION PROCEDURE

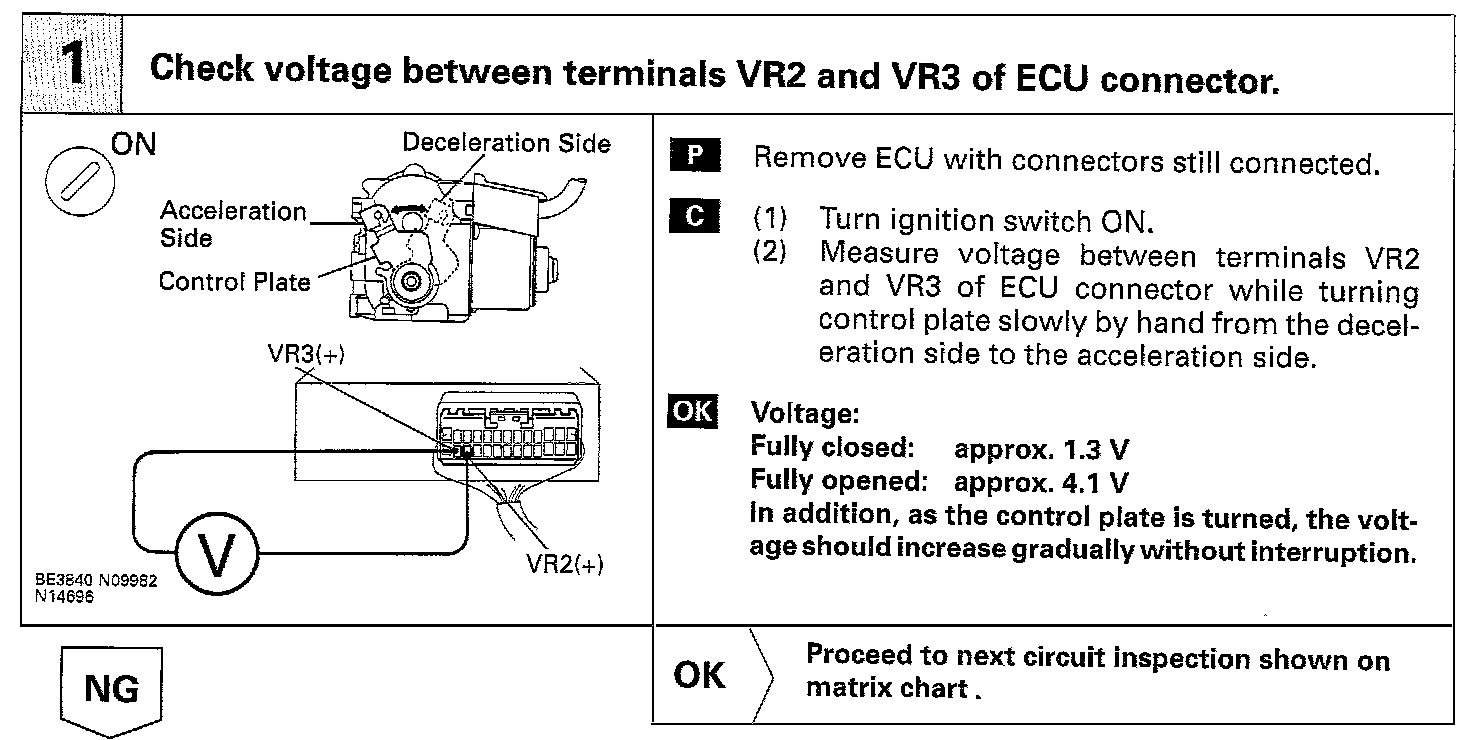

Step 1:






Step 2:

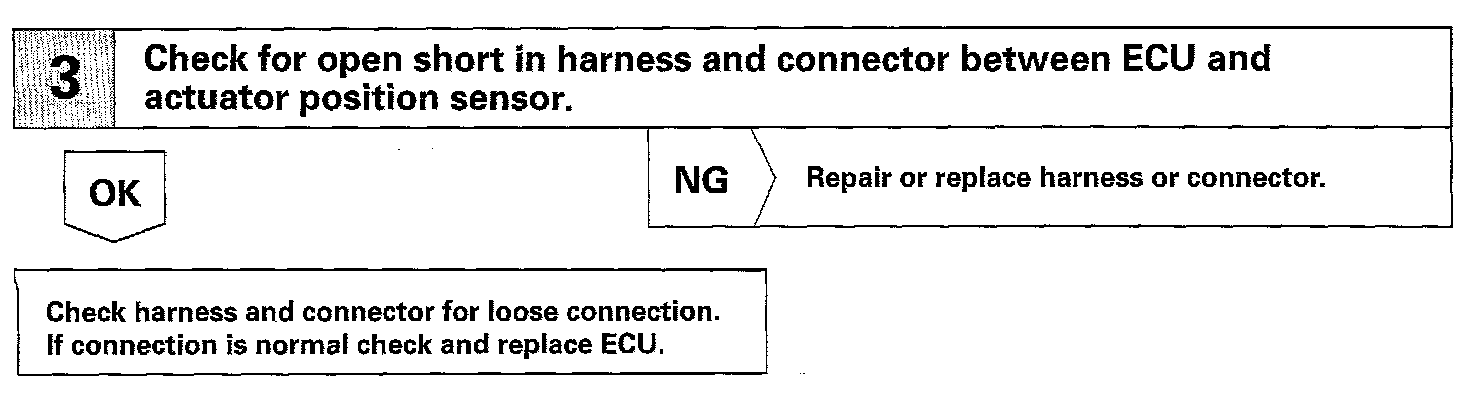

Step 3:
