DTC 11

CIRCUIT INSPECTION

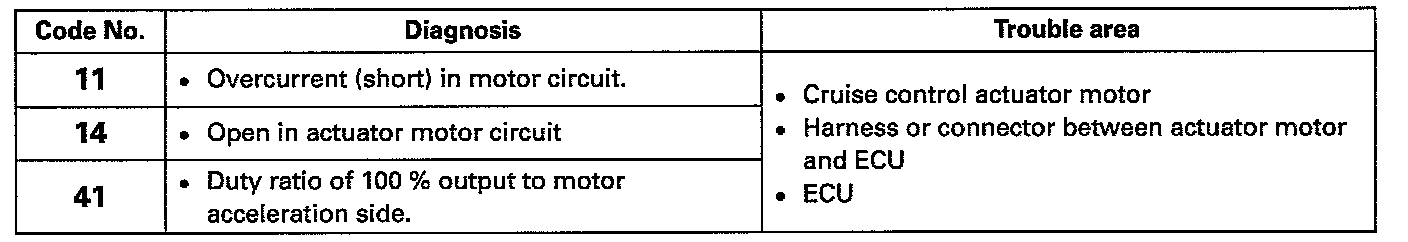

DTC 11,14,41 Actuator Motor Circuit

CIRCUIT DESCRIPTION

The actuator motor is operated by signals from the ECU. Acceleration and deceleration signals are transmitted by changes in the Duty Ratio.

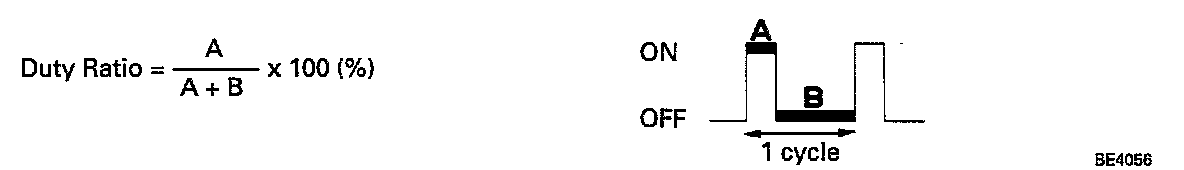

Duty Ratio
The duty ratio is the ratio of the period of continuity in one cycle. For example, if A is period of continuity in one cycle, and B is the period of non-continuity, then:

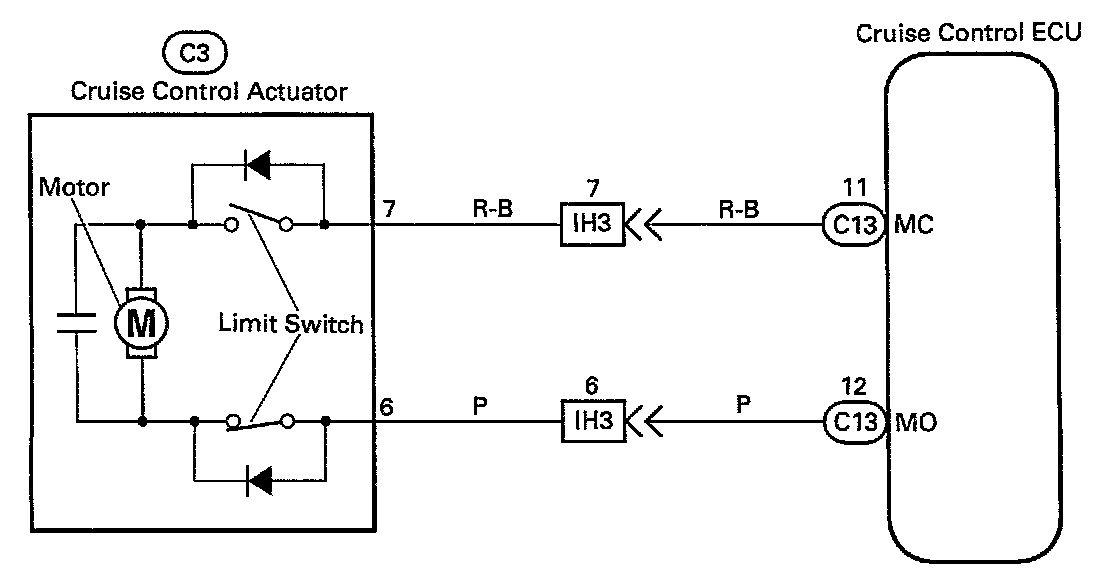

Wiring Diagram:

INSPECTION PROCEDURES

Step 1:

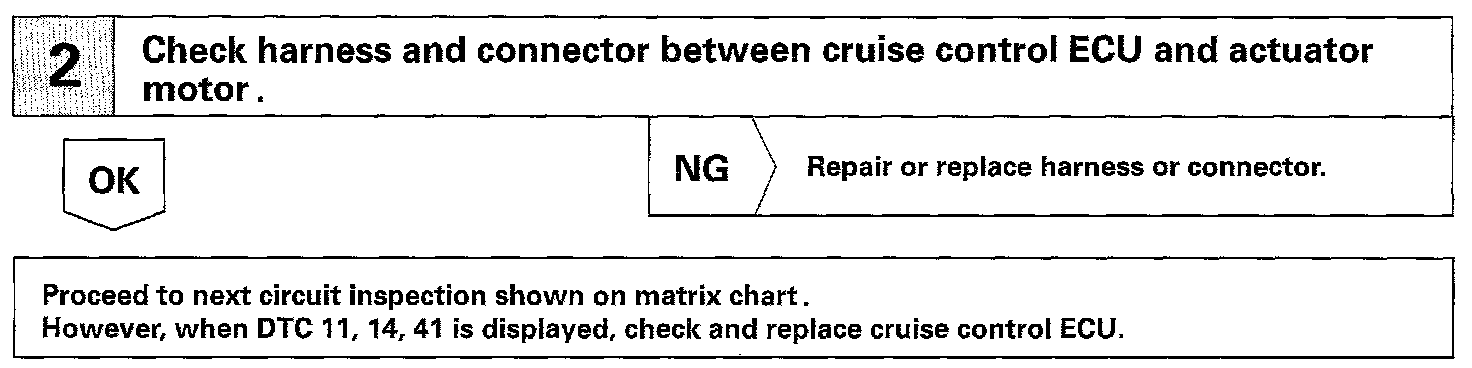

Step 2:
