DTC 41

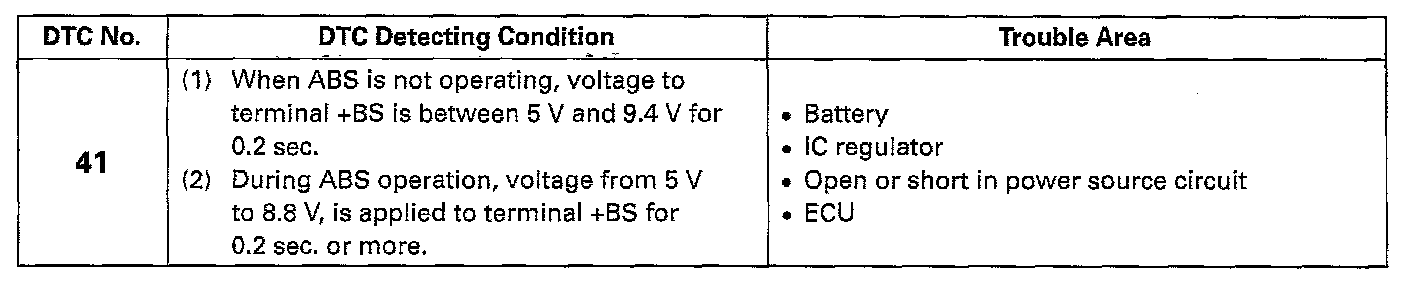

DTC 41 +BS Power Source Circuit 41

CIRCUIT DESCRIPTION
This is the power source for the ECU, hence the CPU, and the actuators.






Fail safe function: If trouble occurs in the power source circuit, the ECU cuts off current to the ABS solenoid relay and prohibits ABS control.
If the voltage applied to terminal +BS becomes 9.9V or more, the warning light goes off and ABS control becomes possible.

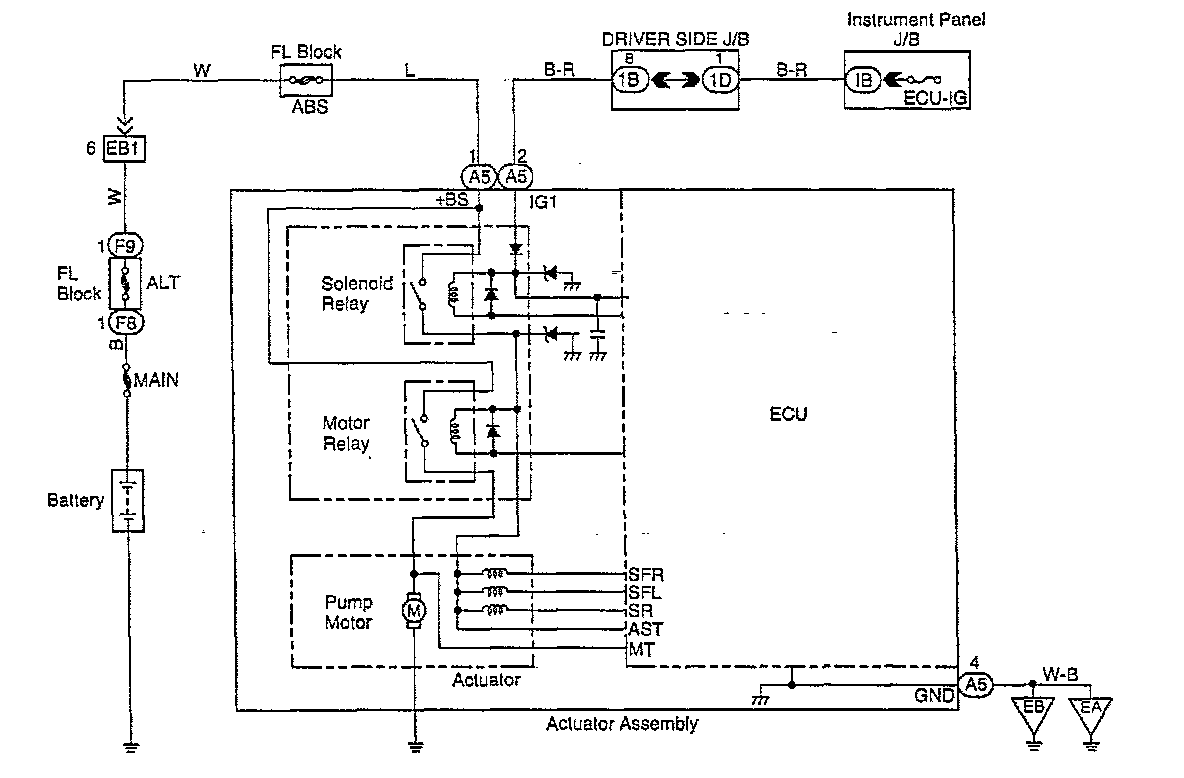

Wiring Diagram:

INSPECTION PROCEDURE

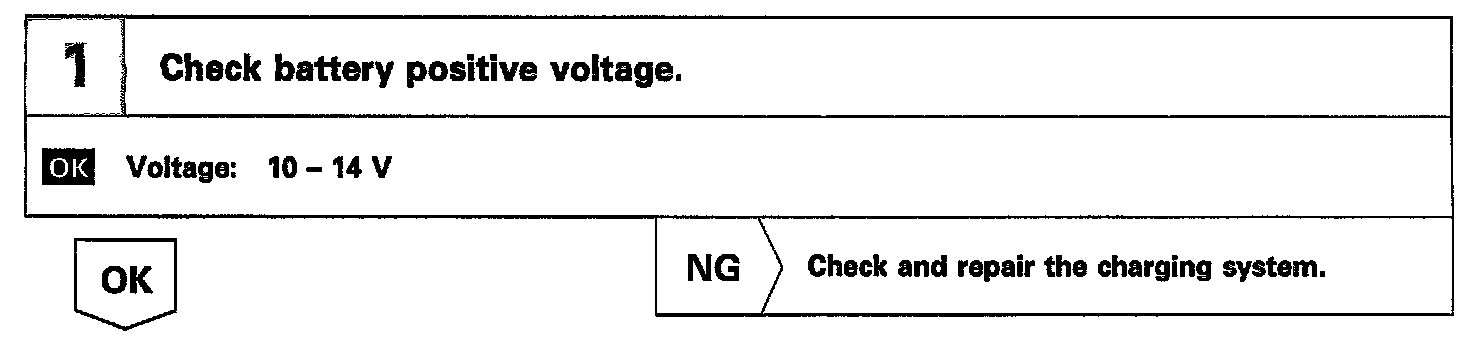

Step 1:

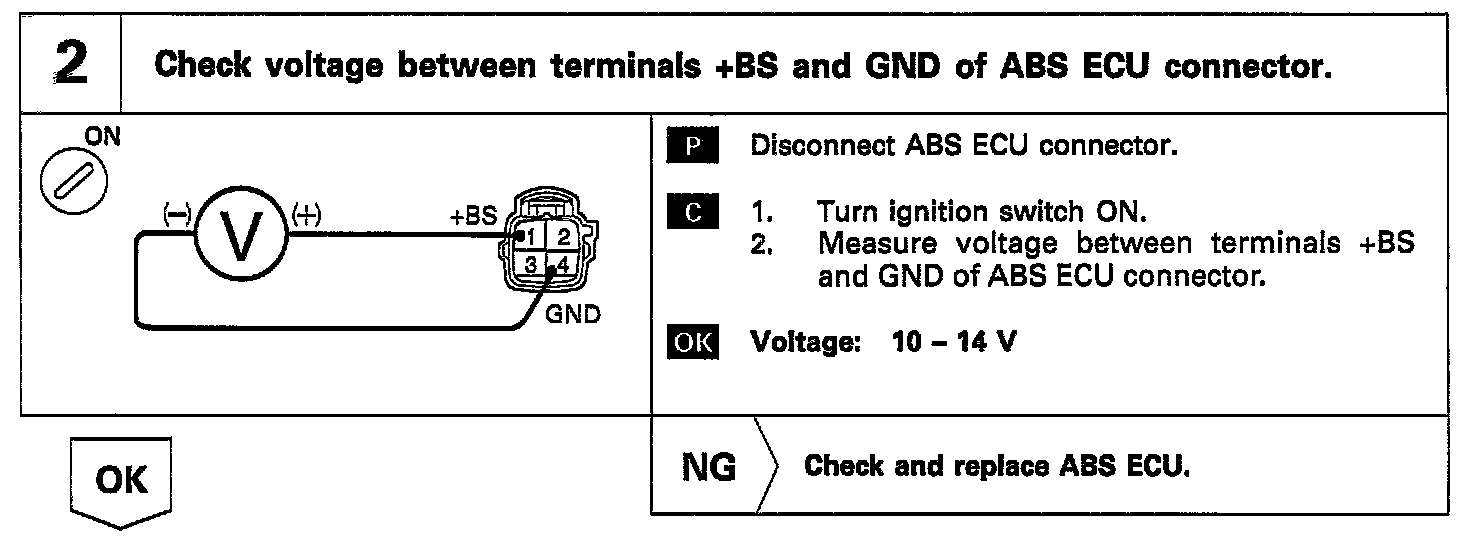

Step 2:

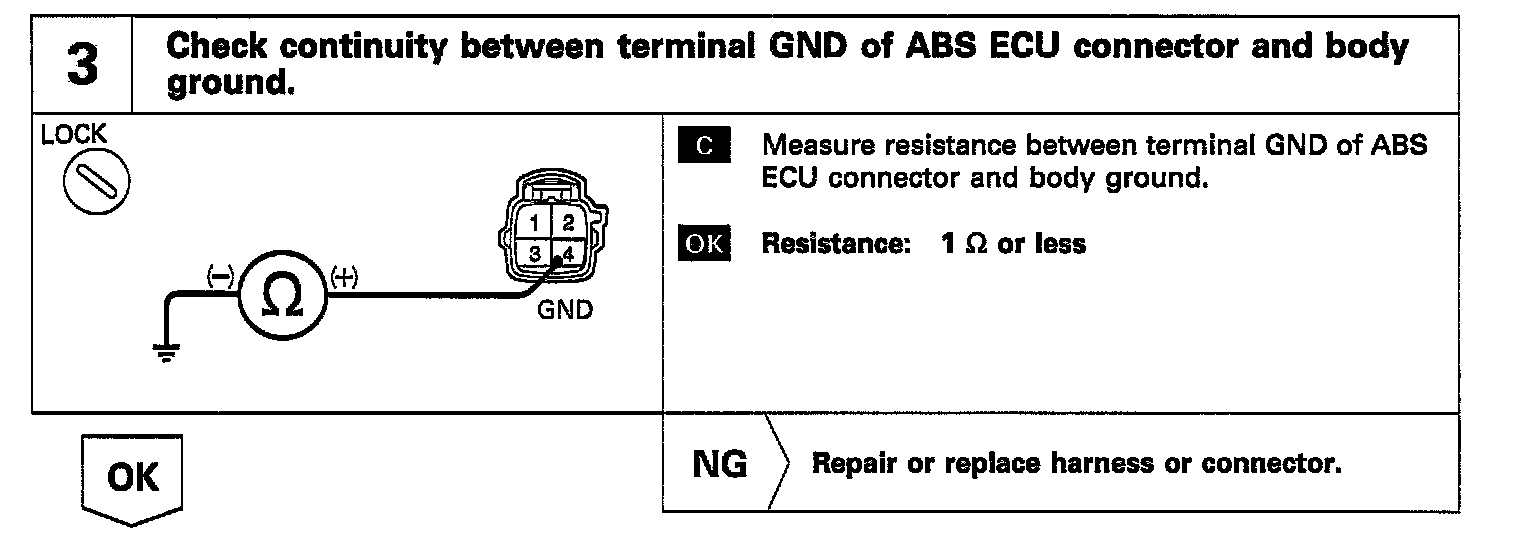

Step 3:

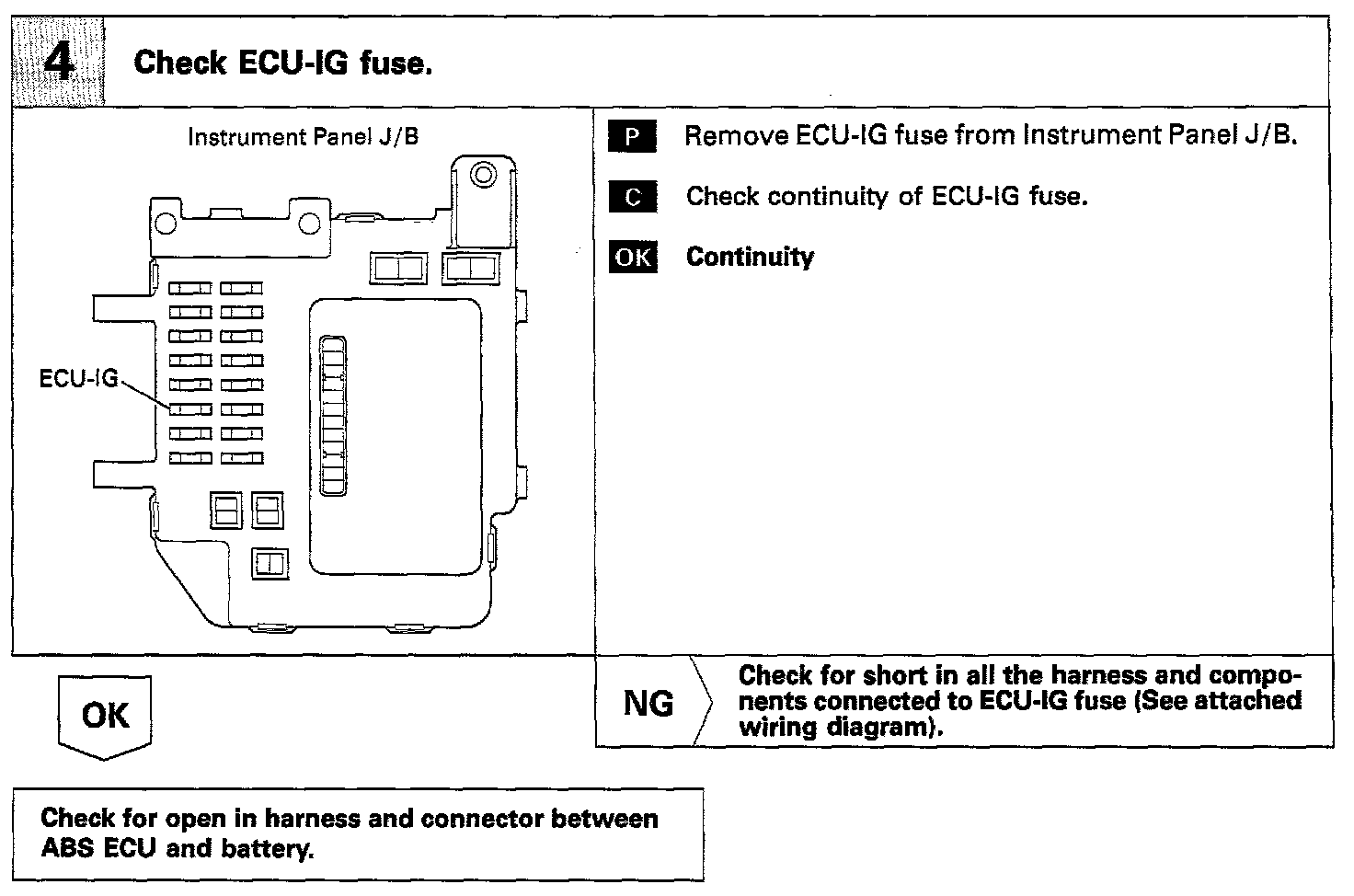

Step 4:
