DTC 37
DTC 37

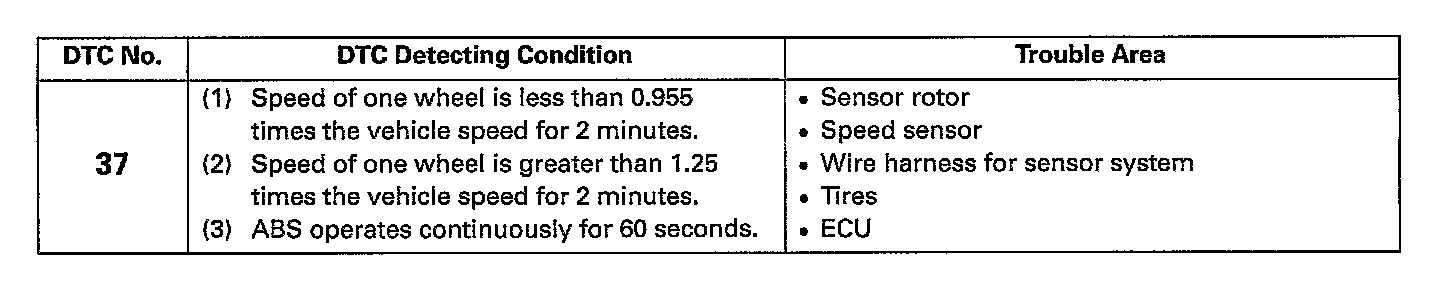

DTC 37 Constant Slip, ABS Continuous Operation, Different Tire Size
Circuit Description:
INSPECTION PROCEDURE

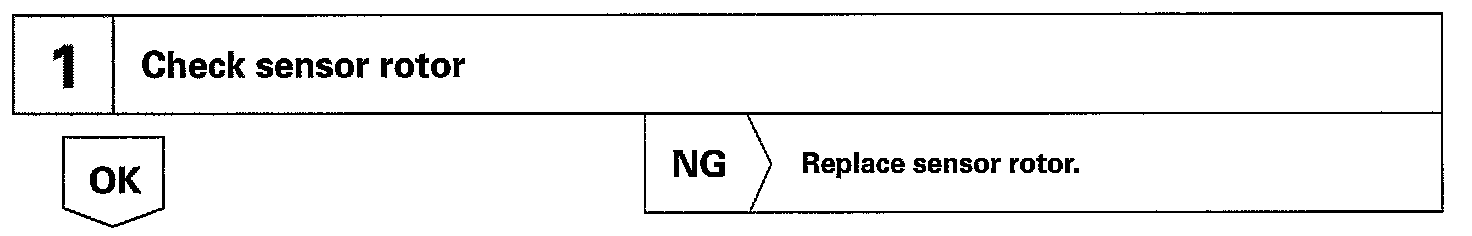

Step 1:

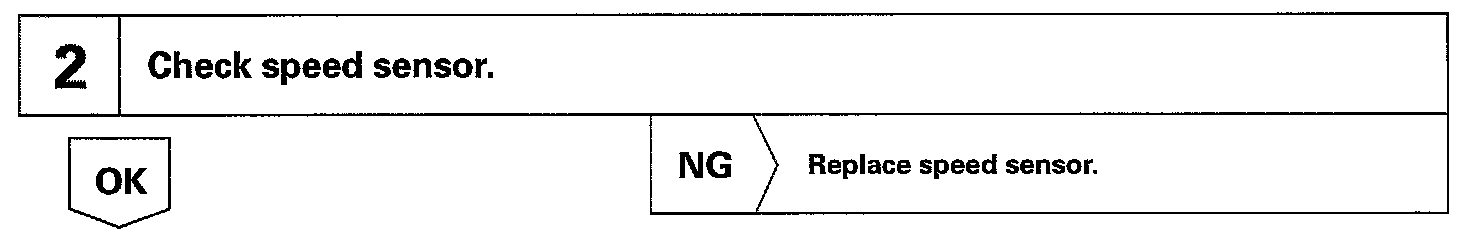

Step 2:

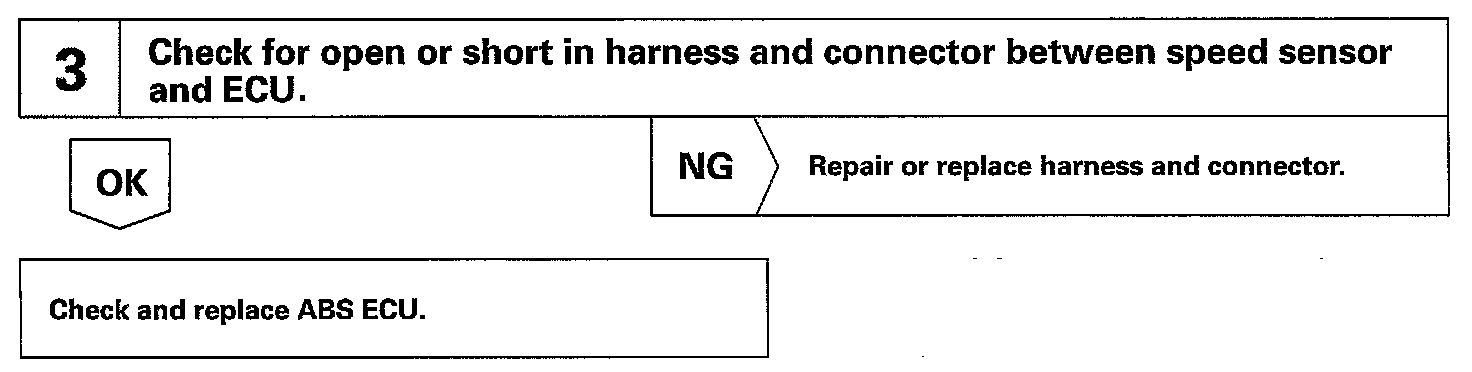

Step 3:

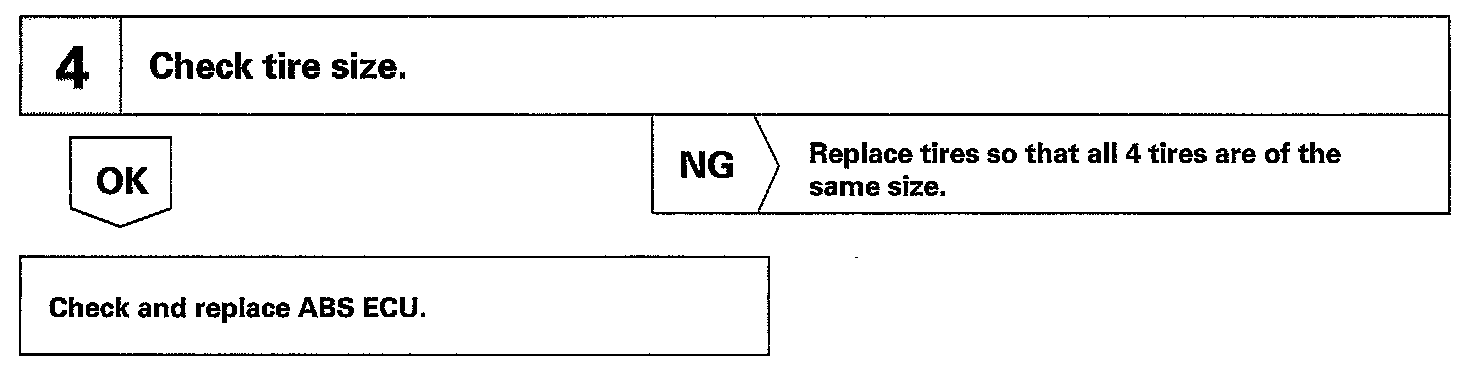

Step 4:
