DTC 35

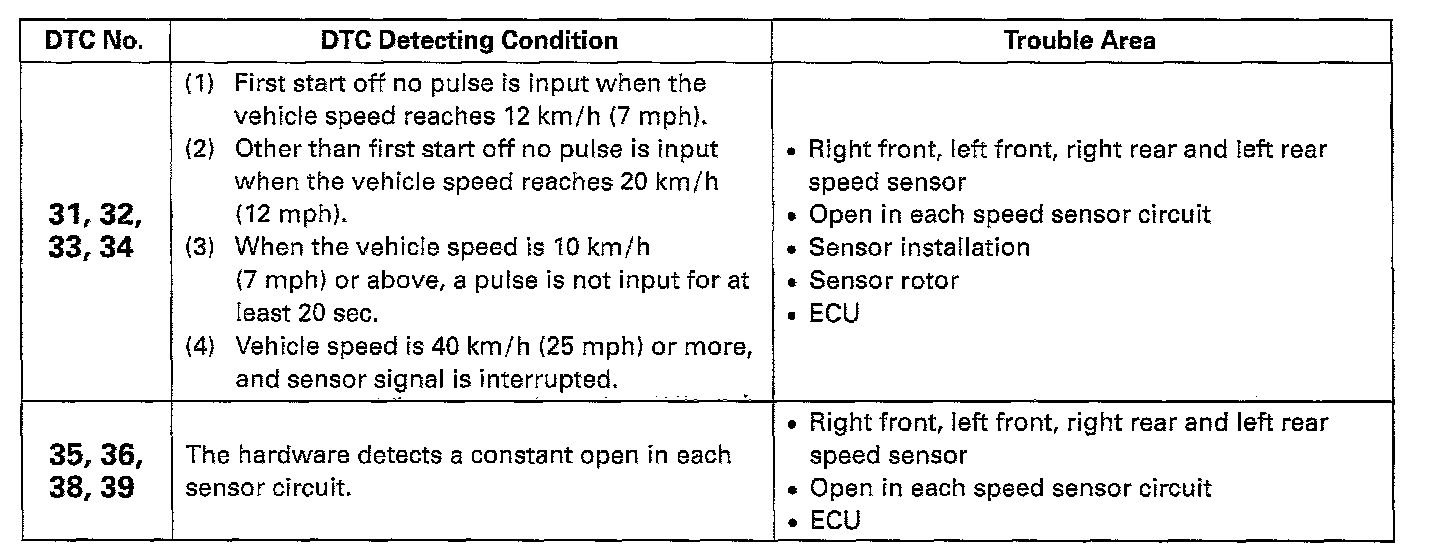

DTC 31,32,33,34,35,36,38,39. Speed Sensor Circuit

CIRCUIT DESCRIPTION
The speed sensor detects the wheel speed and sends the appropriate signals to the ECU. These signals are used to control the ABS system. The front and rear rotors each have 48 serrations.

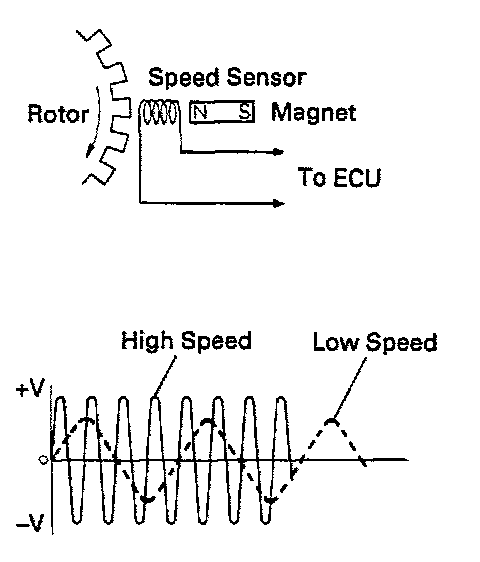

When the rotors rotate, the magnetic field emitted by the permanent magnet in the speed sensor generates an AC voltage. Since the frequency of this AC voltage changes in direct proportion to the speed of the rotor, the frequency is used by the ECU to detect the speed of each wheel.






HINT: DTC Nos. 31 and 35 are for the right front speed sensor.
DTC Nos. 32 and 36 are for the left front speed sensor.
DTC Nos. 33 and 38 are for the right rear speed sensor.
DTC Nos. 34 and 39 are for the left rear speed sensor.

Fail safe function: If trouble occurs in the speed sensor circuit, the ECU cuts off current to the ABS solenoid relay and prohibits ABS control.

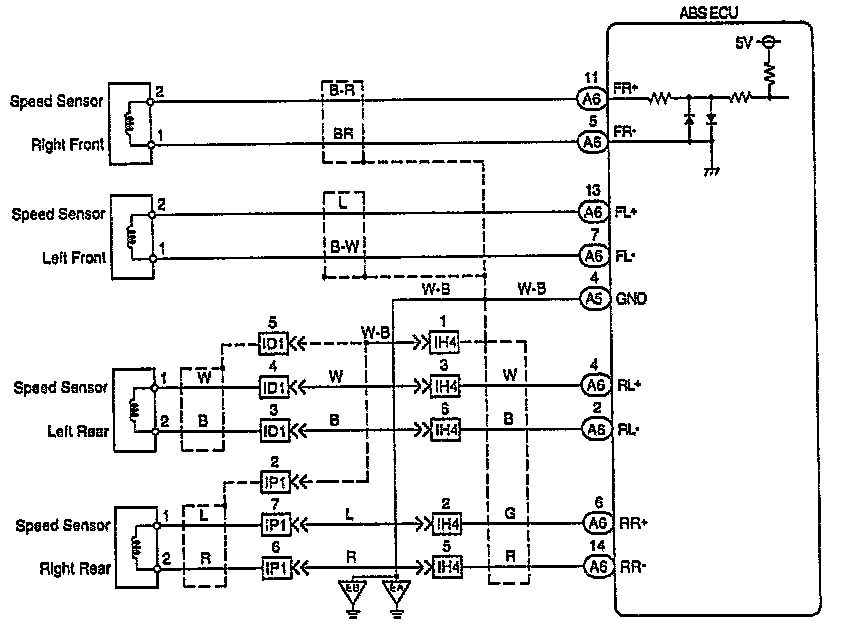

Wiring Diagram:





INSPECTION PROCEDURE

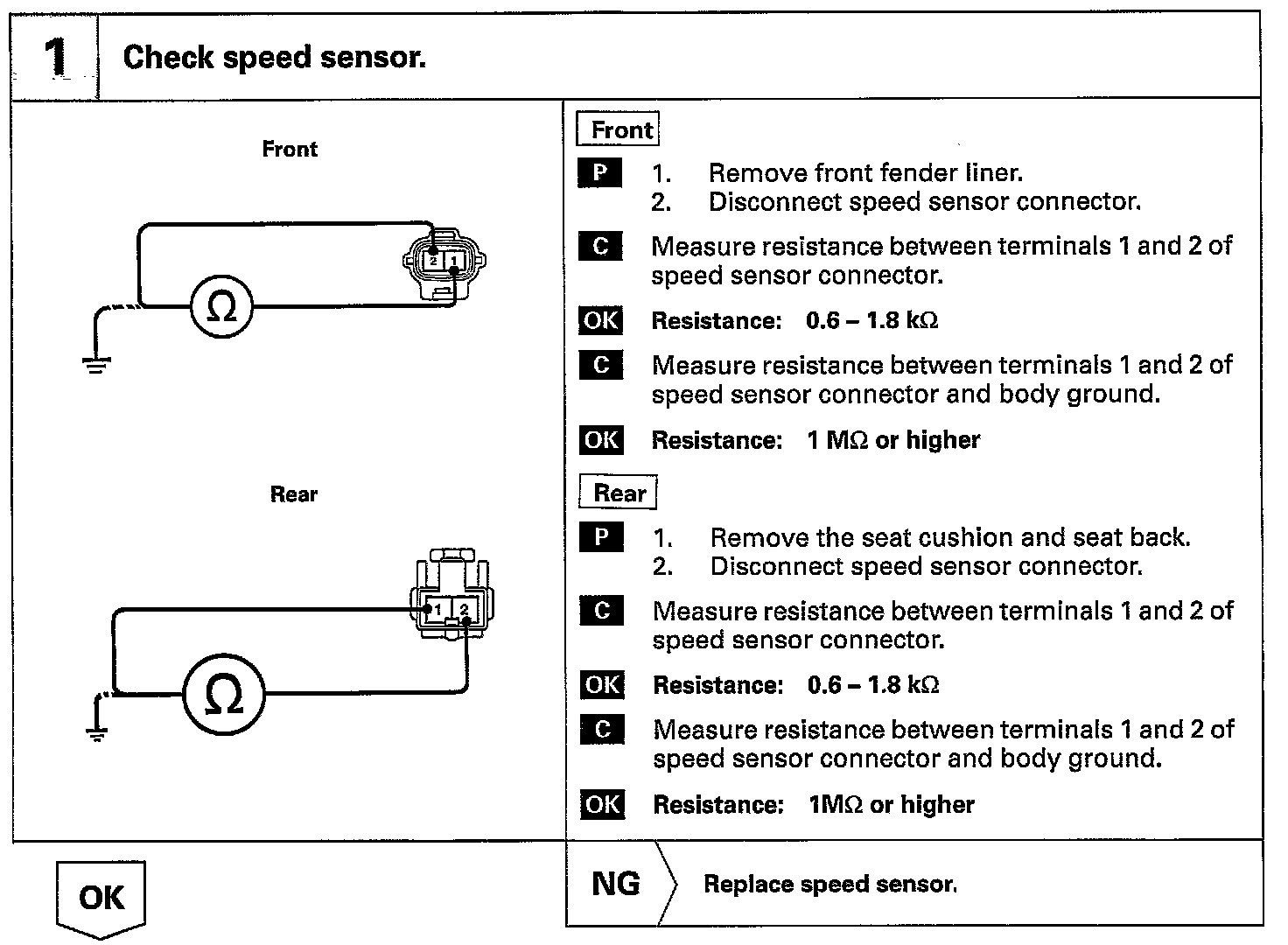

Step 1:






NOTICE: Check the speed sensor signal last.

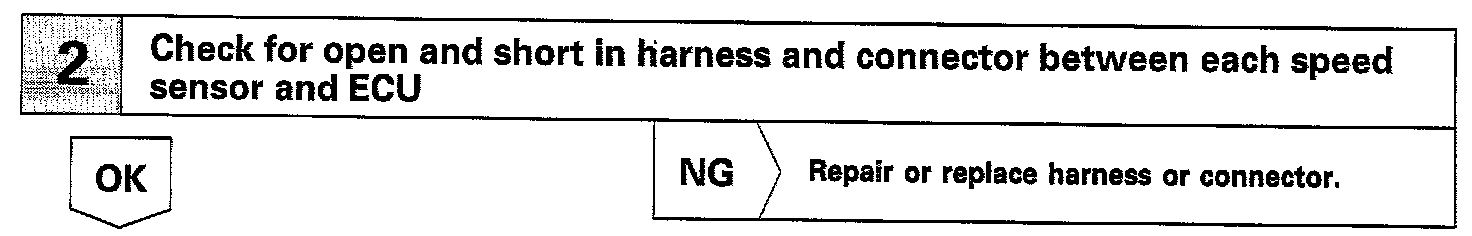

Step 2:

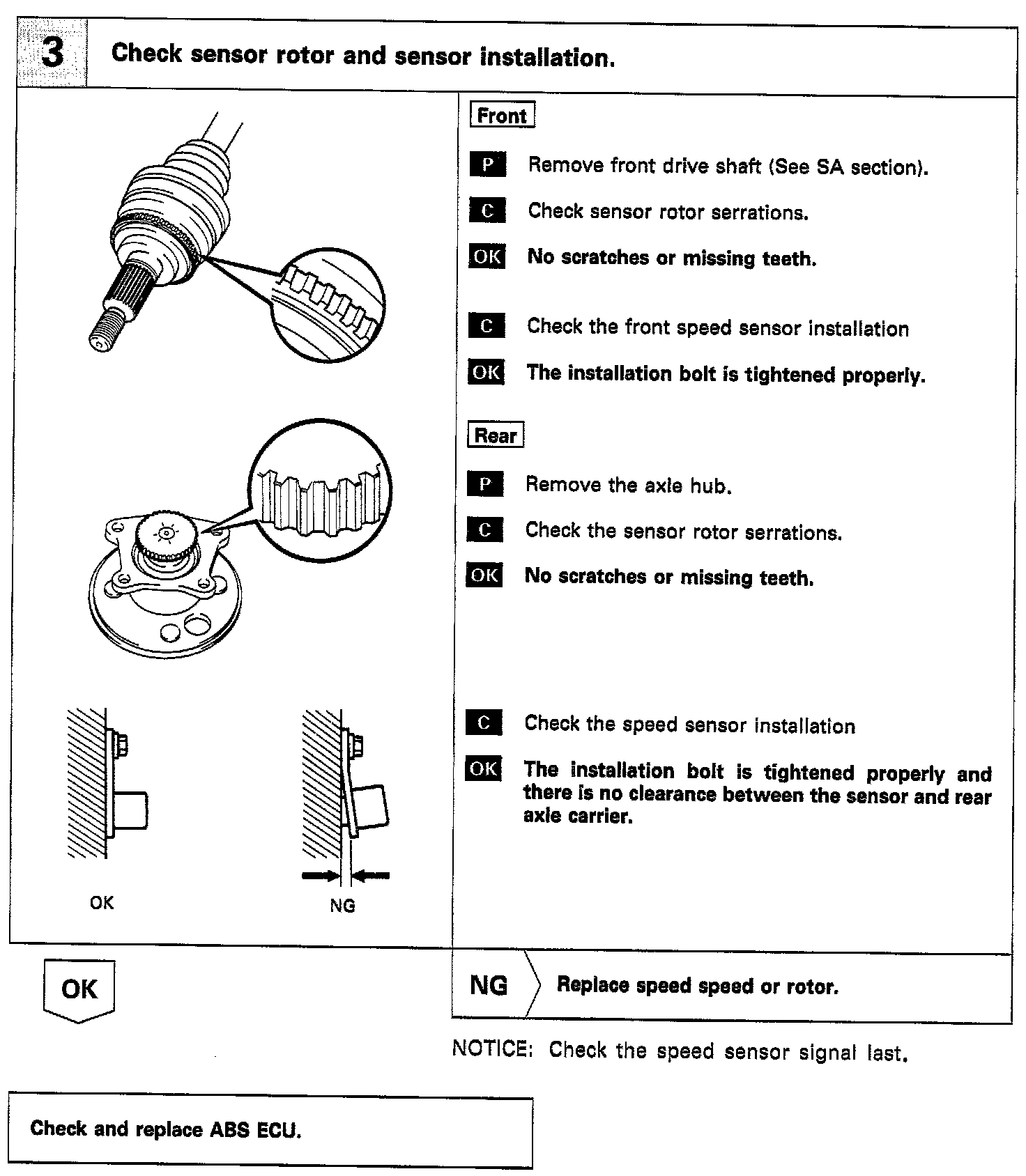

Step 3:
