DTC 11

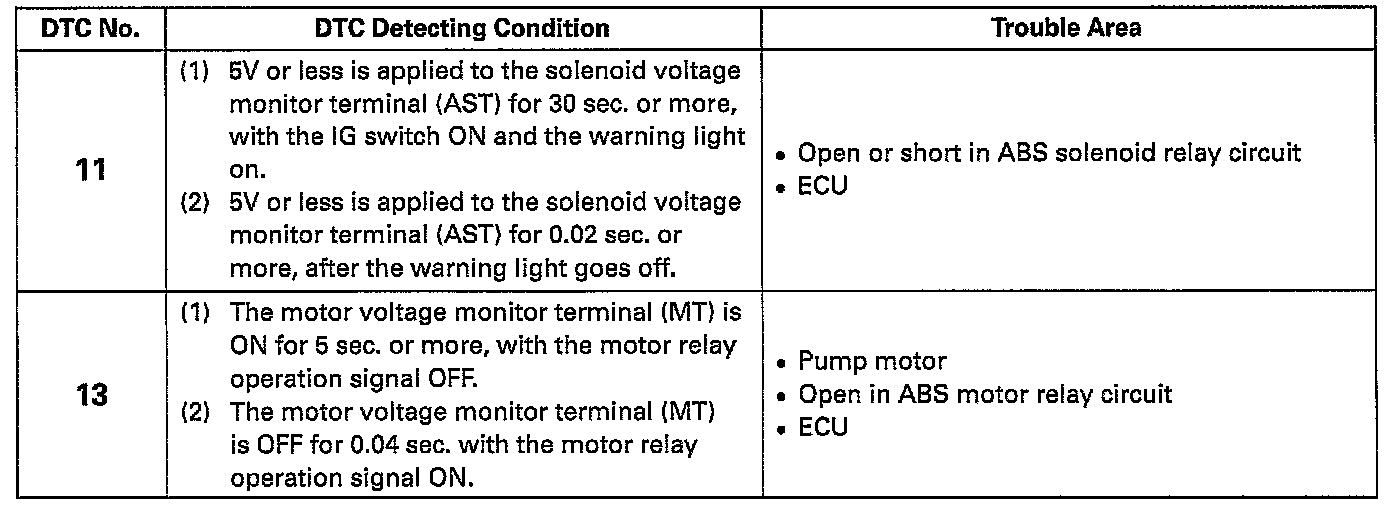

DTC 11, 13 ABS Solenoid and Motor Relay Circuit

CIRCUIT DESCRIPTION
The solenoid relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the initial check is OK, the relay goes on. The motor relay supplies power to the ABS pump motor. While the ABS is activated, the ECU switches the motor relay ON and operates the ABS pump motor.






Fail safe function; If trouble occurs in the control (solenoid) relay circuit, the ECU cuts off current to the ABS solenoid relay and prohibits ABS control.

Wiring Diagram:

INSPECTION PROCEDURE

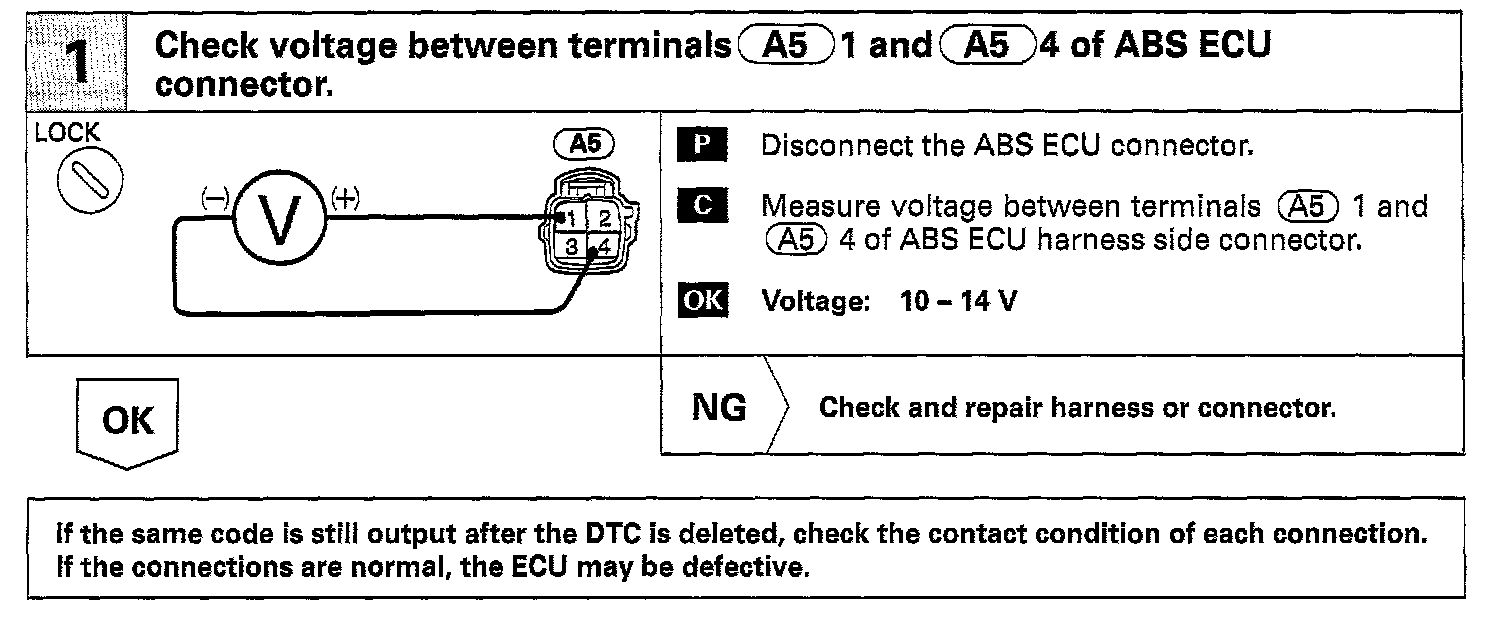

Step 1:
