Engine Control System

If a malfunction code is displayed during the DTC check, check the applicable circuit as listed in the table below.
For details of each code, refer to the Trouble Code Charts under "Diagnostic Charts".

NOTE: Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.

DTC CHART (SAE CONTROLLED)

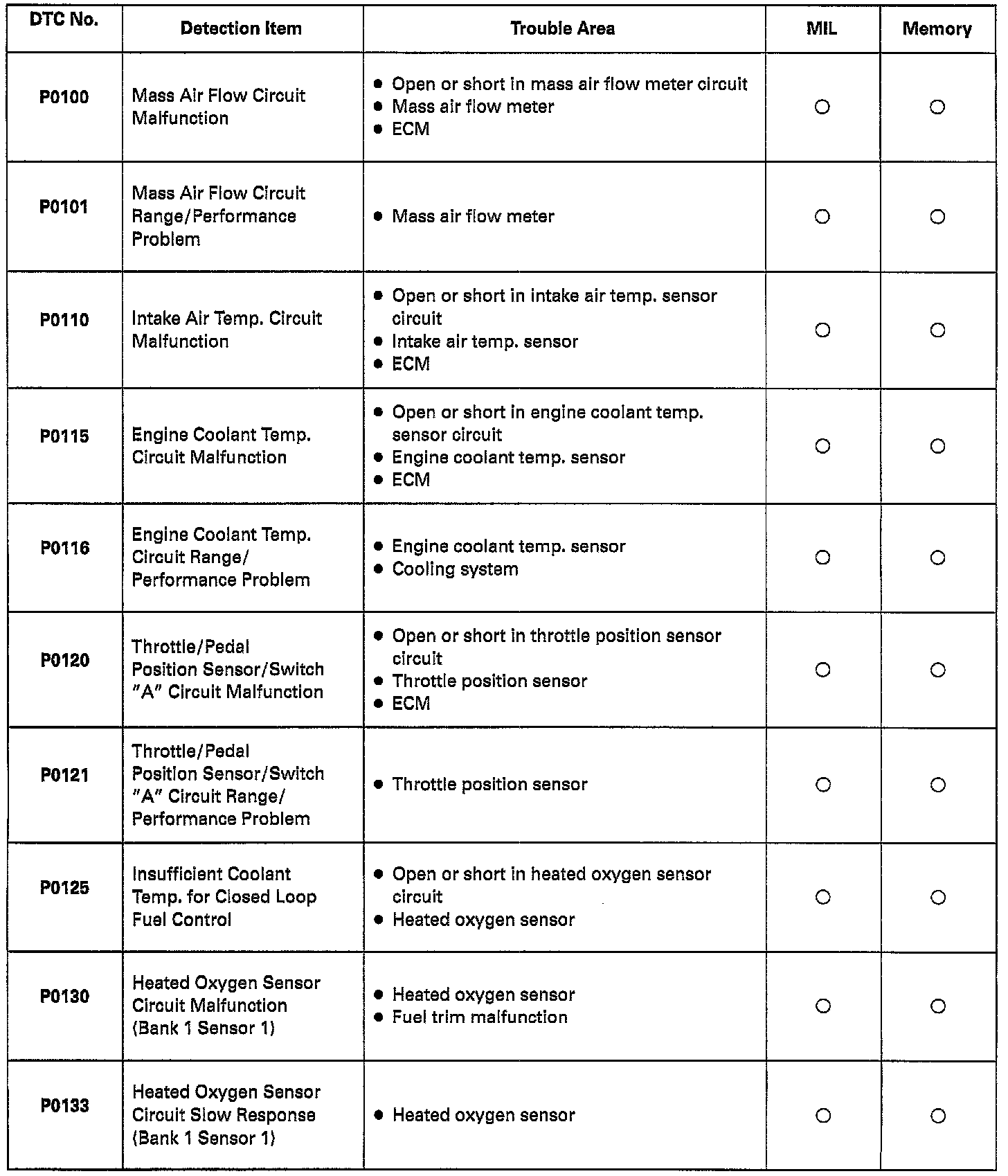

P0100 - P0133

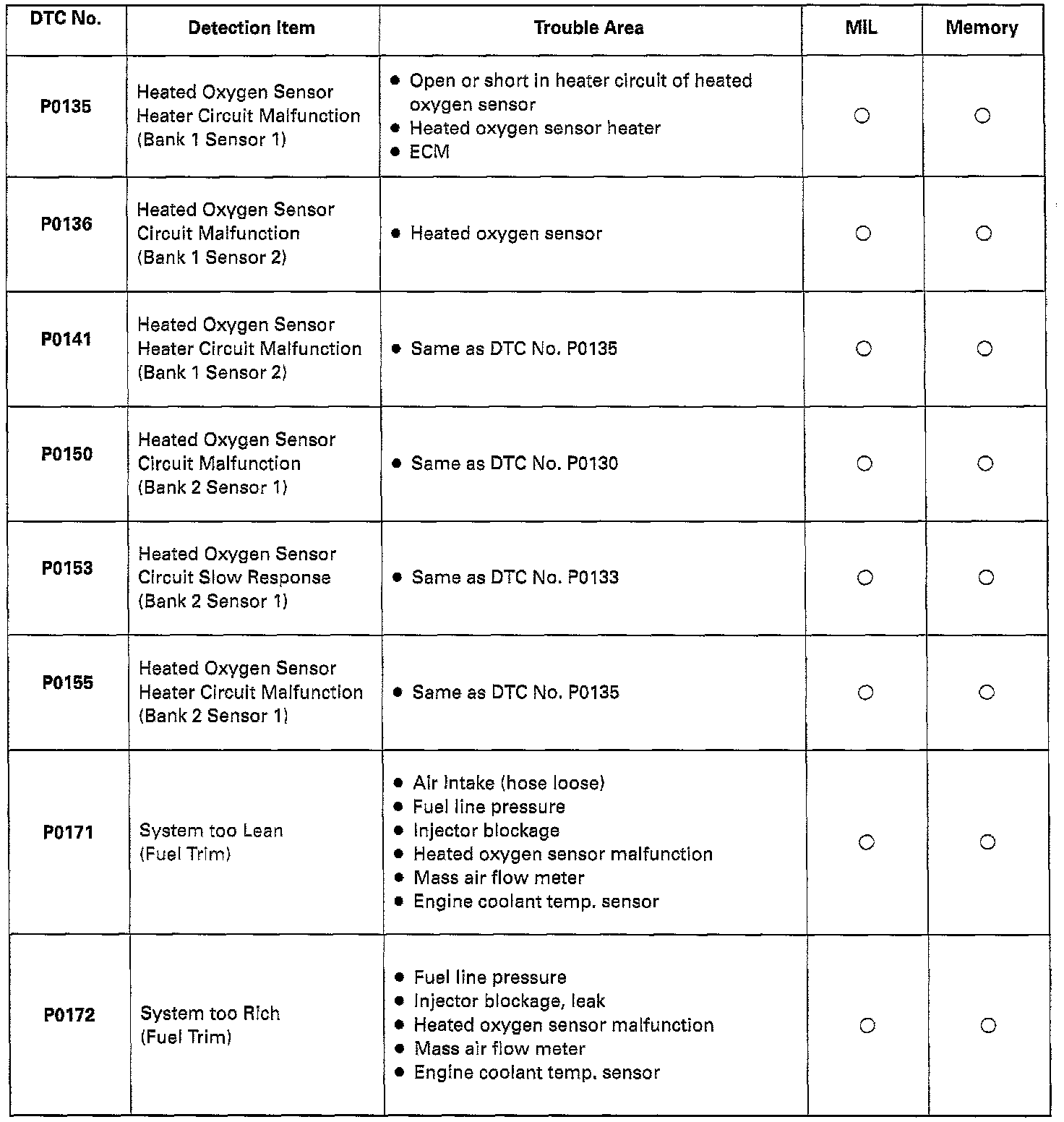

P0135 - P0172

*: MIL lights up on USA and Canadian specification vehicles:

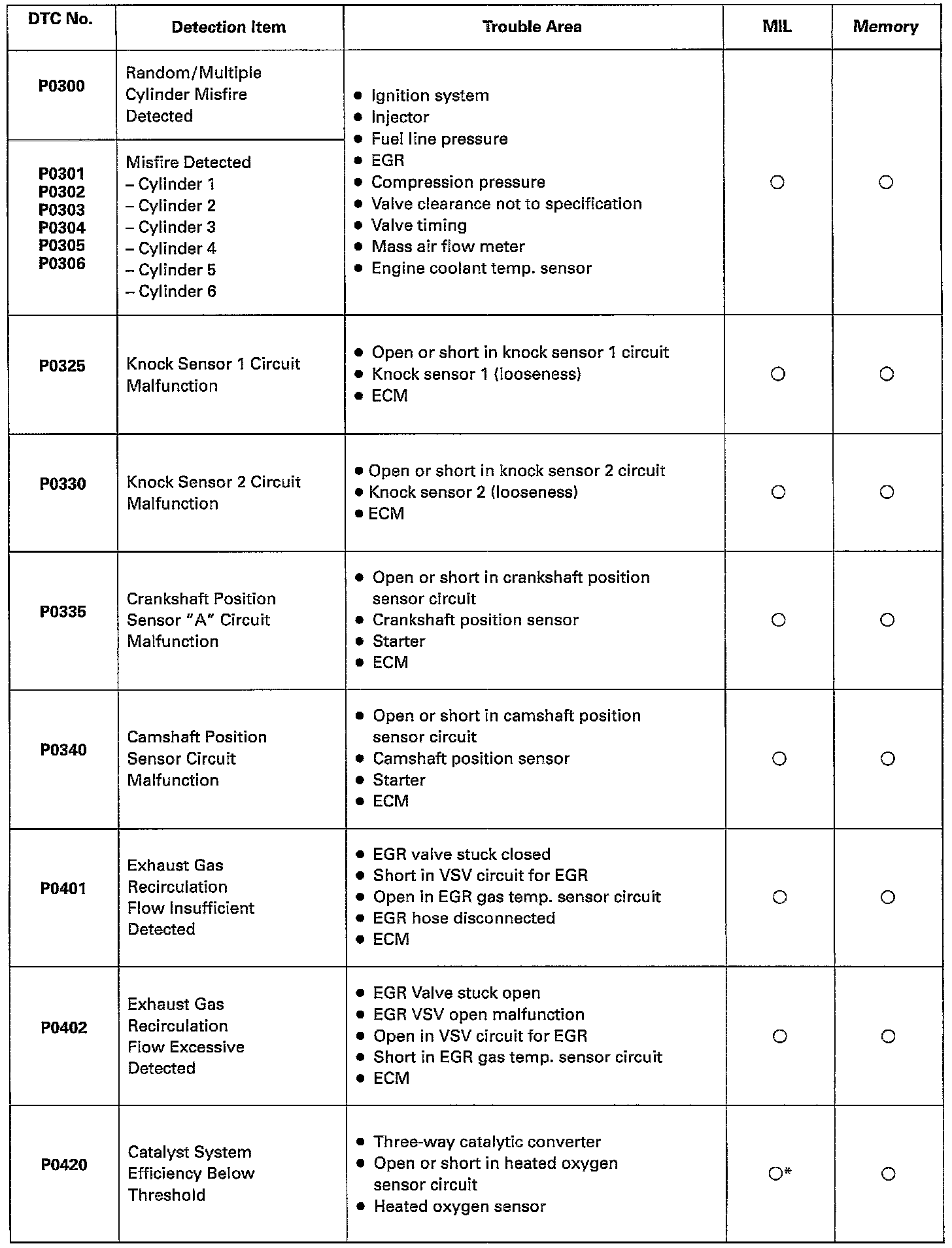

P0300 - P0420

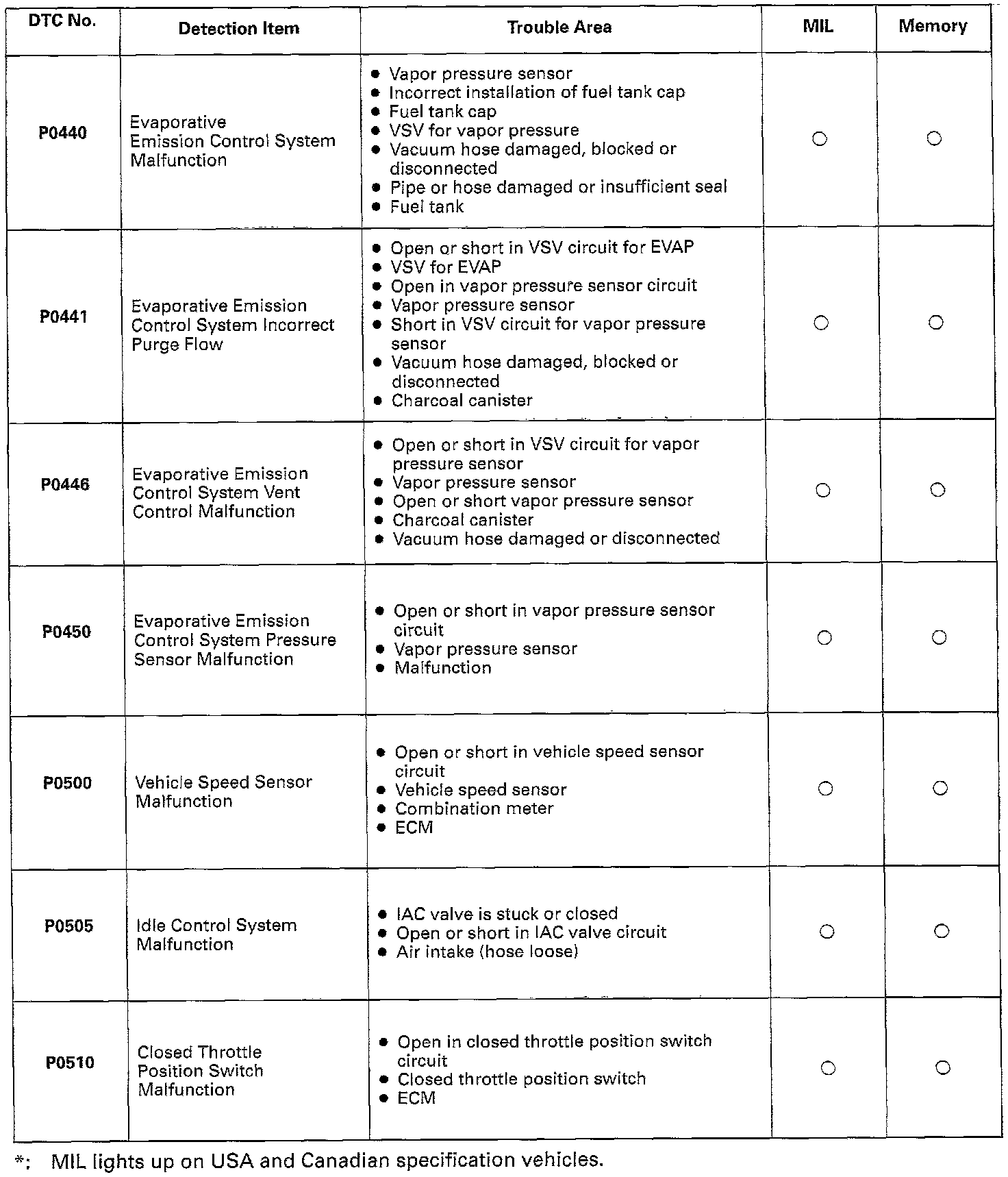

P0440 - P0510



DTC CHART (MANUFACTURER CONTROLLED)

*: -...MIL does not light up O...MIL lights up:

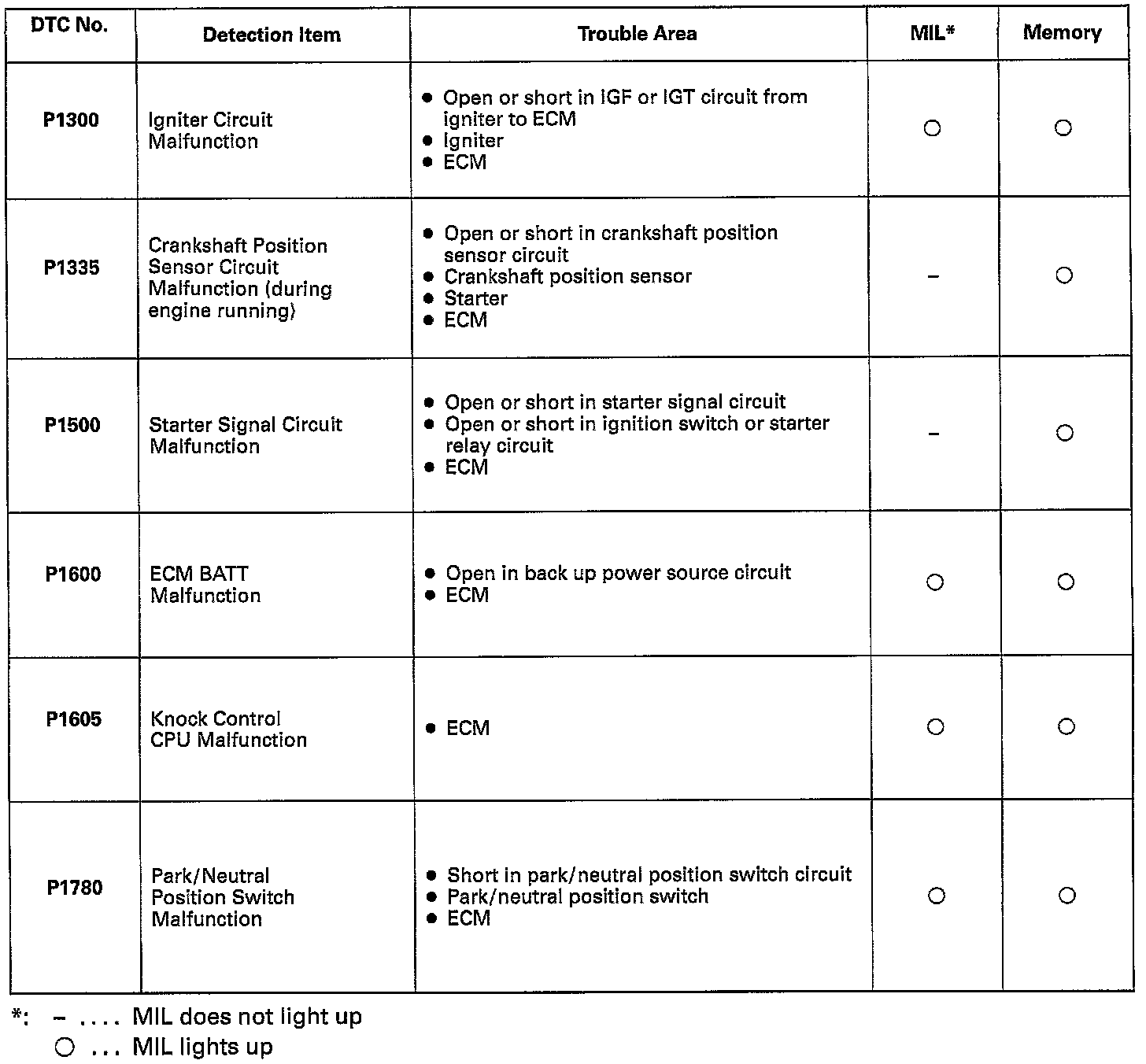

P1300 - P1780
