Camshaft Position Sensor: Service and Repair

CAMCSHAFT POSITION SENSOR REMOVAL

NOTE: Installation is in the reverse order of removal.

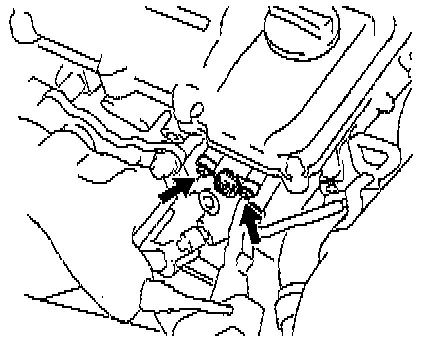

- REMOVE CAMSHAFT POSITION SENSOR.
- Disconnect the camshaft position sensor connector.



- Remove the 2 bolts and camshaft position sensor.

Torque: 8 Nm (69 in.lb)
