Air Flow Meter/Sensor: Service and Repair

INSTALLATION HINT: Installation is in the reverse order of removal.

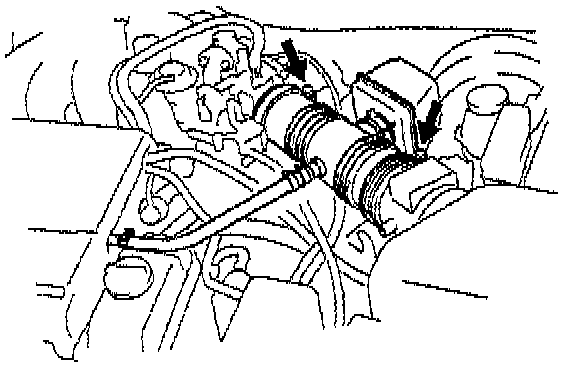

1. REMOVE AIR CLEANER HOSE.



- Disconnect the PCV hose.
- Loosen the 2 hose clamps, and remove the air cleaner hose.

2. REMOVE MAF METER.



- Disconnect the MAF meter connector.
- Remove the 2 bolts and MAF meter.

Torque: 6.9 Nm (61 in.lb)
