Pinout Values and Diagnostic Parameters

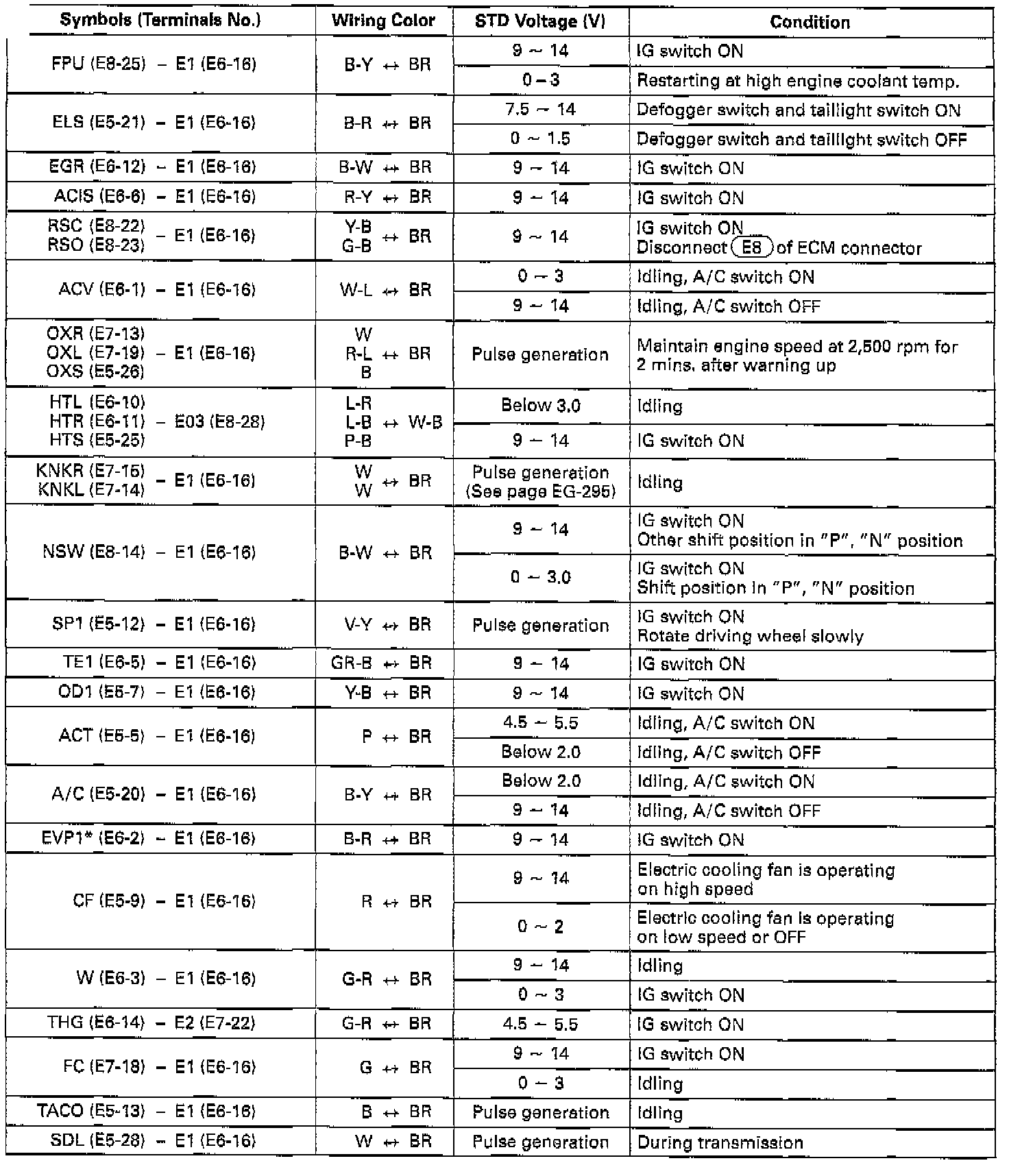

Standard Value Of ECM Terminals (Part 1 Of 2):
Standard Value Of ECM Terminals (Part 2 Of 2):
