Radiator Cooling Fan Motor: Testing and Inspection

No. 1 Fan Motor Inspection
1. Disconnect cooling fan connector.
2. Connect battery and ammeter to connector, Fig. 1.

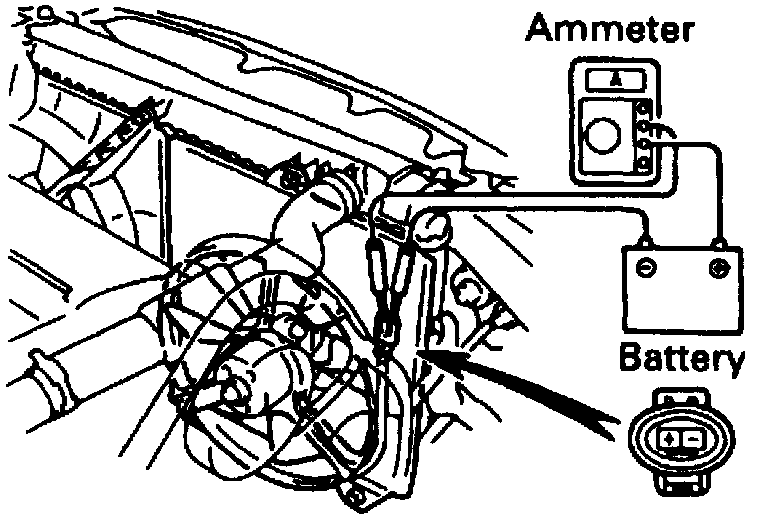

Fig. 1 No. 1 Fan Motor Inspection.:

3. Ensure cooling fan rotates smoothly and reading on ammeter is 6.1-7.3 amps.

No. 2 Fan Motor Inspection
1. Disconnect cooling fan connector.
2. Connect battery and ammeter to connector, Fig. 2.

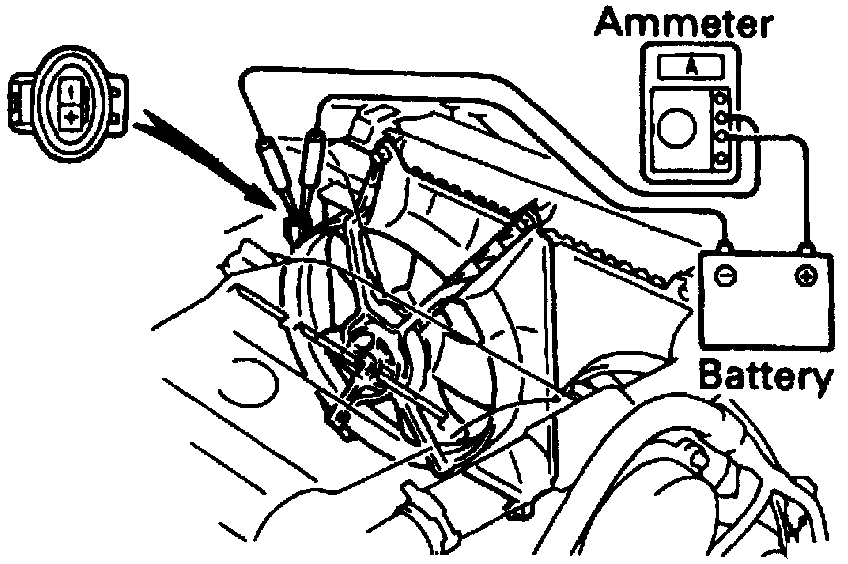

Fig. 2 No. 2 Fan Inspection.:

3. Ensure cooling fan rotates smoothly and reading on ammeter is 9.2-11.0 amps.
