Tc Terminal Circuit

Tc Terminal Circuit

CIRCUIT DESCRIPTION

Connecting terminals Tc and E1 of the DLC1 or the DLC2 causes the ECU to display the diagnostic trouble code by flashing the ABS warning light.

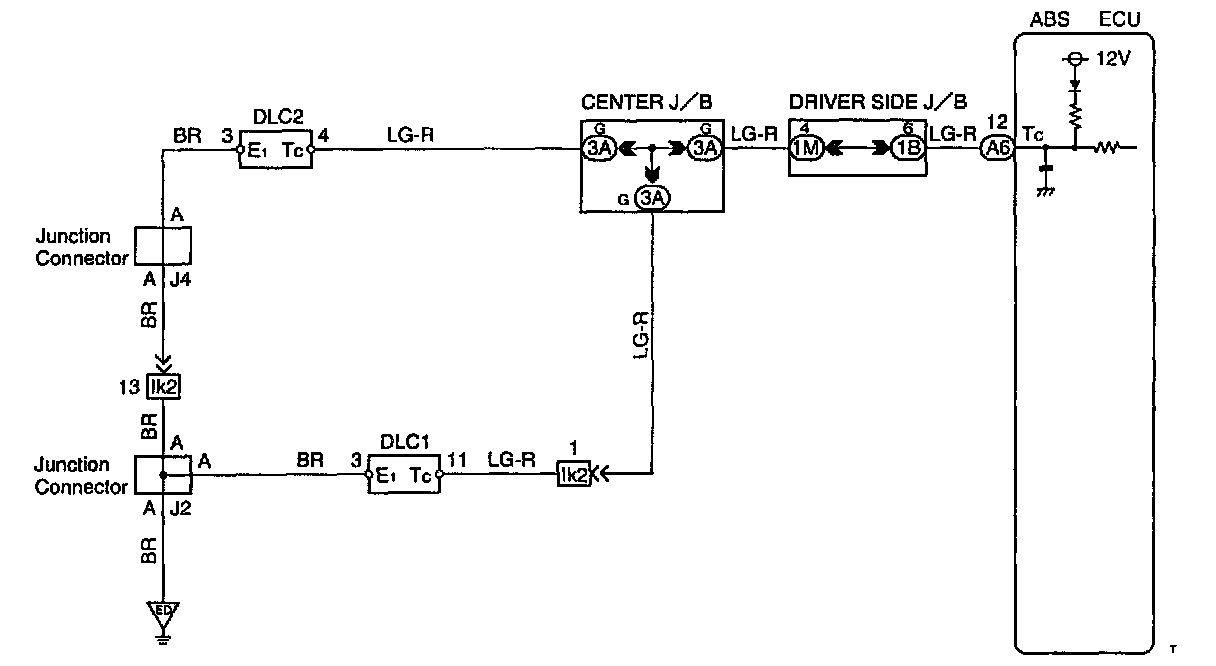

WIRING DIAGRAM

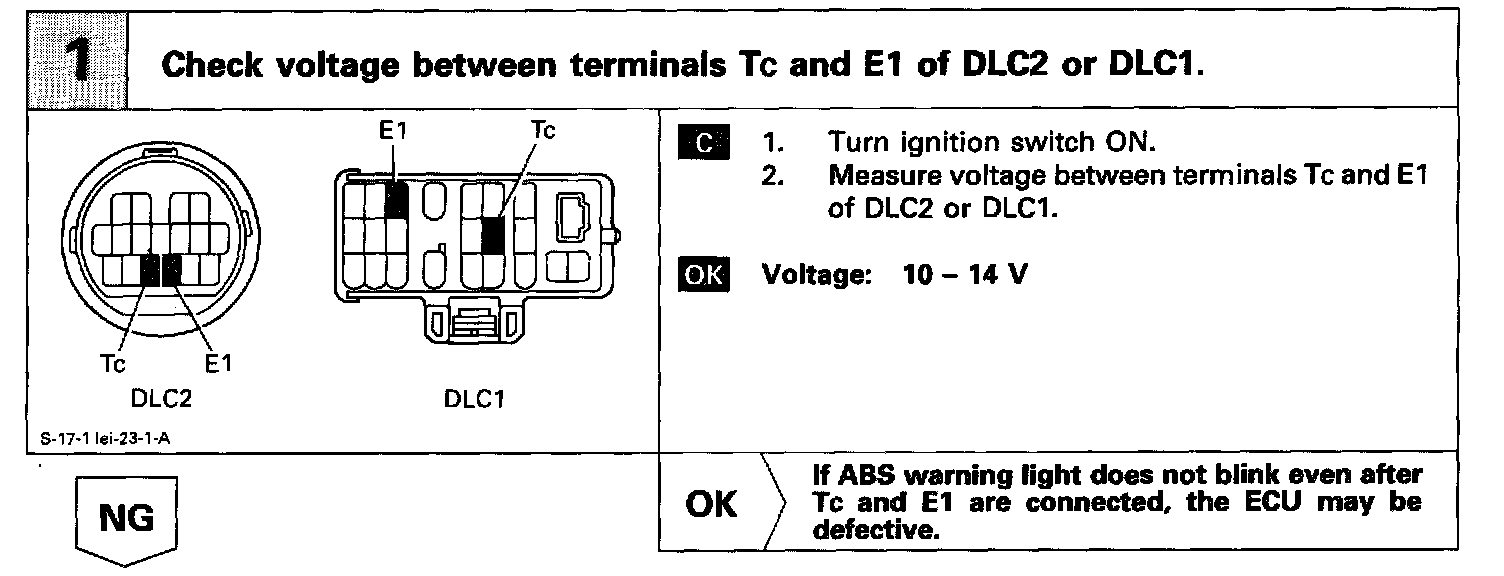

Step 1:

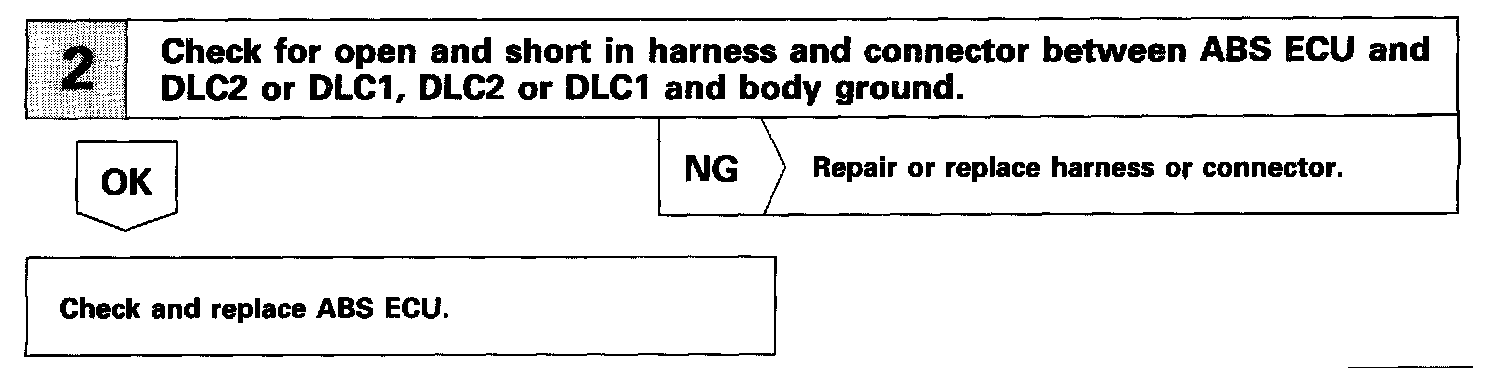

Step 2:

INSPECTION PROCEDURE
