Home >> Toyota >> 1994 >> Supra L6-183 2997cc 3.0L DOHC Turbo (2JZ-GTE) >> Repair and Diagnosis >> Wiper and Washer Systems >> Diagrams >> Connector Views

Connector Views

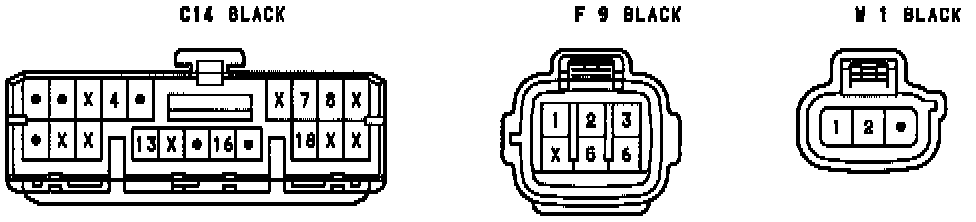

Front Wiper And Washer Connector Views:

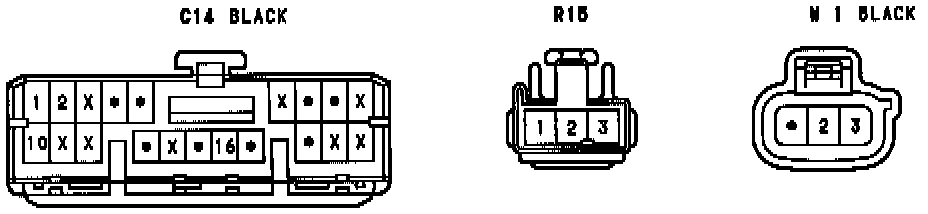

Rear Wiper And Washer Connector Views:
