Transmission Temperature Sensor/Switch: Service and Repair

A/T FLUID TEMP. SENSOR REPLACEMENT



1. DISCONNECT A/T FLUID TEMP. SENSOR CONNECTOR.
2. REMOVE A/T FLUID TEMP. SENSOR.
- Remove the A/T fluid temp. sensor.
- Remove the 0-ring from it.
3. INSTALL A/T FLUID TEMP. SENSOR.
- Coat a new 0-ring with A/T fluid and install it to the A/T fluid temp. sensor.

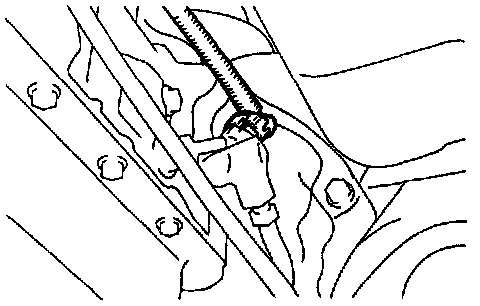

- Install the A/T fluid temp. sensor.

Torque: 15 Nm (150 kg.cm, 11 ft.lb)

4. CONNECT A/T FLUID TEMP. SENSOR CONNECTOR.
