Throttle Valve Cable/Linkage: Adjustments

INSPECT AND ADJUST THROTTLE VALVE CABLE.
- Check that the throttle valve is fully closed.
- Check that the inner cable is not slack.

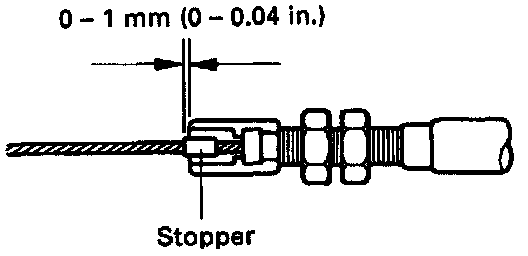

- Measure the distance between the outer cable end and stopper on the cable.

Standard distance: 0.0 - 1.0 mm (0.0 - 0.04 in)

- If the distance is not standard, adjust the cable by the adjusting nuts.
