With Progressive Power Steering (PPS) System
With Progressive Power Steering (PPS) System

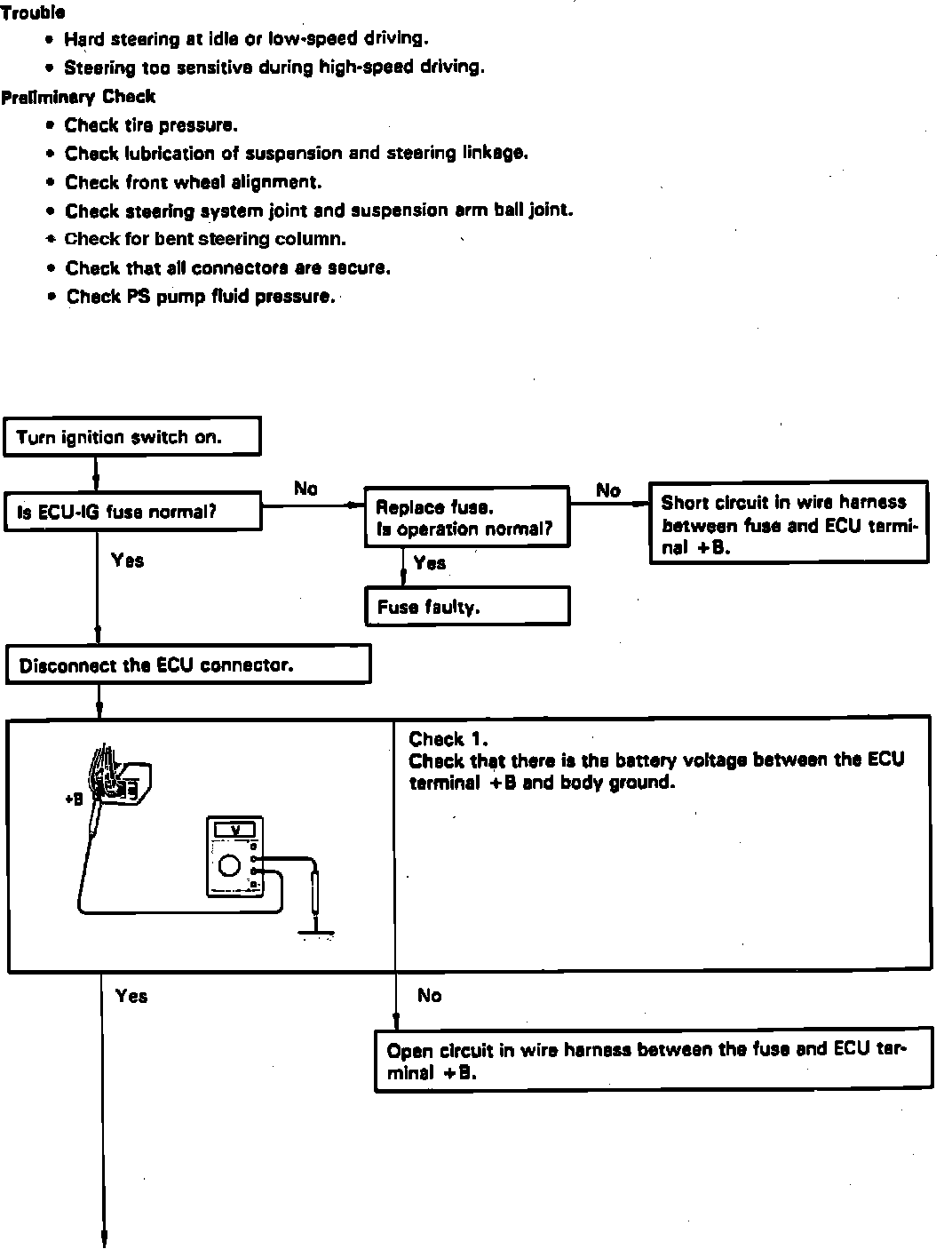

Fig. 34 PPS Troubleshooting (Part 1 Of 3):

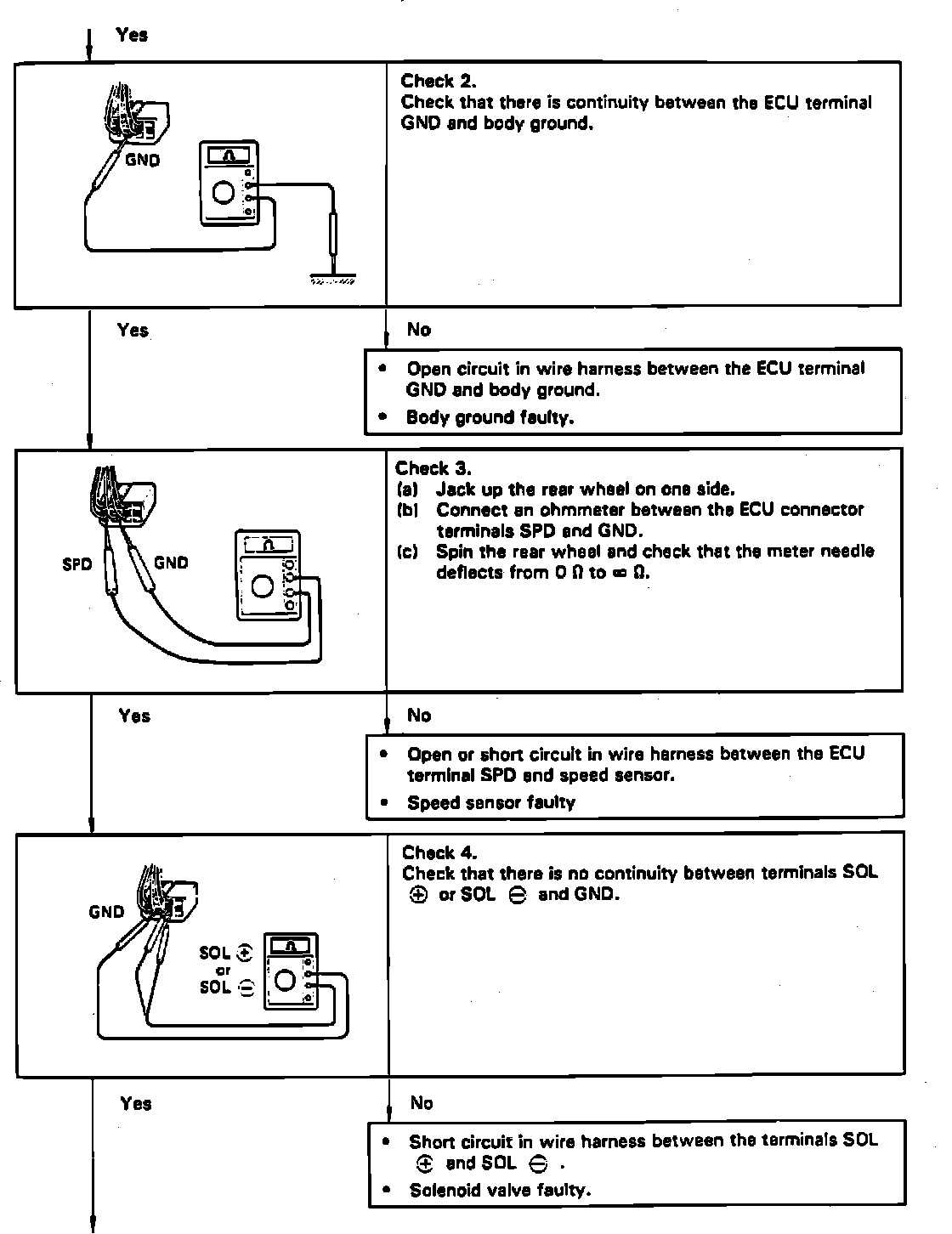

Fig. 34 PPS Troubleshooting (Part 2 Of 3):

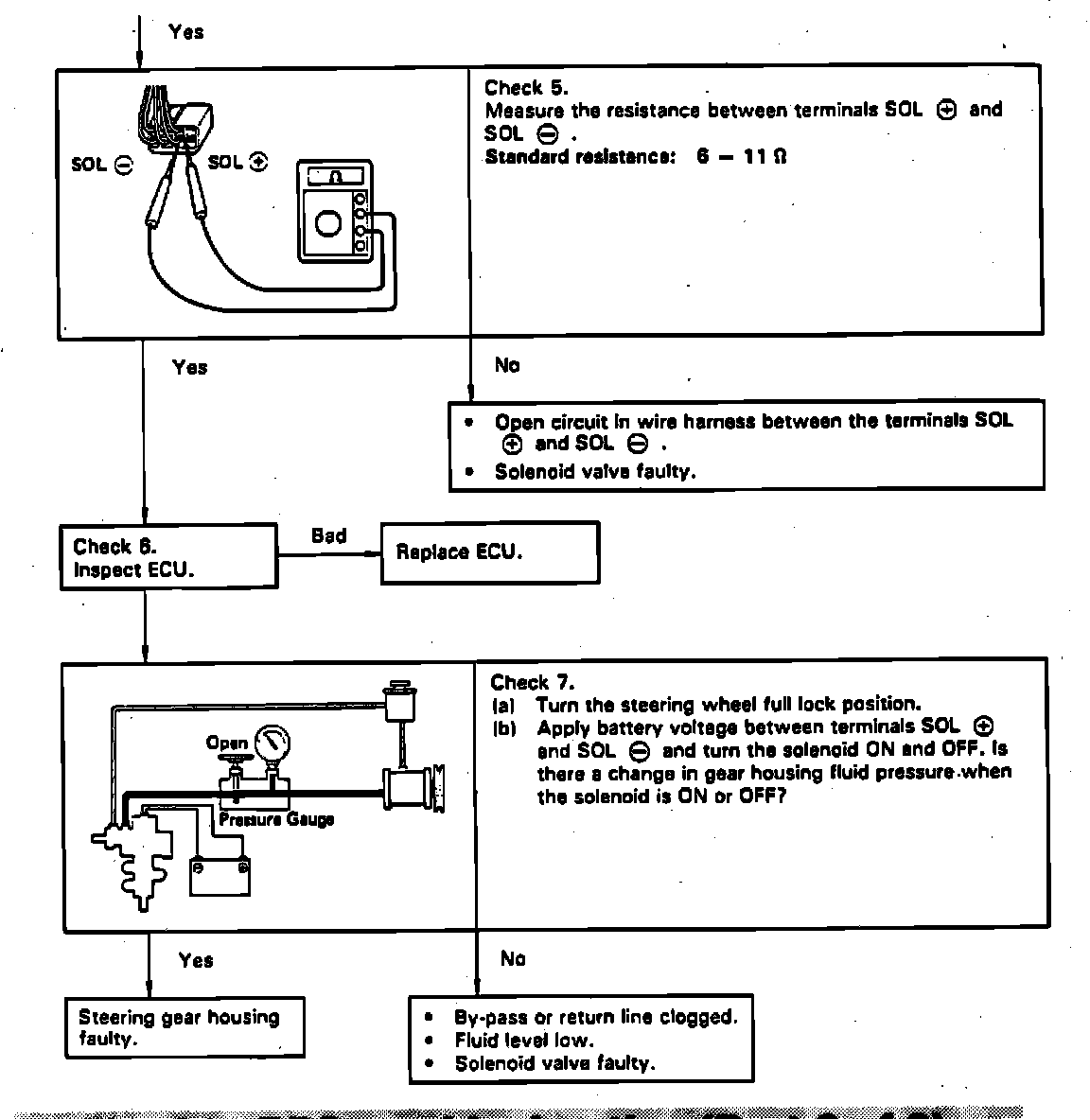

Fig. 34 PPS Troubleshooting (Part 3 Of 3):
Refer to
Fig. 34,
for troubleshooting PPS system.
