Solenoid Valve

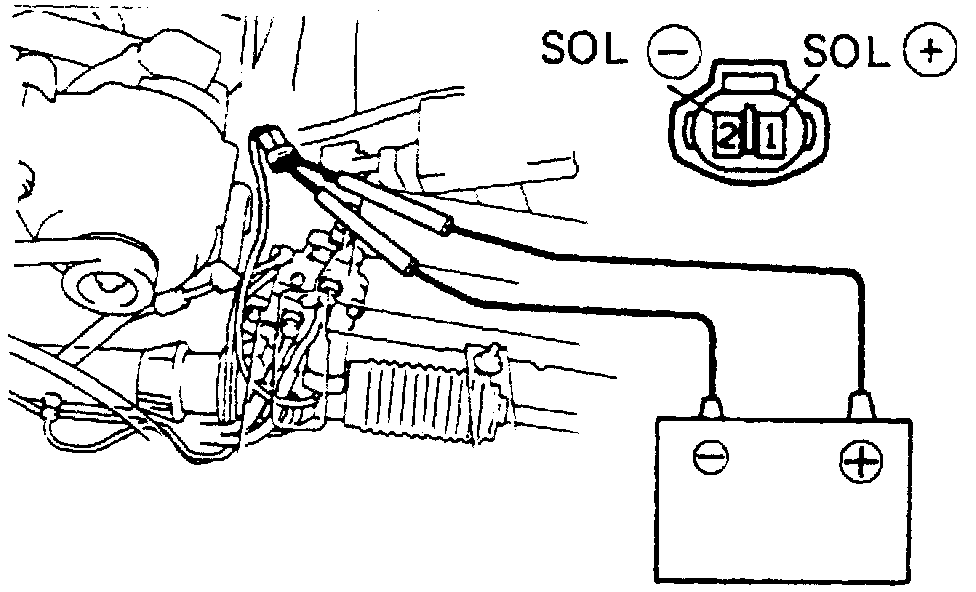

Fig. 20 Solenoid Valve Inspection.:

1. Disconnect solenoid electrical connector.
2. Measure resistance between terminals SOL+ and SOL-, Fig. 20, resistance should be 6.0-11.0 ohms.
3. Reconnect electrical connector.
