Steering Column: Service and Repair

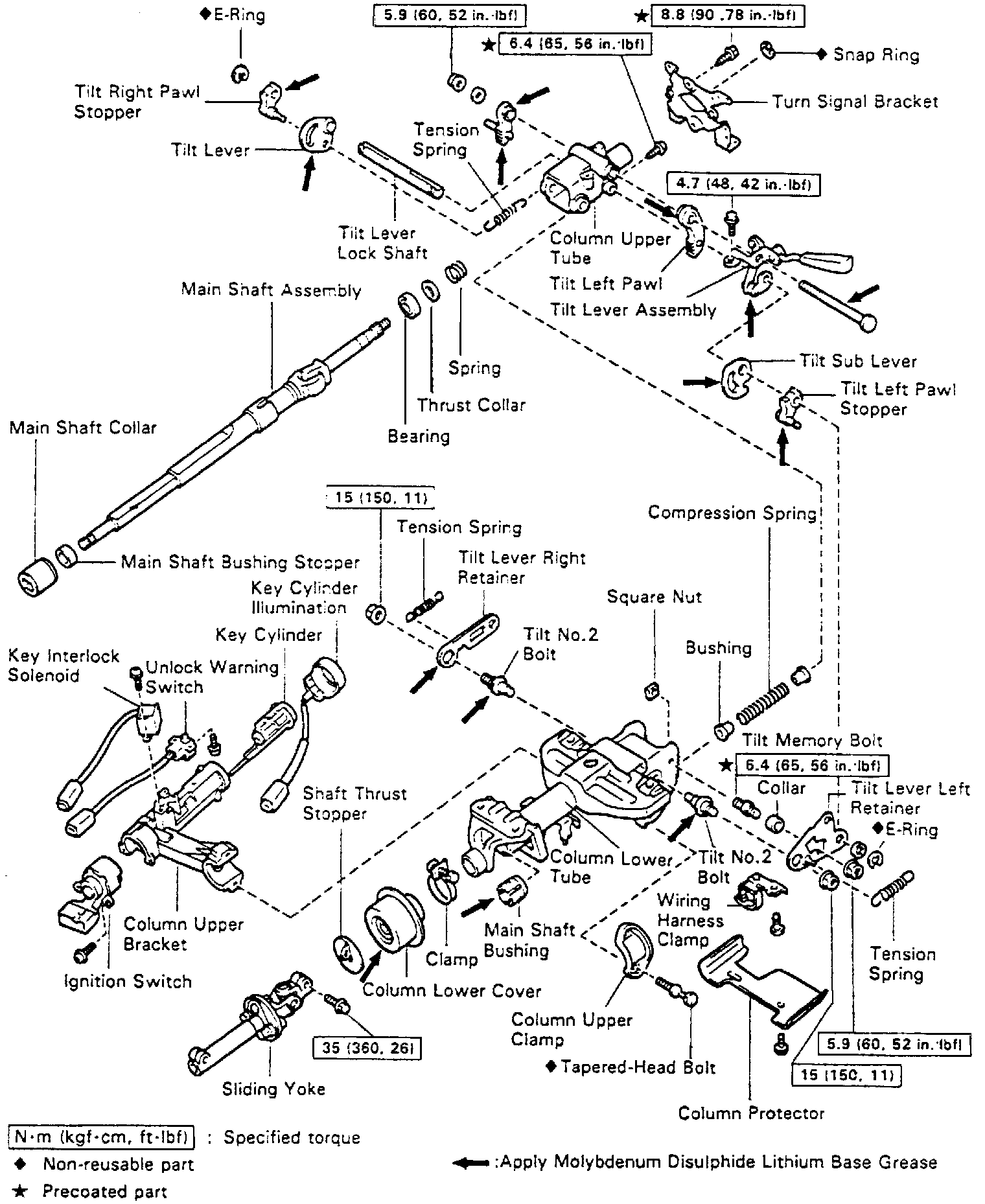

Fig. 8 Exploded View Of Steering Column.:

On models with air bags and/or anti-theft system, disarm systems as outlined under Technician Safety Information.

For steering column service, refer to Fig. 8.
