Home >> Toyota >> 1994 >> Supra L6-183 2997cc 3.0L DOHC Turbo (2JZ-GTE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Service Specifications

Service Specifications

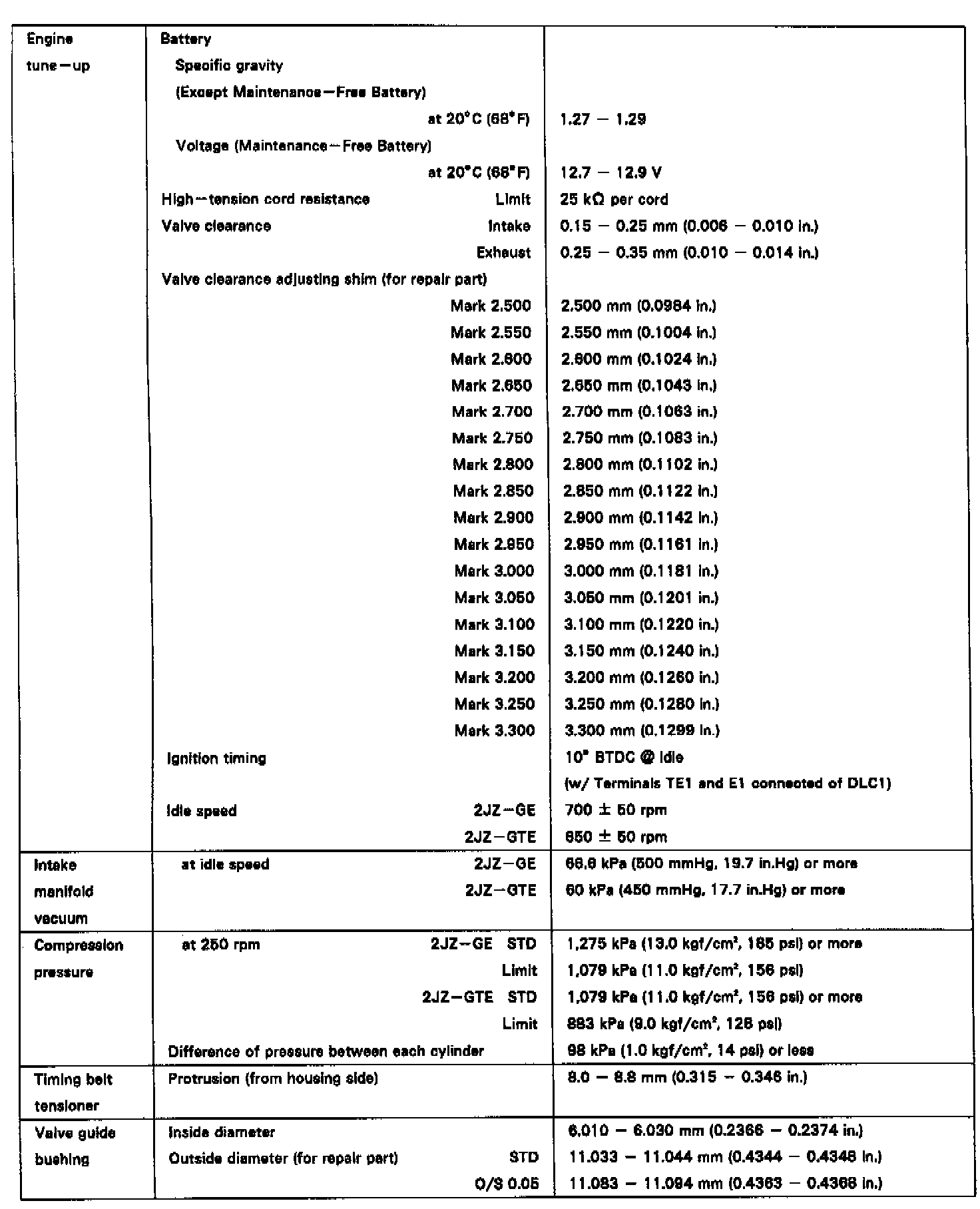

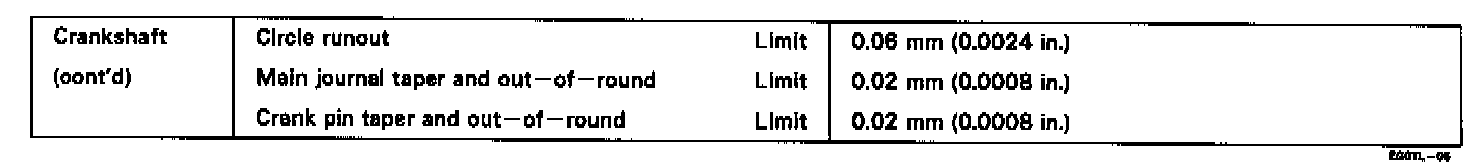

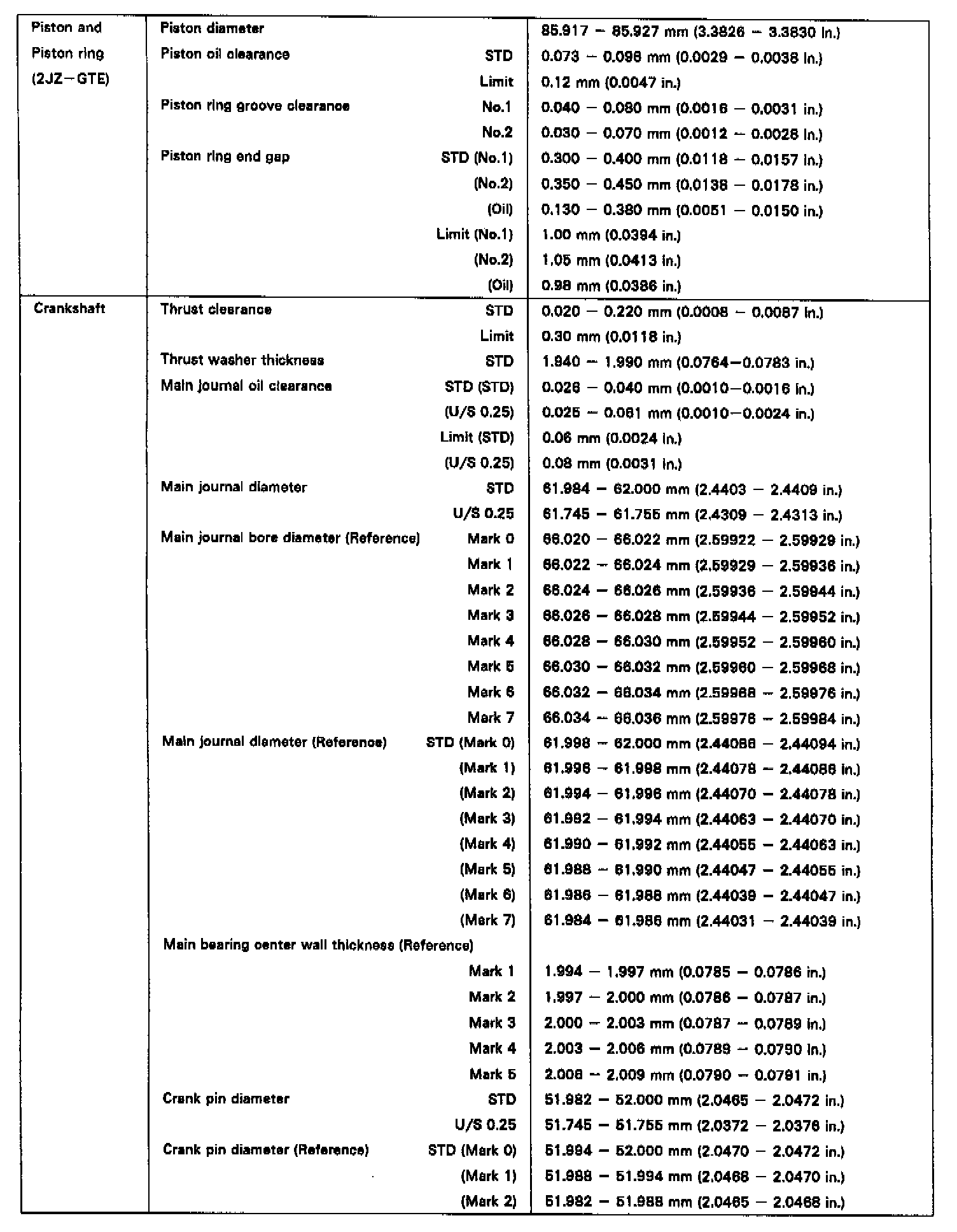

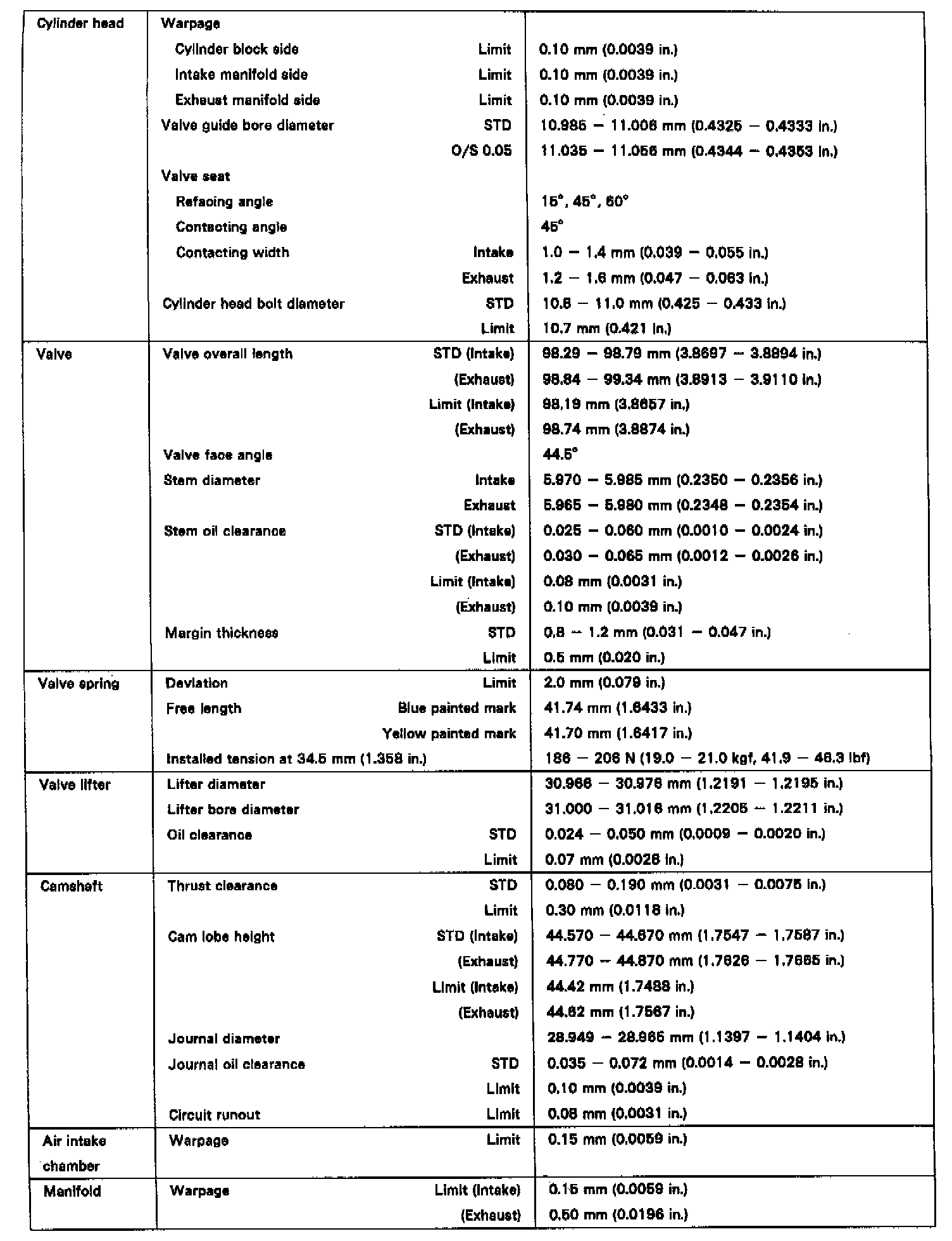

Service Specifications (1 Of 5):




Service Specifications (2 Of 5):




Service Specifications (3 Of 5):




Service Specifications (4 Of 5):




Service Specifications (5 Of 5):





Service Specifications
