Instrument Panel Connectors

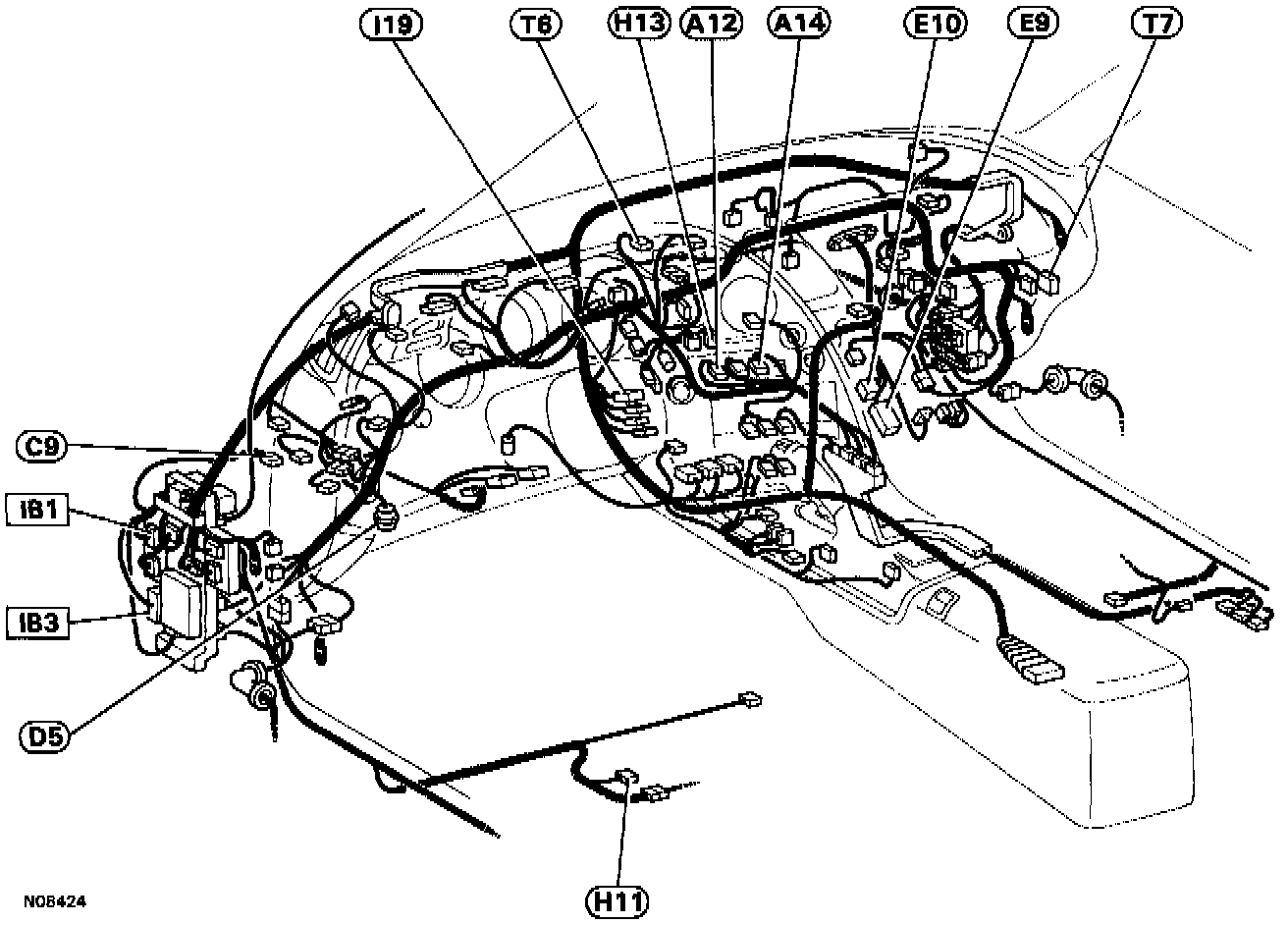

CONNECTOR LOCATIONS - PART 1

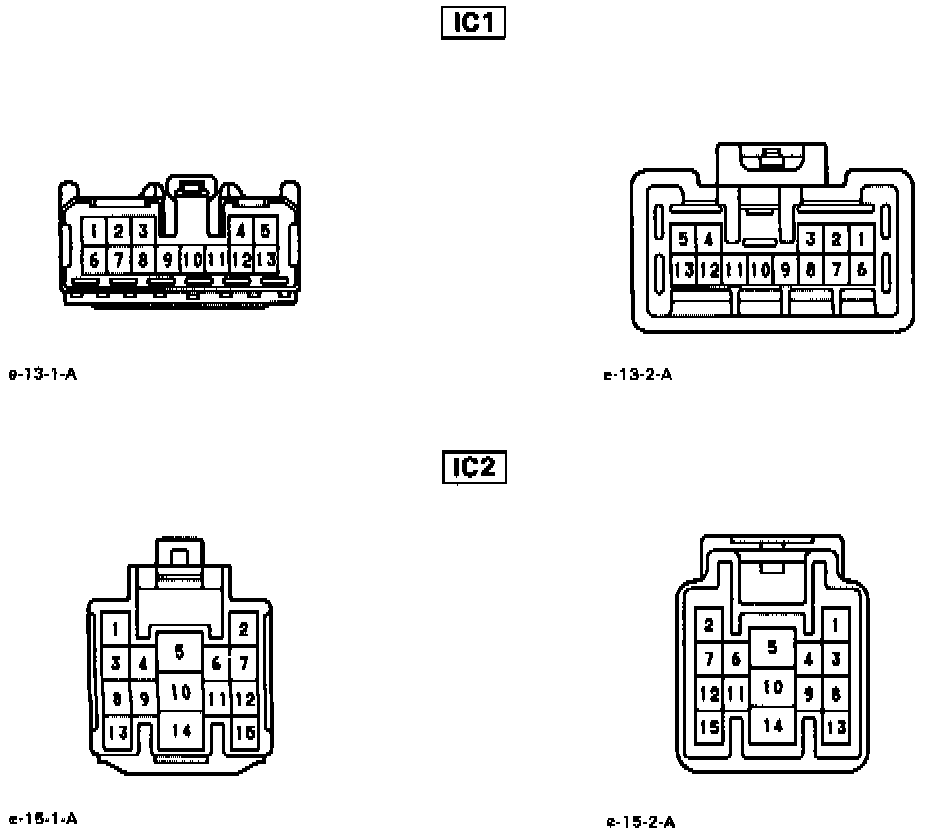

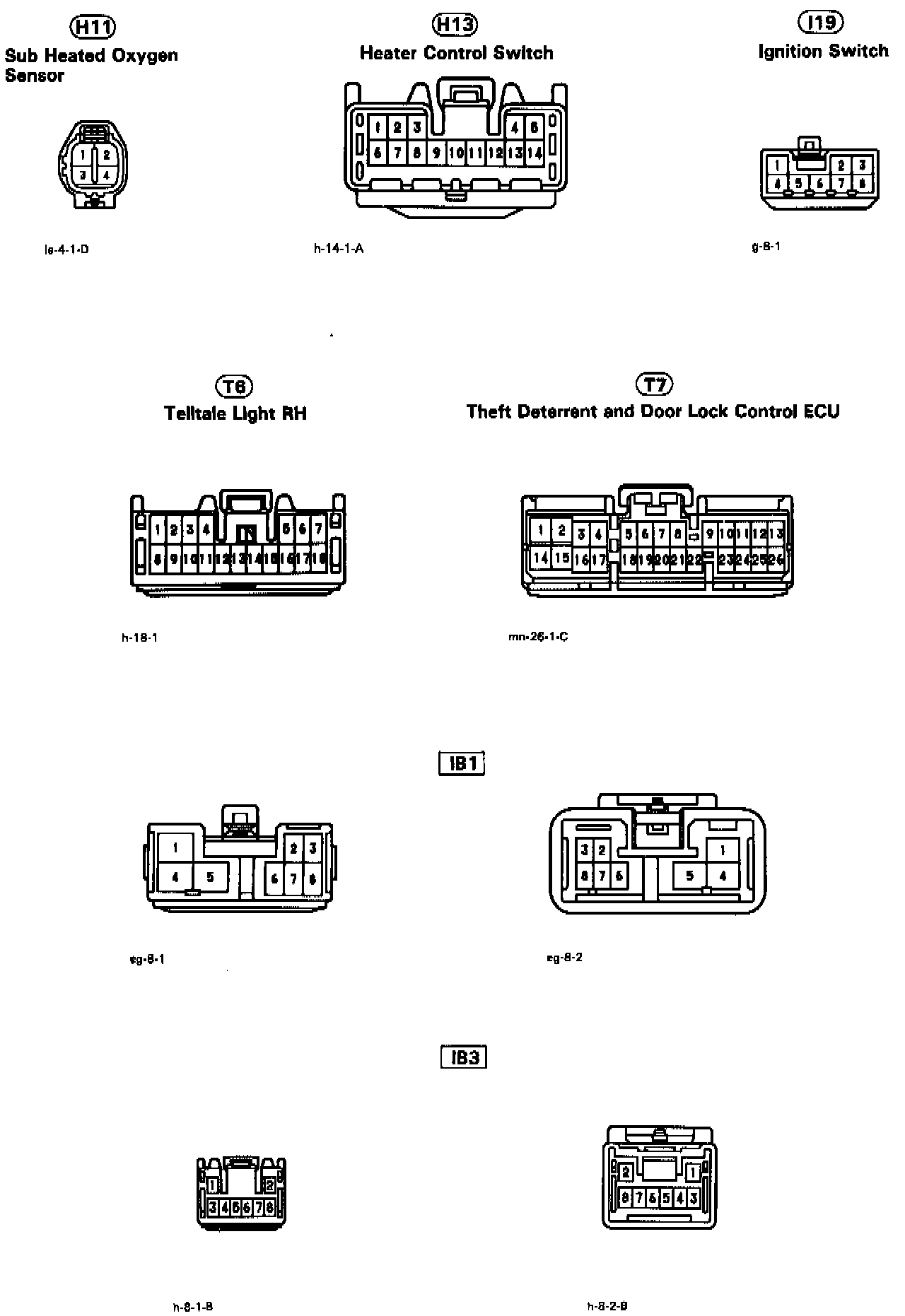

CONNECTOR VIEWS - PART 1





CONNECTOR LOCATIONS - PART 2

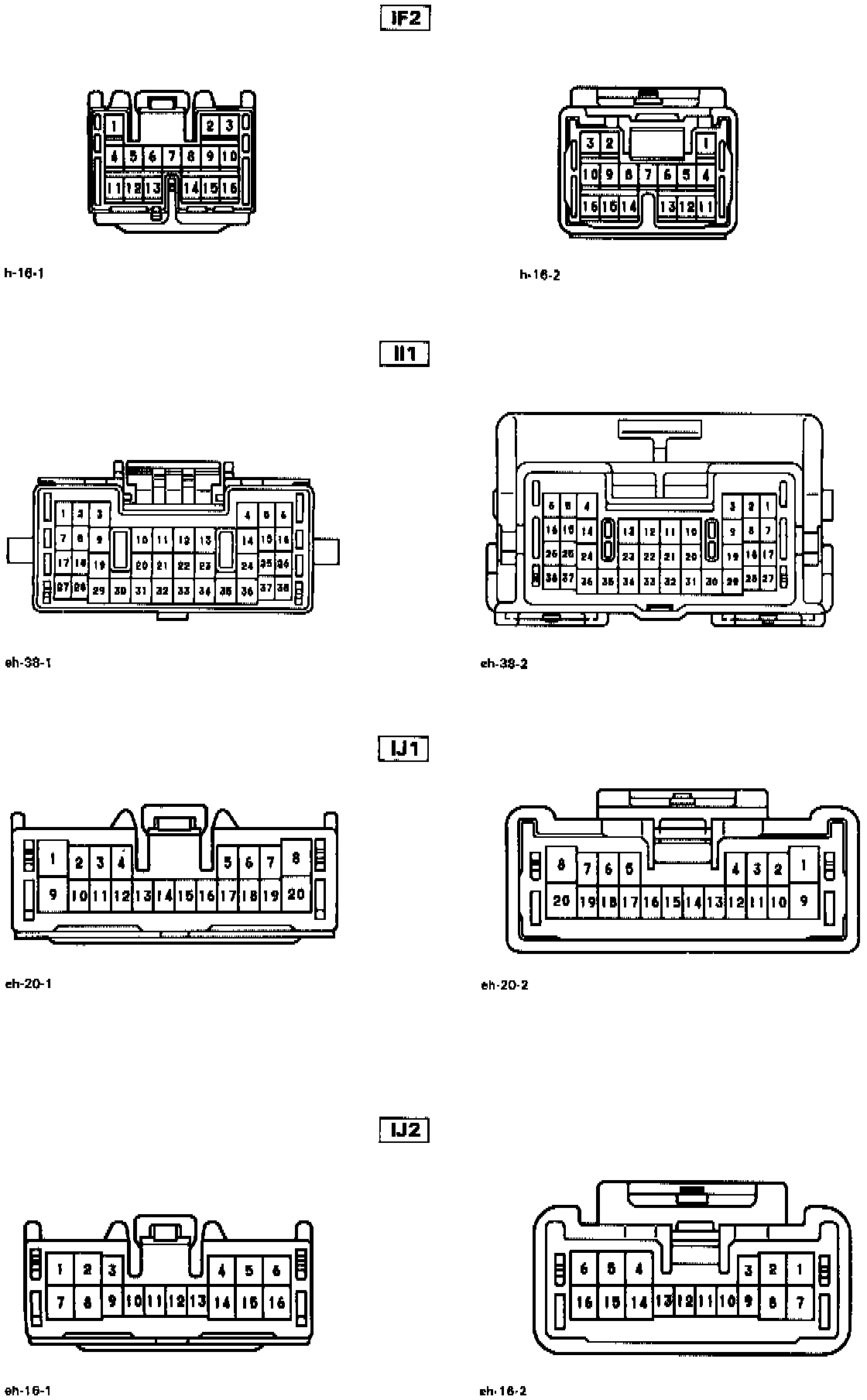

CONNECTOR VIEWS - PART 2

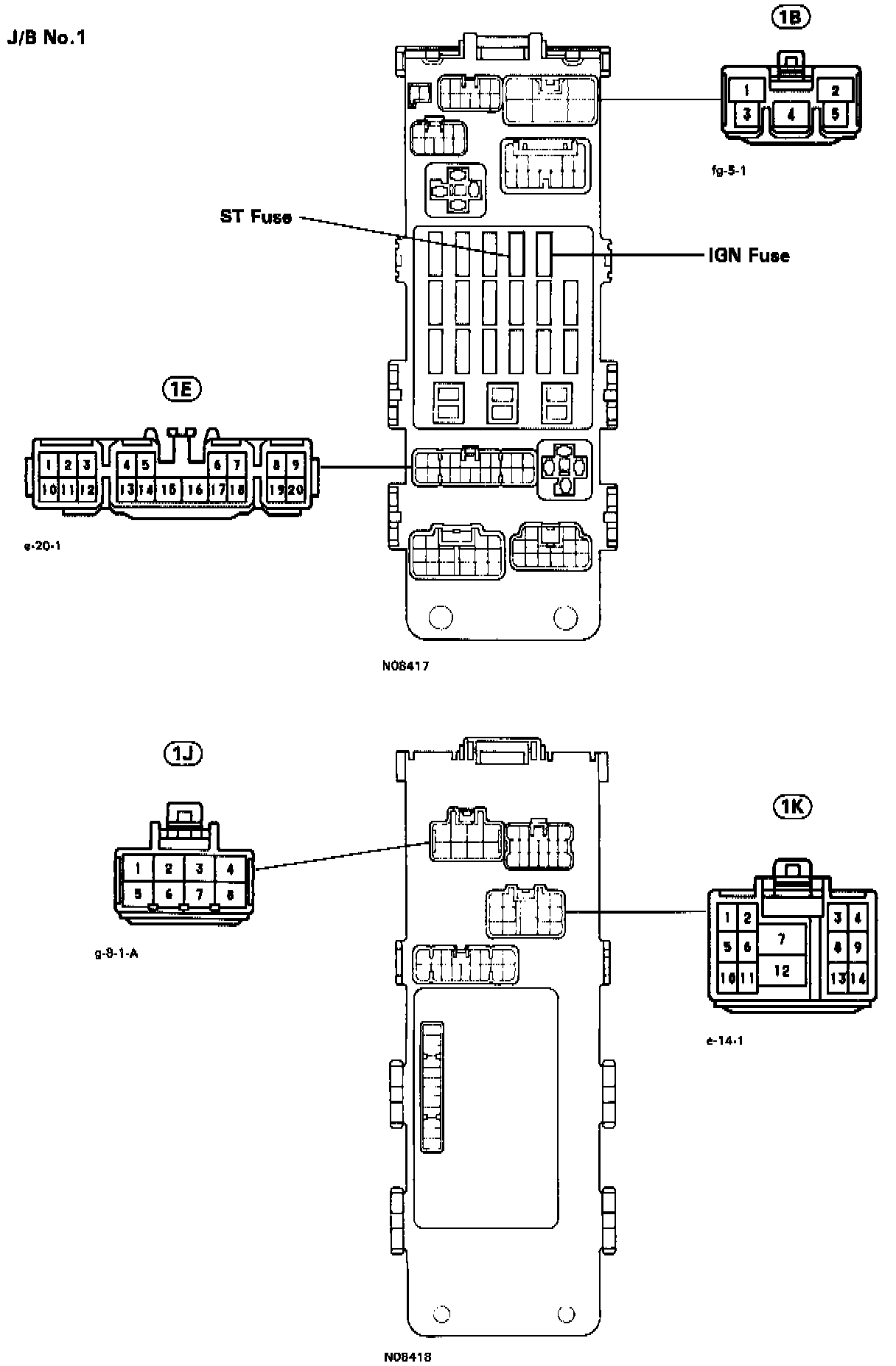

LAYOUT OF FUSE AND JUNCTION BLOCK - J/B NO.1
