Dashpot Adjustment

CHECK AND ADJUST DASHPOT SETTING SPEED
(a) Disconnect the control cables from the throttle body.

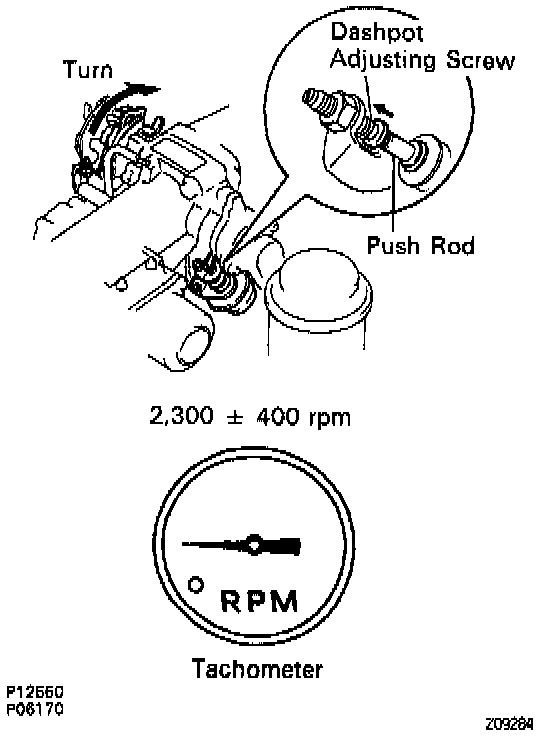

(b) Turn the throttle linkage until the dashpot adjusting screw starts to separate from the push rod. Then keep the throttle linkage at that position.
(c) Check that the dash pot is set.

Dash pot setting speed: 2,300 ± 400 rpm

(d) Reconnect the control cables to the throttle body.
