Fuel Injector Resistor: Testing and Inspection

SOLENOID RESISTOR INSPECTION
1. DISCONNECT SOLENOID RESISTOR CONNECTOR.
2. INSPECT SOLENOID RESISTOR.

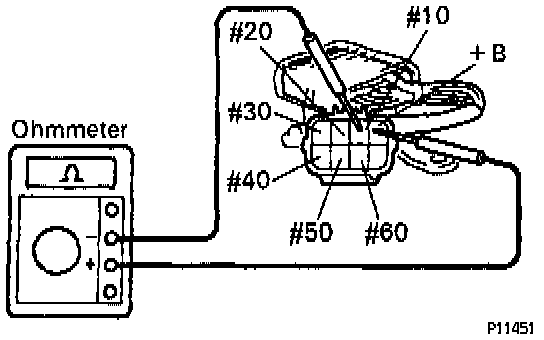

(a) Using an ohmmeter, measure the resistance between terminal +B and other terminals.

Resistance at 20°C (68°F): Approx. 6 Ohms

^ If the resistance is not as specified, replace the resistor.

3. RECONNECT SOLENOID RESISTOR CONNECTOR.
