Evaporative Emissions System: Testing and Inspection

System Operations Chart

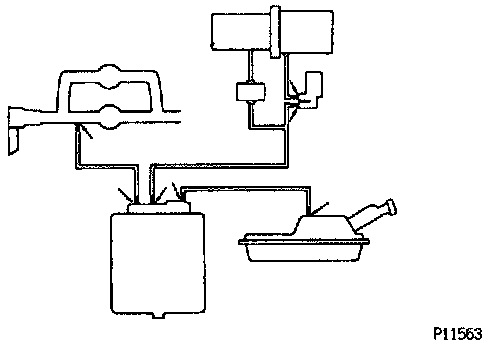

Fuel Vapor Lines, Fuel Tank And Tank Cap Inspection
1. VISUALLY INSPECT LINES AND CONNECTIONS.



- Look for loose connections, sharp bends or damage.

2. VISUALLY INSPECT FUEL TANK.
- Look for deformation, cranks or fuel leakage.

3. VISUALLY INSPECT FUEL TANK CAP.



- Check if the cap and/or gasket are deformed or damaged.
^ If necessary, repair or replace the cap.
