Evaporative Emissions System: Description and Operation

PURPOSE
To reduce hydro-carbon (HC) emission, evaporated fuel from the fuel tank is routed through the charcoal cannister to the intake manifold for combustion in the cylinders.

OPERATION

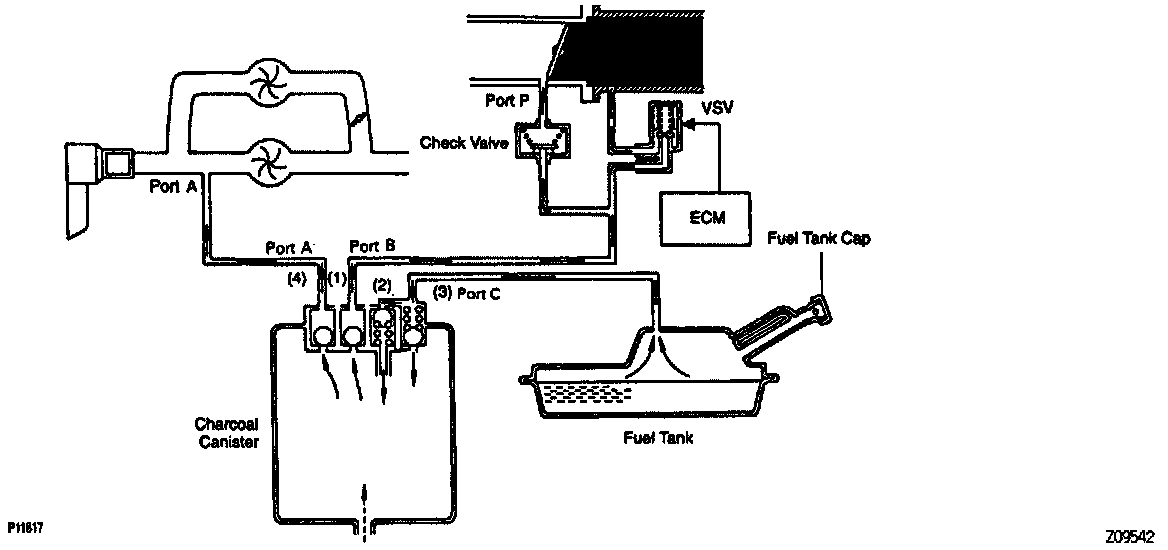

Refer to the included images for details of system operation.
