Wiring Diagrams

Electrical Wiring Diagram

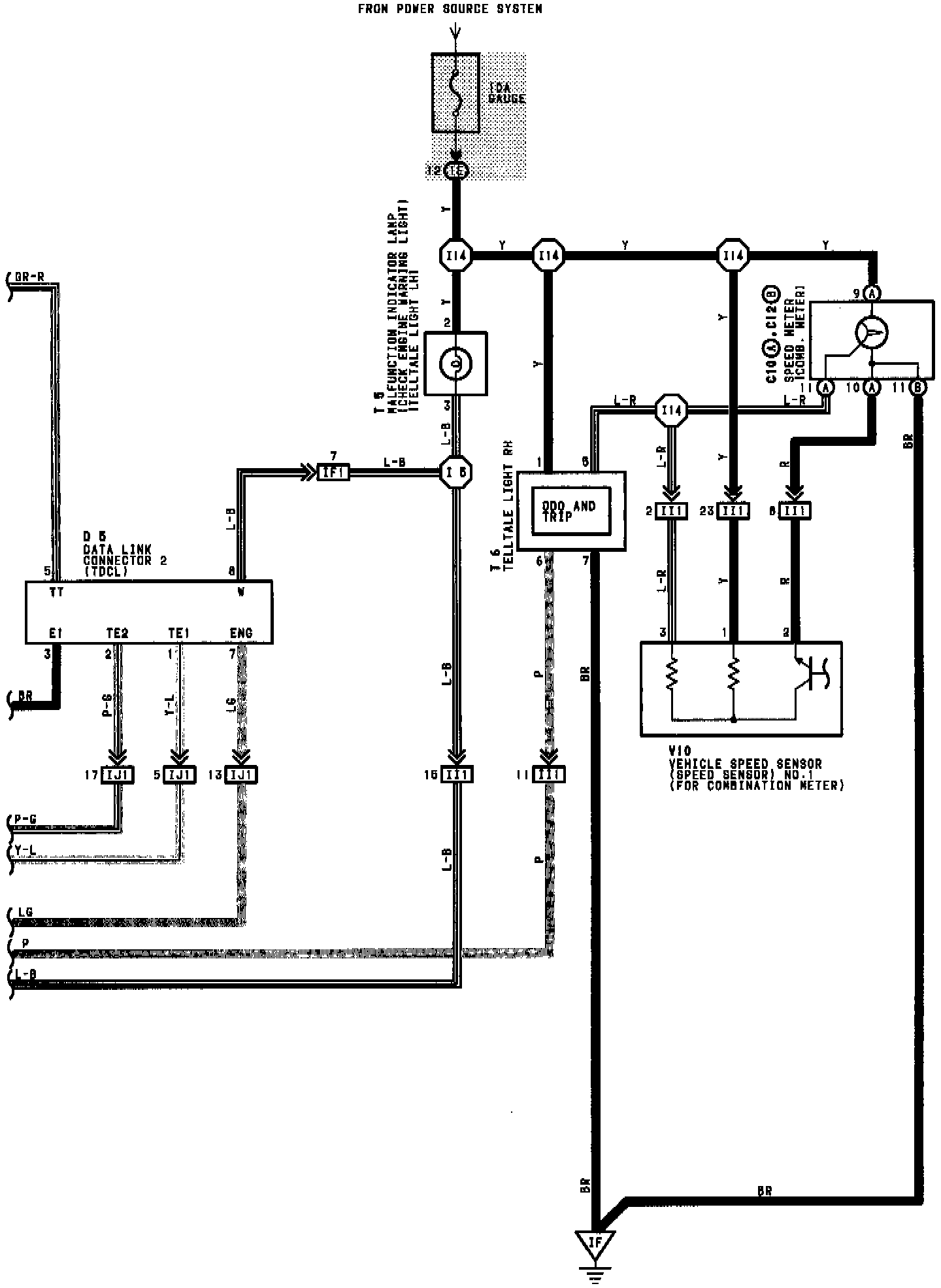

Engine Control Wiring Diagram (2JZ-GTE):

Part 1 of 6

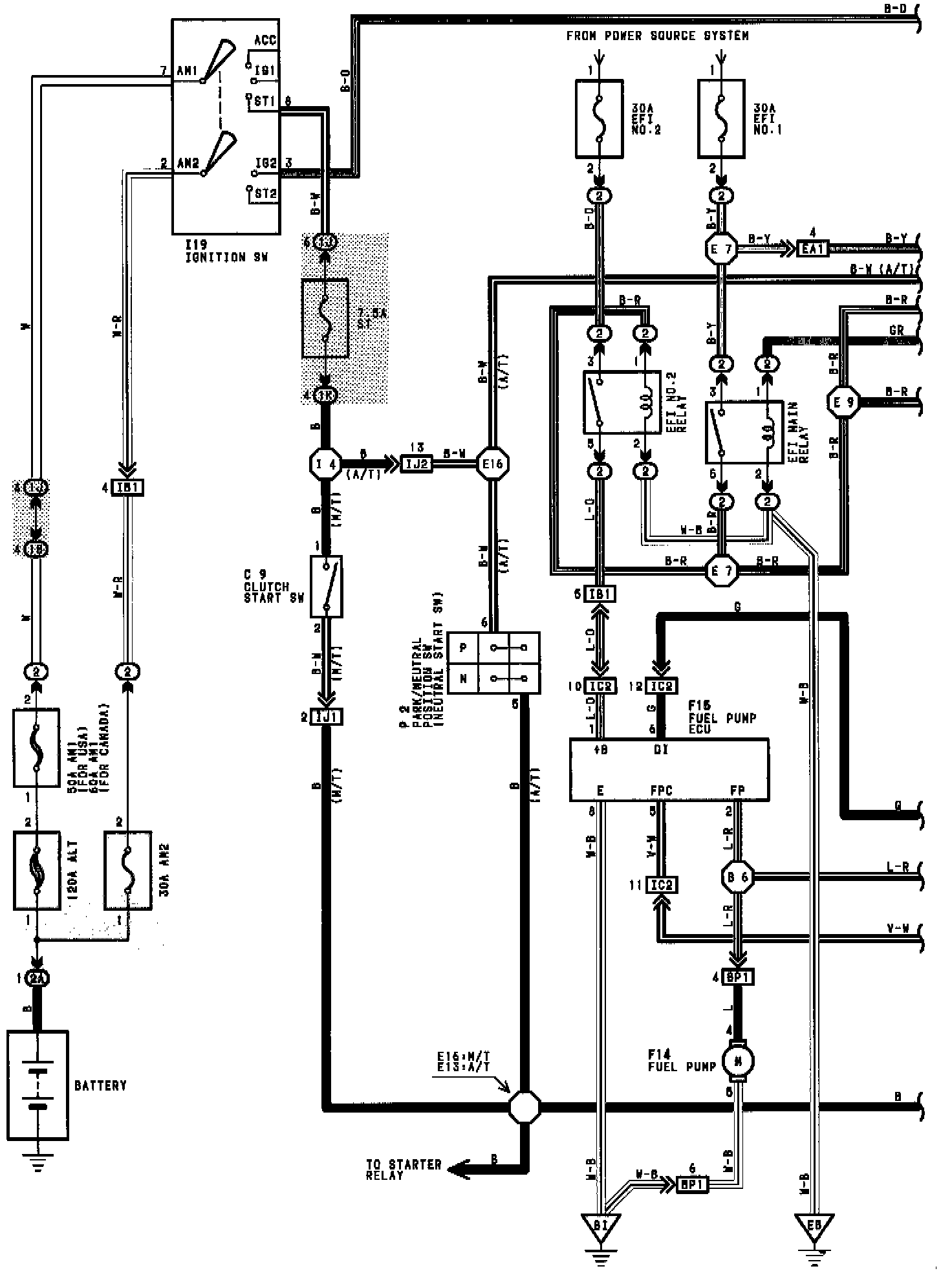

Engine Control Wiring Diagram (2JZ-GTE):

Part 2 of 6

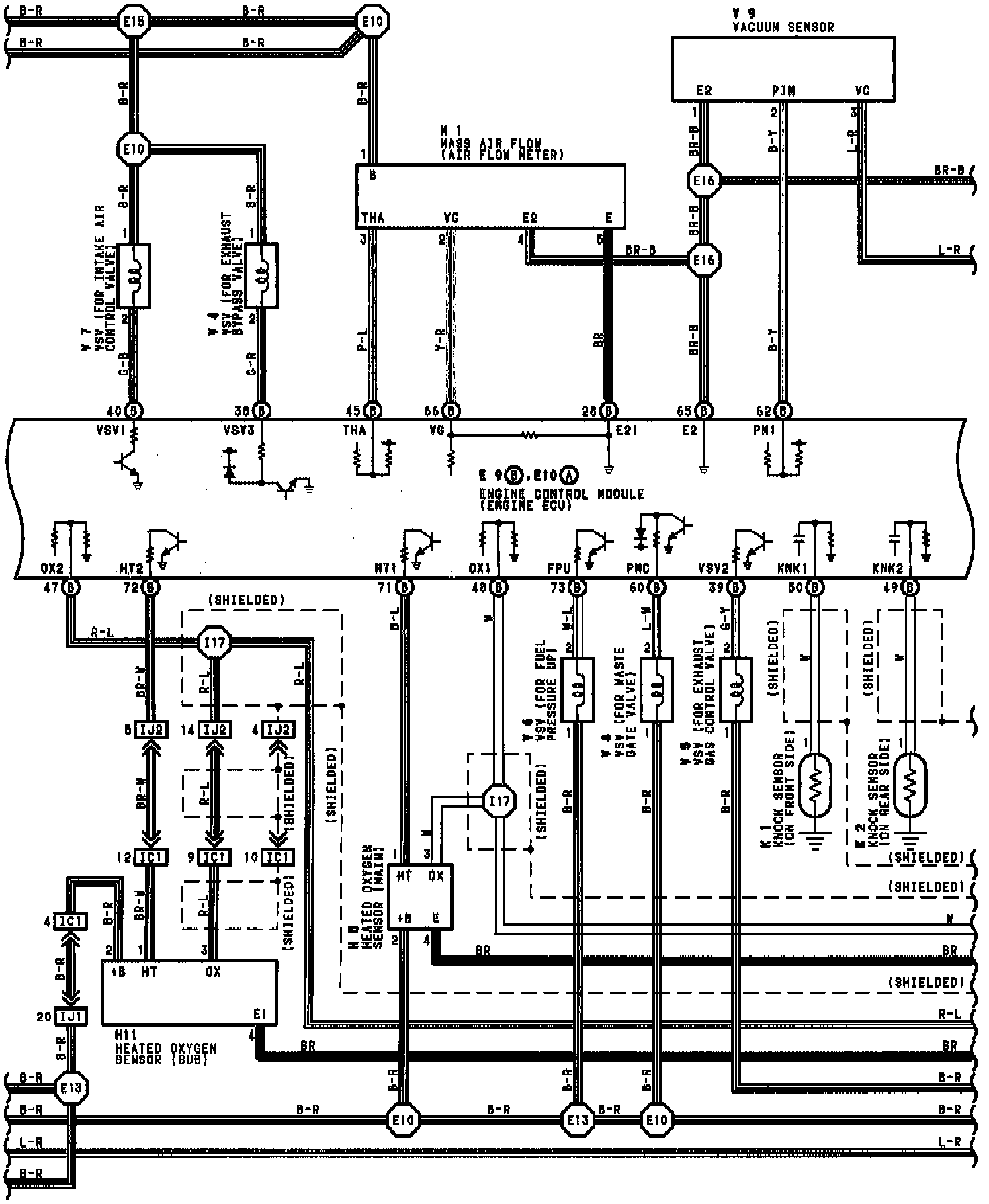

Engine Control Wiring Diagram (2JZ-GTE):

Part 3 of 6

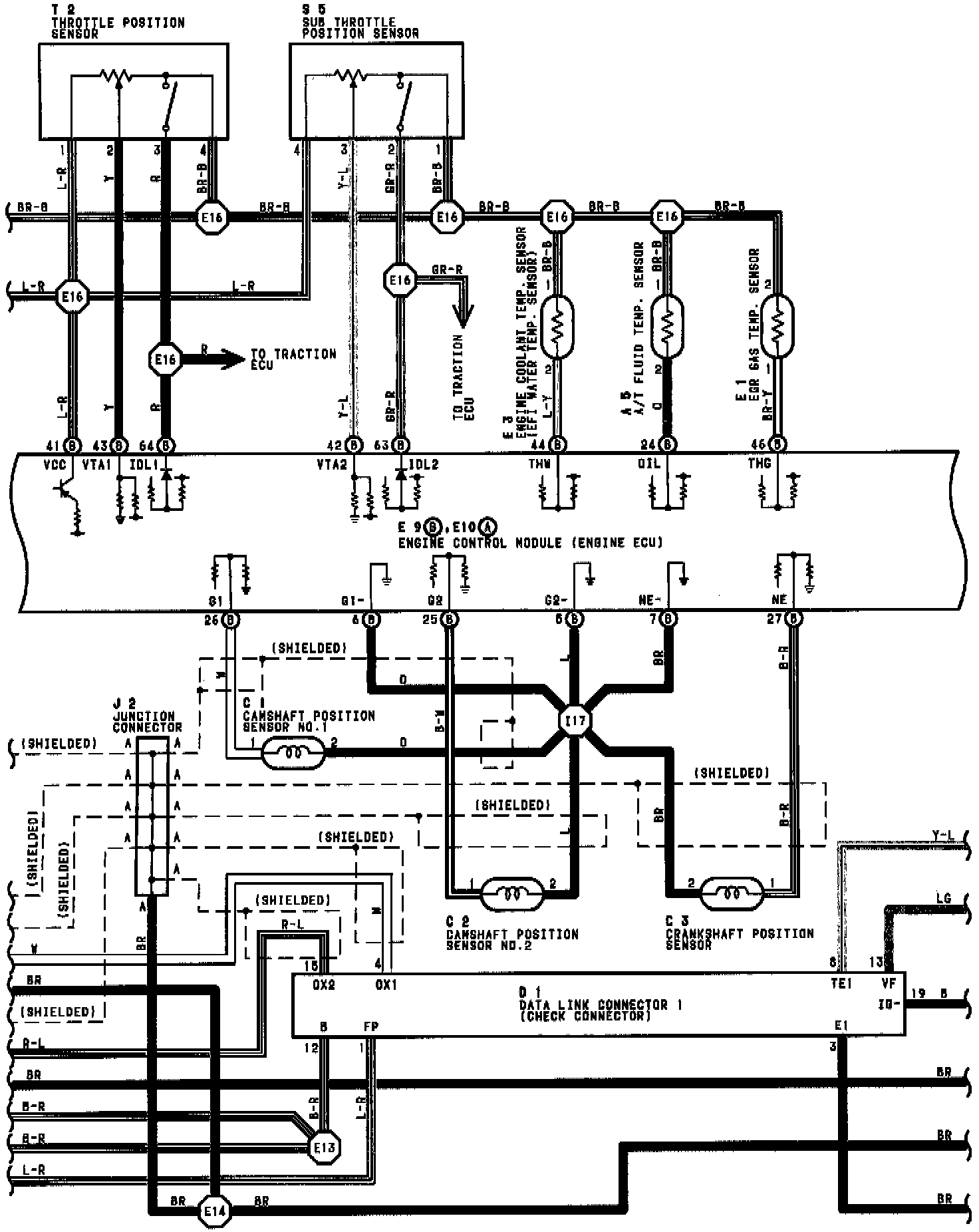

Engine Control Wiring Diagram (2JZ-GTE):

Part 4 of 6

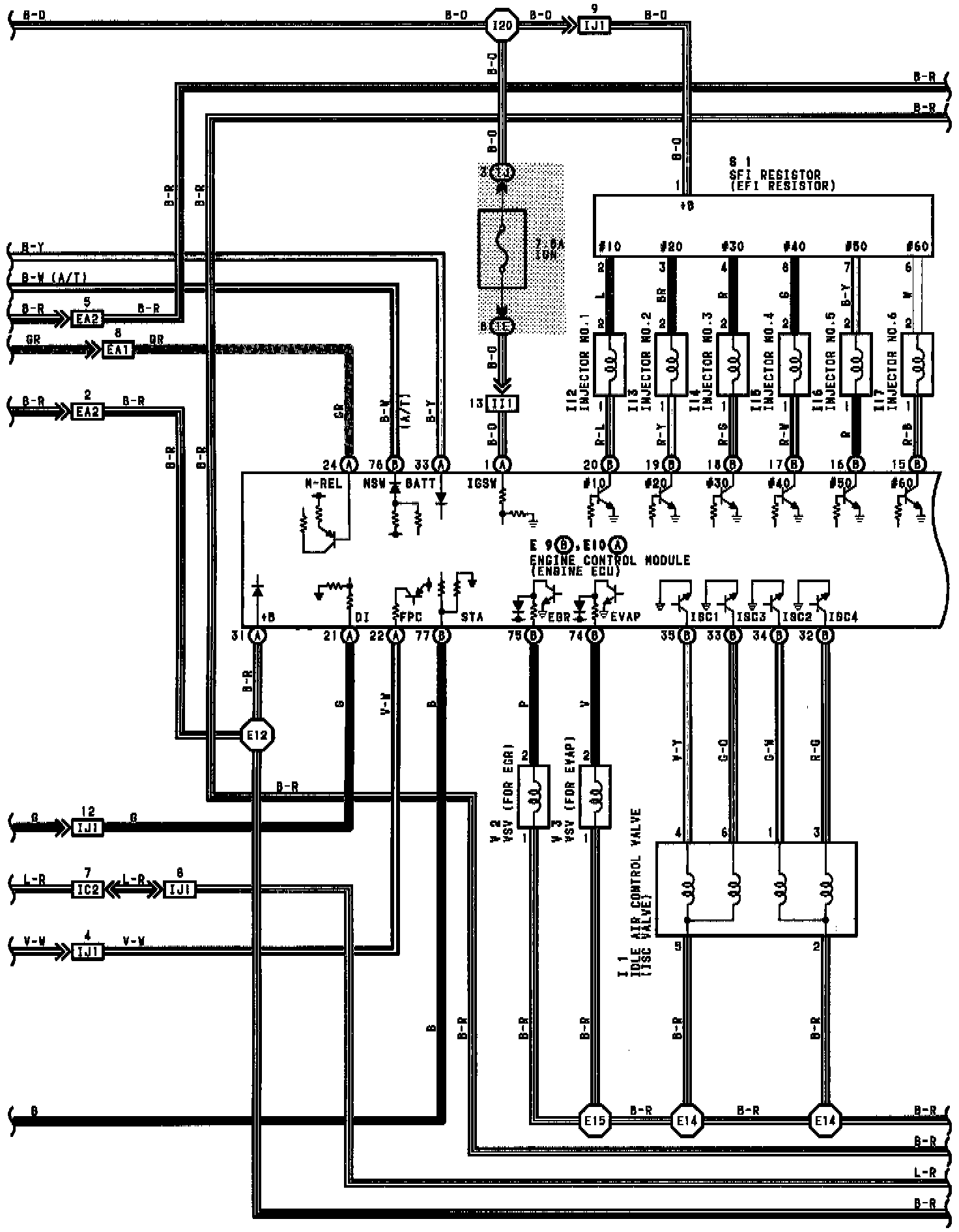

Engine Control Wiring Diagram (2JZ-GTE):

Part 5 of 6

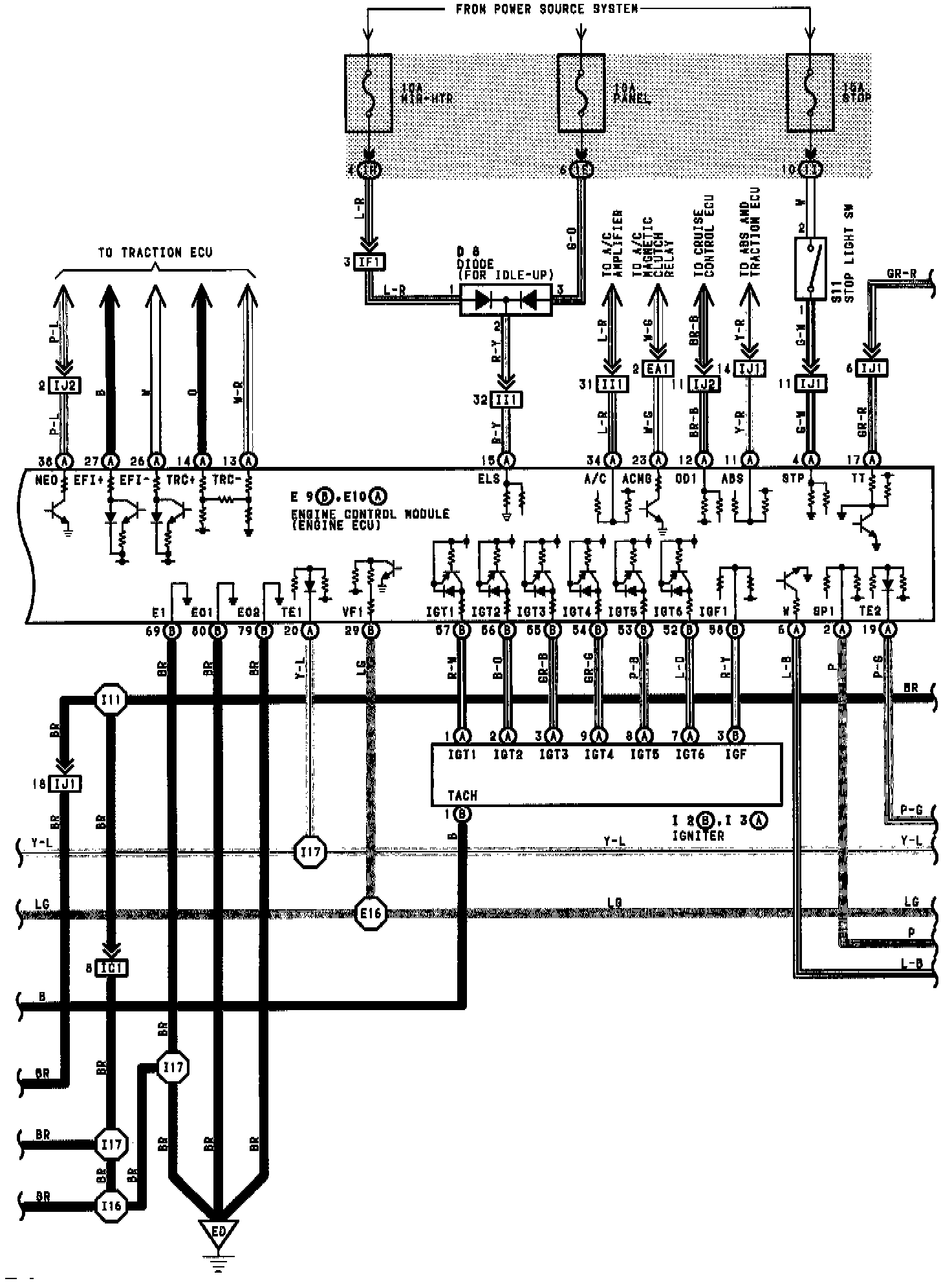

Engine Control Wiring Diagram (2JZ-GTE):

Part 6 of 6

Engine Control Connectors

Engine Control Connectors - A5 thru I19:

A5 thru I19

Engine Control Connectors - J2 thru V10:

J2 thru V10
