Rear

Fig. 11 Rear Camber & Toe-in Adjustment Chart.:

1. Measure length of lower suspension arm No. 1 and No. 2 as shown in Fig. 10.
2. If (E-F) or (F-E) is greater than 4 mm, length of arms must be adjusted by turning adjusting cam(s).
3. Measure camber and toe-in, then plot measurements on adjustment chart, Fig. 11.

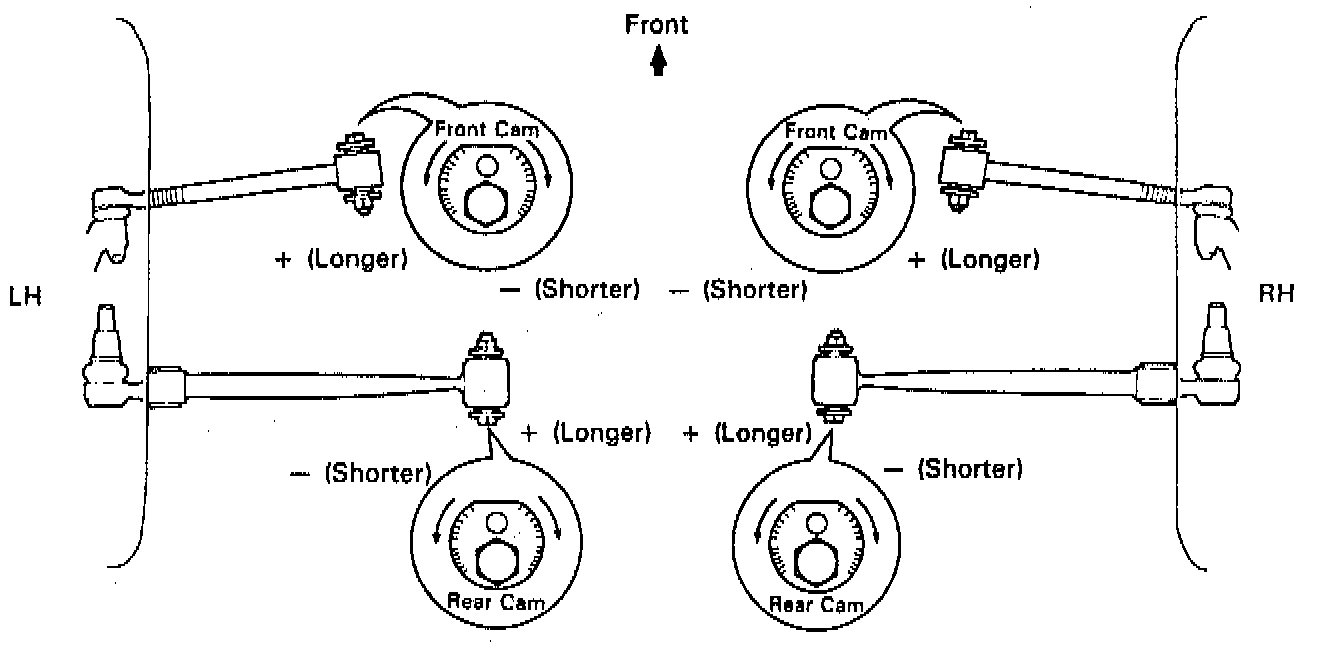

4. Read from chart the amounts to turn adjusting cams, Fig. 12.
