Engine Compartment

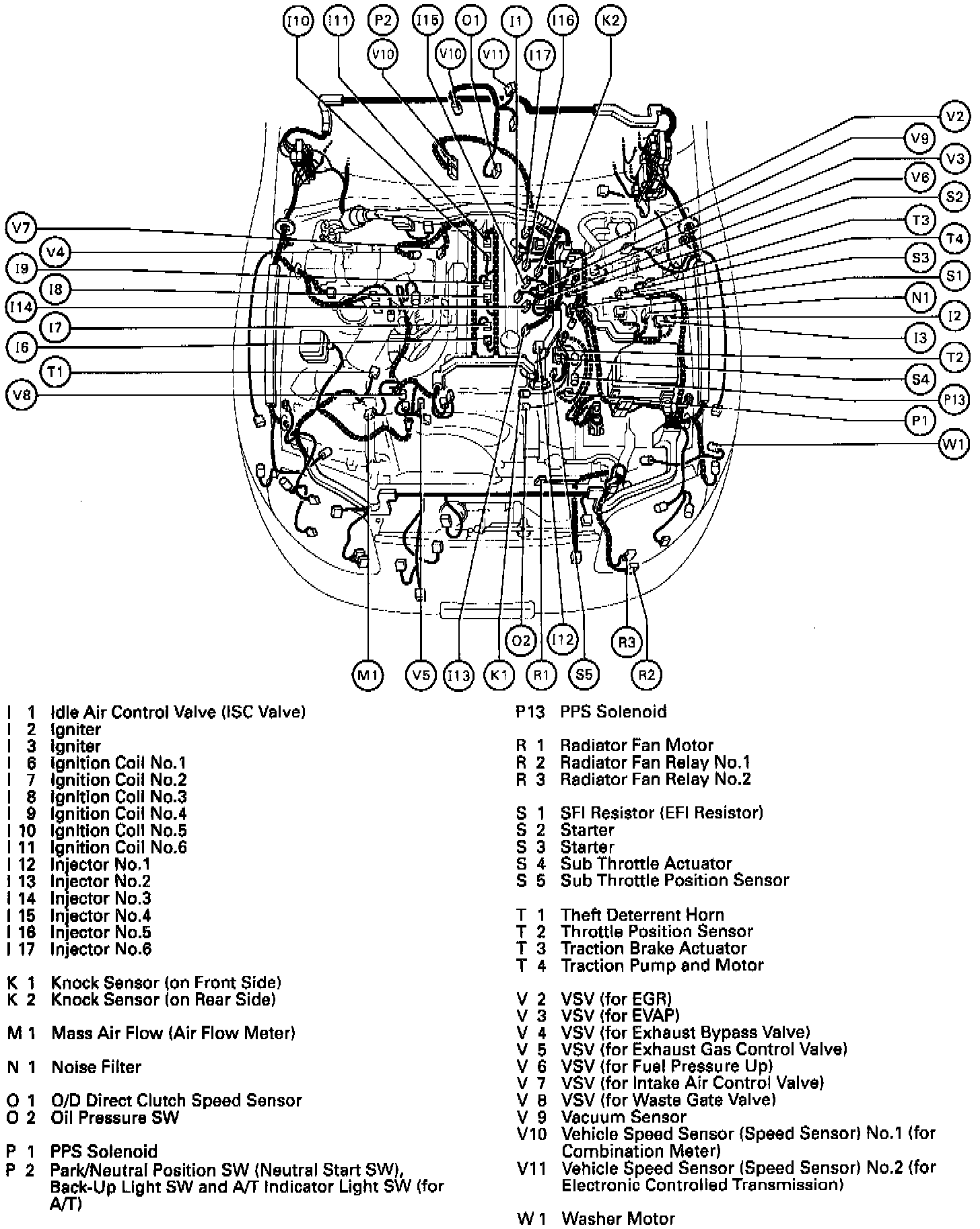

Engine Compartment Electrical Wiring Routing 2JZ-GTE:

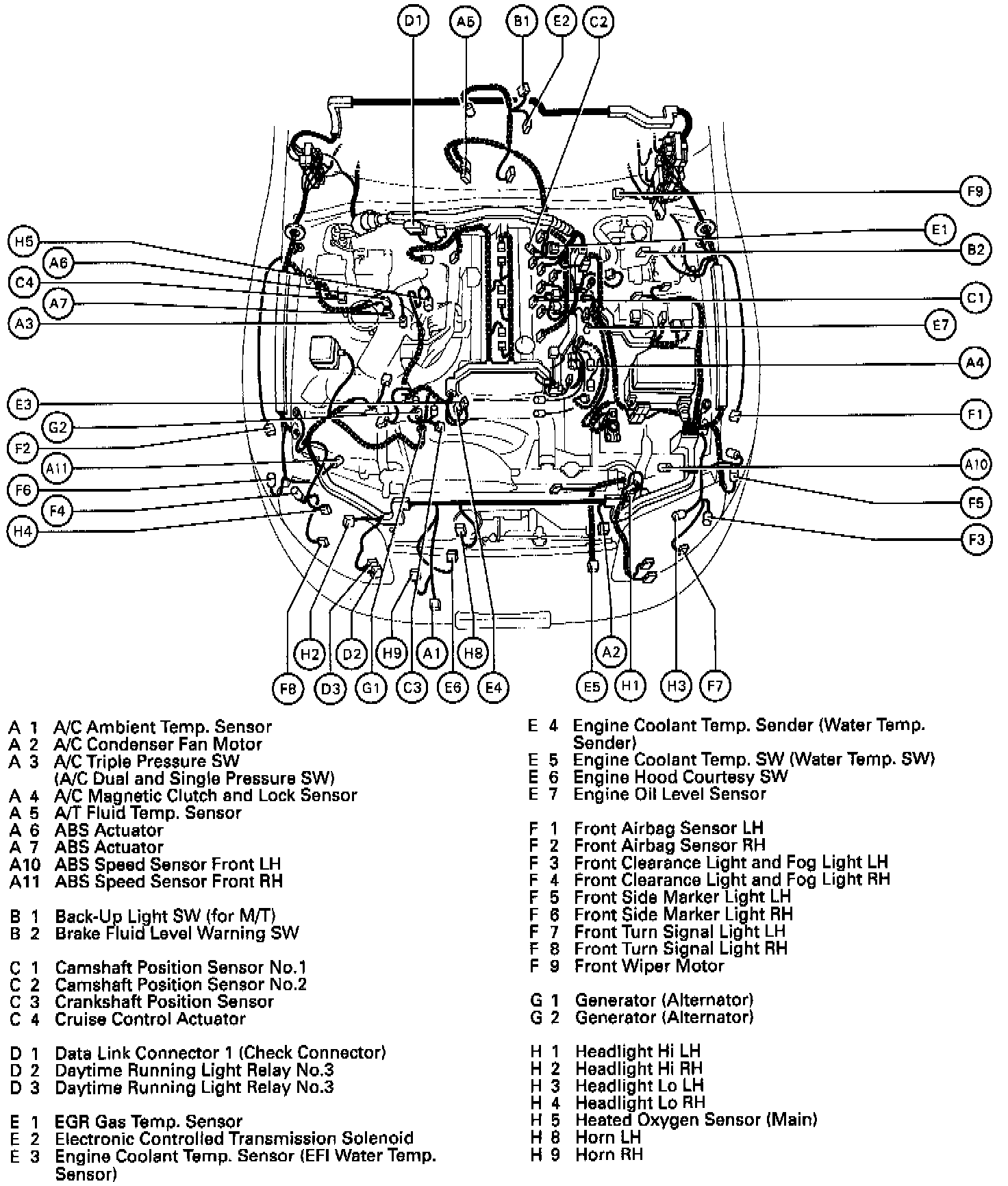

Engine Compartment Electrical Wiring Routing 2JZ-GTE:
