Home >> Toyota >> 1994 >> Supra L6-183 2997cc 3.0L DOHC Turbo (2JZ-GTE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Without Amplifier

Without Amplifier

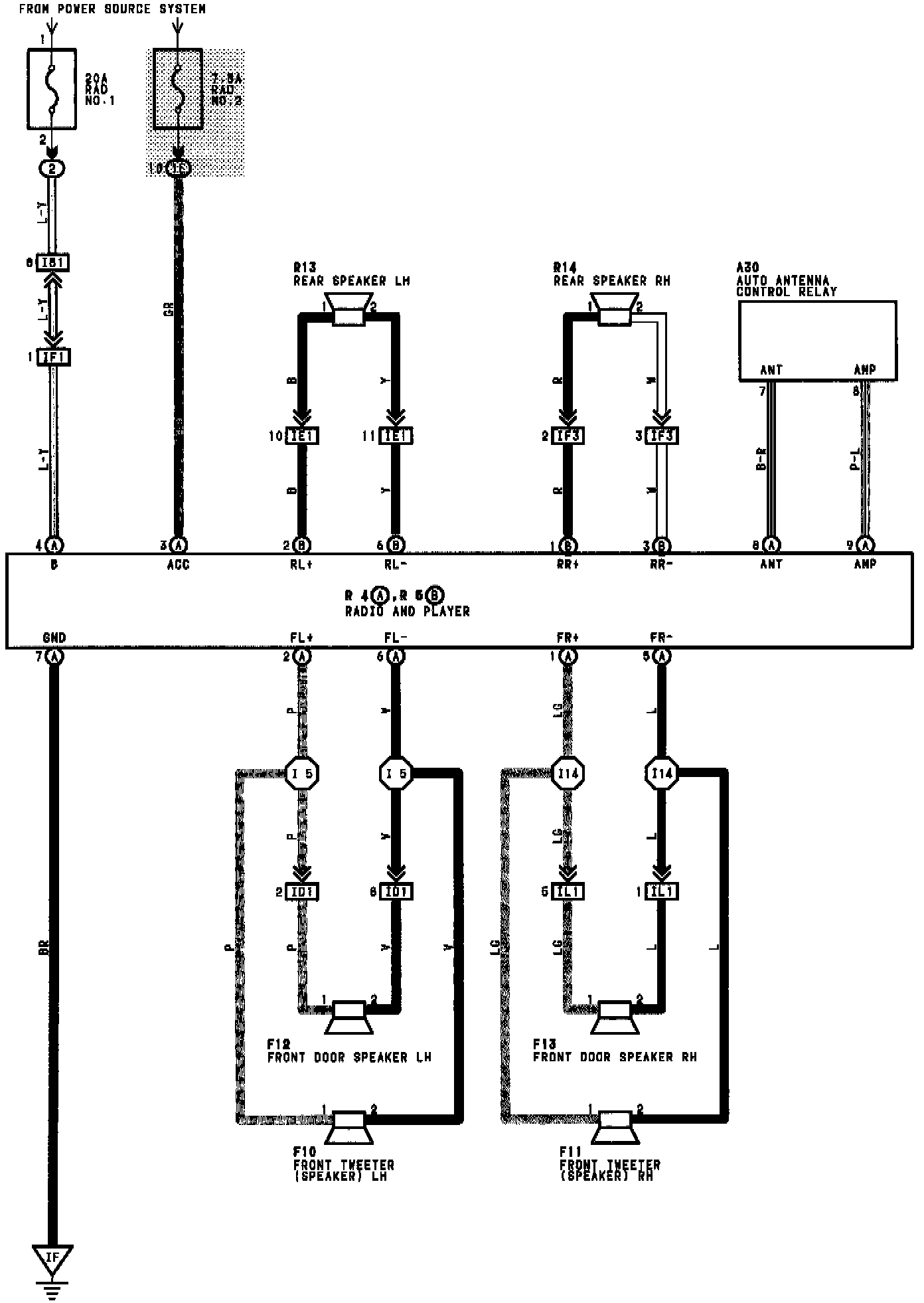

Radio And Player (W/o Stereo Power Amplifier) Wiring Diagram:
