Antilock Brake System (ABS)

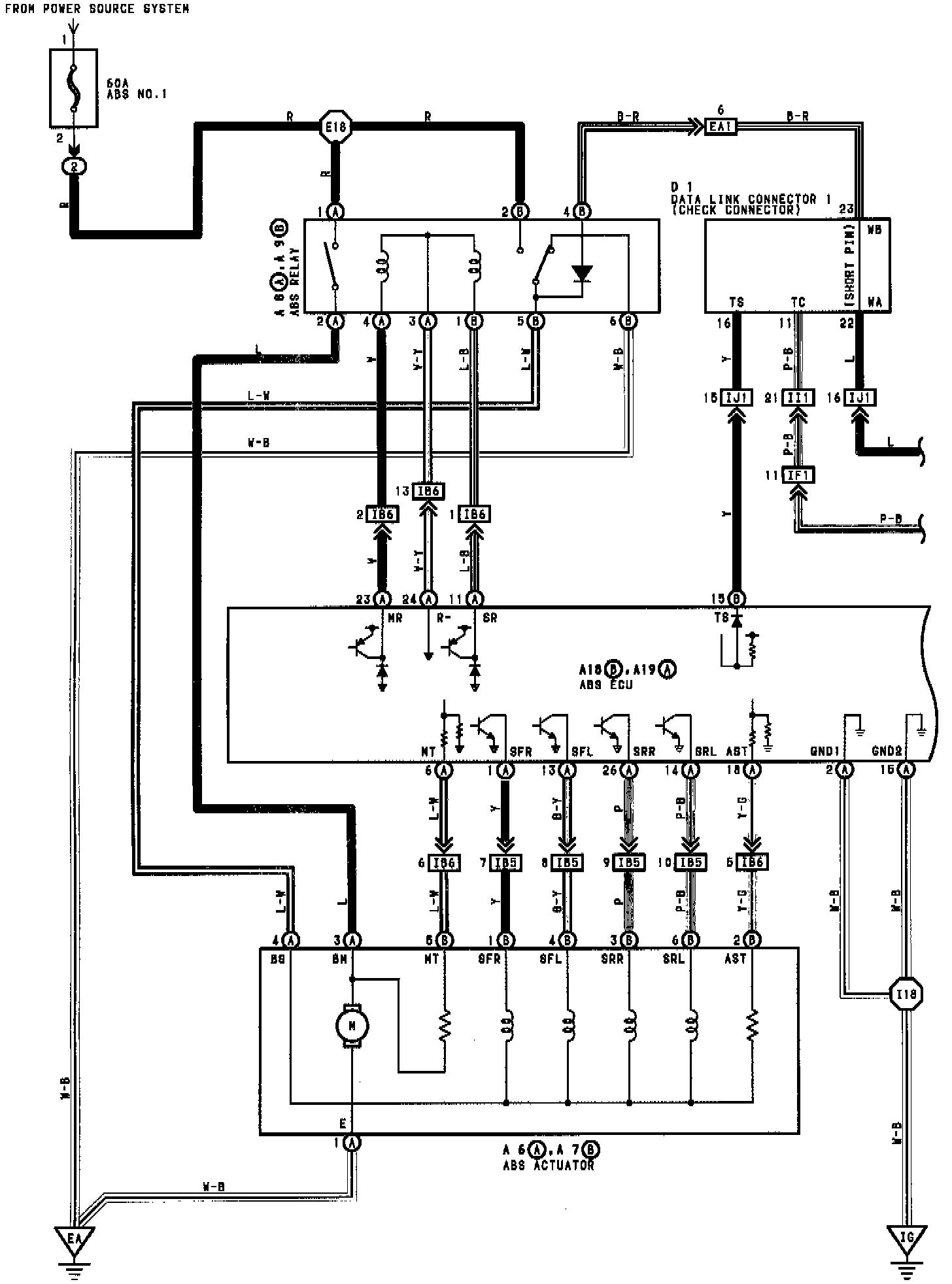

ABS (Anti-Lock Brake System) Wiring Diagram:

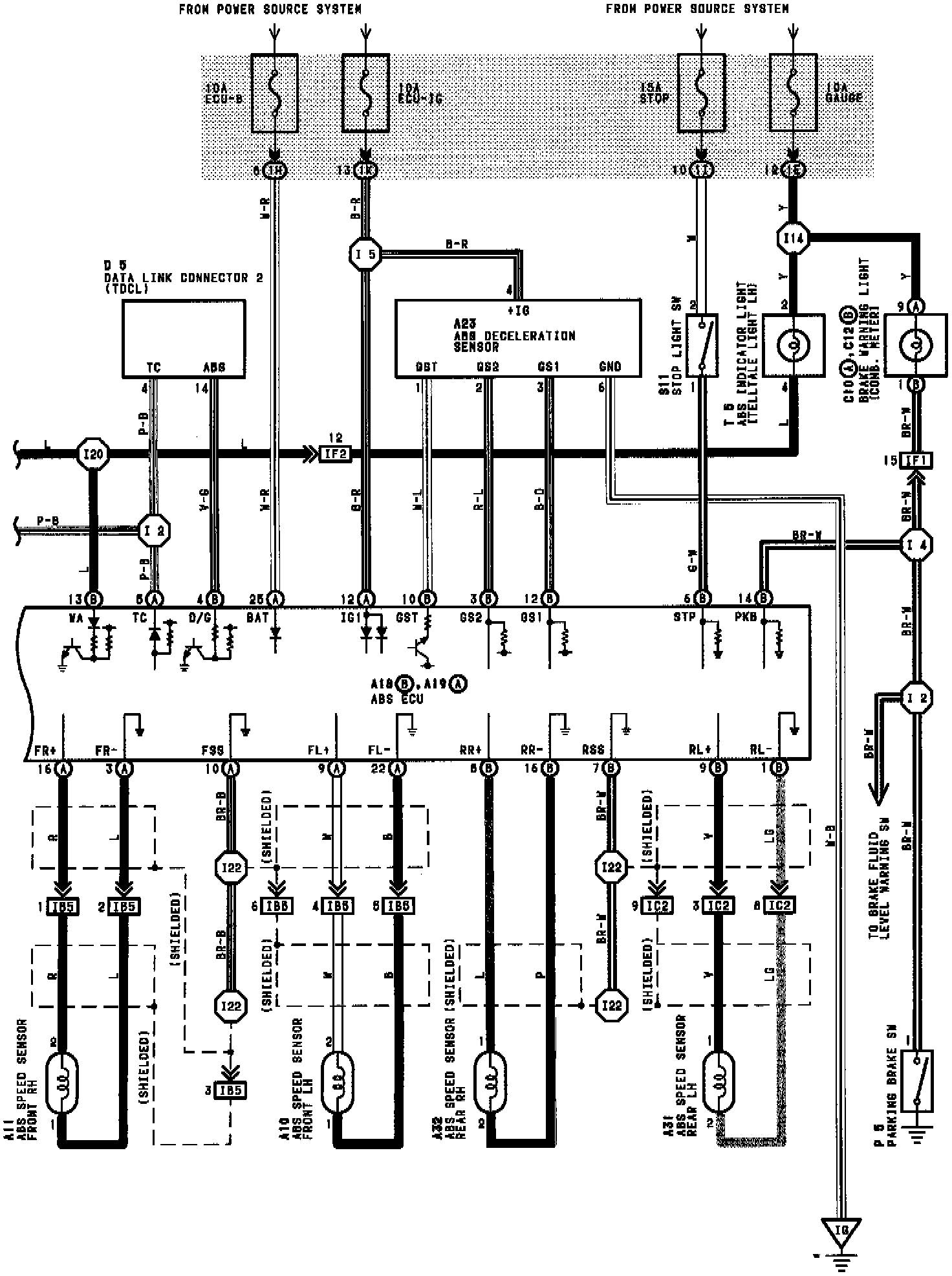

ABS (Anti-Lock Brake System) Wiring Diagram:
